Skia compositor for WPE WebKit and WebKitGTK

Posted on by
Reply

WPE WebKit and WebKitGTK 2.54 have been released with a bunch of improvements and new APIs as usual, but there’s one point that kept the Igalia WebKit graphics team busy for the whole cycle: the new Skia-based compositor. The replacement of Cairo with Skia for content rendering has been a success and it’s already well integrated and optimized. We thought we could try to use Skia for the composition too and replace TextureMapper with Skia. TextureMapper was introduced in 2010 for the Qt port and later adopted by other ports. It uses the OpenGL ES API and maintains a collection of shader programs to paint different content. Nowadays TextureMapper is mostly the same code and shader programs, and it’s unmaintained and missing features. However, the performance was good and it has served us really well all these years. So, this time the goal was not to get better results in benchmarks, but to modernize the implementation, reduce the amount of code to maintain ourselves (like all shader programs) and make it easier to implement the missing features and fix existing bugs. This post is a summary of all the work we have done this cycle to implement the new Skia compositor.

SkiaCompositingLayer

The first step was adding an SkiaCompositingLayer class to replace TextureMapperLayer and adapt all the code to use one or the other depending on an environment variable. The initial implementation was based on the TextureMapper one for the things that are common like iterating the layer tree, computing transformations, etc. The way layers produced their contents didn’t change, so we were receiving textures for tiled content, video buffers, WebGL, accelerated 2D canvas, etc. SkiaCompositingLayer created a Ganesh Skia surface to draw those textures using SkCanvas::drawImageRect(). This initial implementation was enough to run the default MotionMark test suite, since it doesn’t use other composition features. Even though performance was not the goal, we had to make sure we didn’t regress. This initial implementation was neutral in MotionMark. We needed tests to implement those features and measure performance at the same time, so we decided to add a new set of tests to MotionMark, just extending the existing tests to require composition, which makes sure that filters, masks, path clipping, transformations, etc. were done by the compositor.

Filters

We first tried implementing filters using an intermediate surface like TextureMapper does. It worked, but the MotionMark score in the filters test was much worse. We realized that with Skia we could implement most of the filters without using an intermediate surface. All filter types except blur and drop shadow can be simplified to an SkColorFilter with SkImageFilter::asAColorFilter() which can be implemented without an intermediate surface, just by setting the color filter in the SkPaint we pass to SkCanvas::drawImageRect(). This not only fixed the performance regression, but also gave better results than TextureMapper, which always needs an intermediate surface.

Masks

There are two different kinds of masks: image mask, where the source mask is an image already, and clip path, where the mask is represented by a path to be clipped. In TextureMapper both are implemented the same way using intermediate surfaces. The mask is painted into a surface and then the masked layer creates an intermediate surface where its contents are first painted and then the mask contents on top using DstIn blend mode. Skia has APIs that allowed us to implement both cases in a much simpler and more efficient way. In the case of image masks, where we already have an image, we paint the mask contents once and keep it cached, and then the masked layer creates an SkShader for the image mask that is passed to SkCanvas::clipShader() without having to paint into an intermediate surface. Clip path masks are even easier, because we can just take the path we get and build an SkPath we can pass to SkCanvas::clipPath(), without having to paint the mask as an image at all or use any other intermediate surface. Once again, masks were not only easier to implement but they ended up being more performant too.

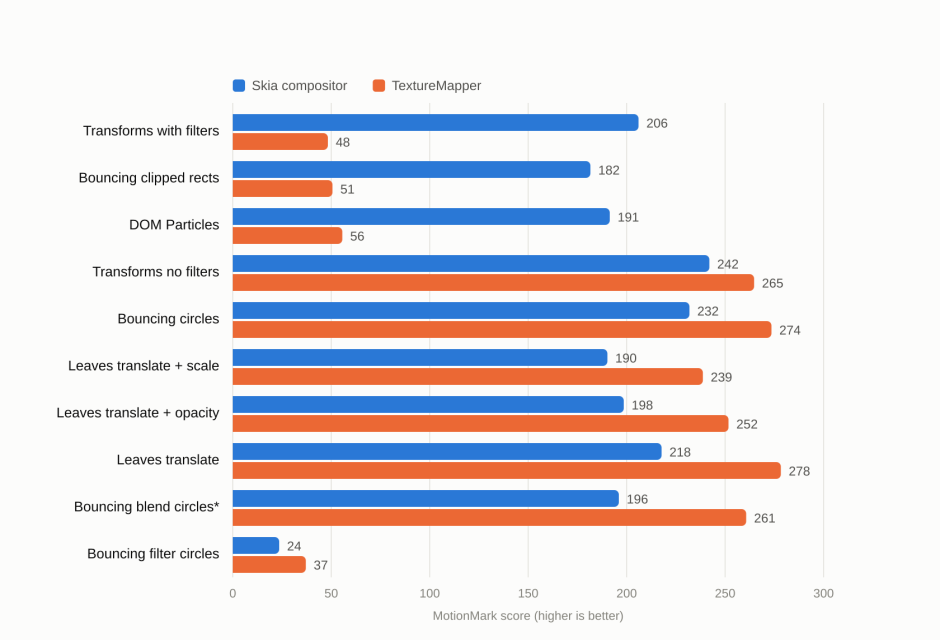

Grouped bar chart of ten MotionMark composition subtests, comparing TextureMapper with the Skia compositor. Filters, clipping and mask tests are three to four times faster with Skia; the three leaves tests are about 20% slower.
MotionMark composition suite, WPE with GPU rendering on a Raspberry Pi 4, comparing TextureMapper (312400@main) with the Skia compositor (313600@main). TextureMapper never implemented blend modes, so its high score on bouncing blend circles is the score for not doing the work.

3D contexts

The implementation of 3D layer contexts is fairly independent of TextureMapper and OpenGL, so we could just take it almost as it was, using SkPath to build the clips and a few other adaptations. We could also fix existing bugs like the z-ordering that has always been broken in TextureMapper.

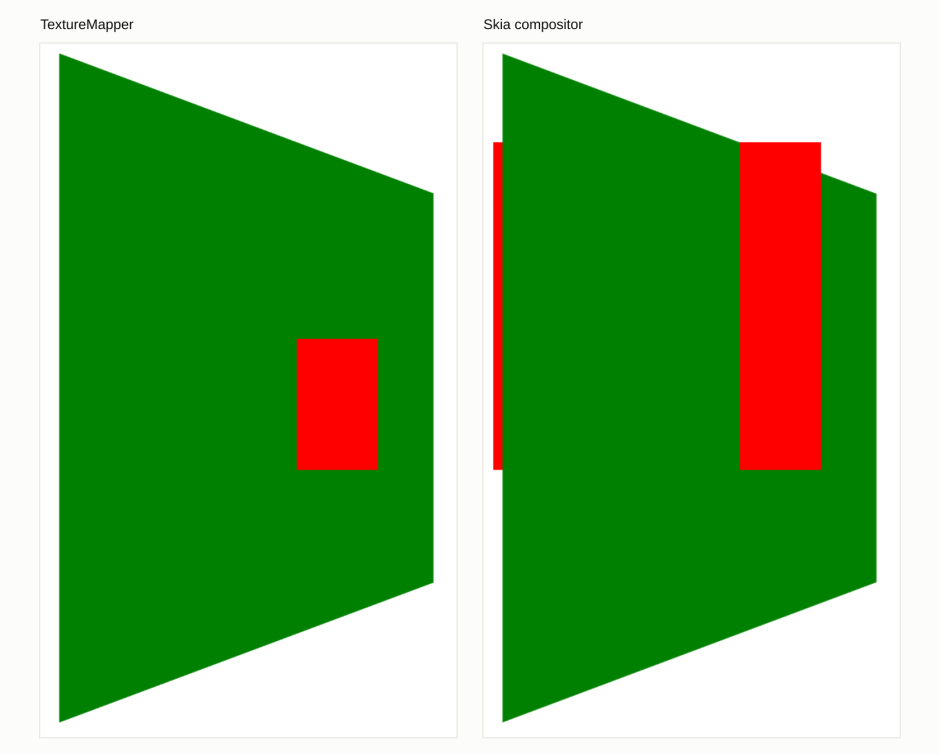

Two screenshots side by side of the same page. Under TextureMapper a small red box sits flat on top of a green plane rotated in 3D. Under the Skia compositor the red box is much taller and is cut by the plane: a sliver shows past the left edge, the middle is hidden behind the plane, and the right part is drawn in front of it.
The same page rendered by TextureMapper (left) and by the Skia compositor (right), WPE on the same build. The red box intersects the rotated green plane. TextureMapper draws the box flat against the plane, so the intersection is lost; the Skia compositor splits it, drawing the part in front of the plane and hiding the part behind it.

Blend modes

TextureMapper never supported blend modes and they were easy to implement with Skia just using the SkPaint property for it. This made several layout tests start passing.

Batched painting

After implementing all the features we were at a point in which we had the same or better performance in all tests except for three MotionMark compositing tests that were giving much worse results. Those tests use small layers and give a high result which means we end up adding a lot of layers to the scene before we start skipping frames. The root cause was the large number of layers filling the command queue of Ganesh. Skia Ganesh queues the GL drawing operations instead of sending them to the GPU right away. When the surface is flushed for whatever reason, the queued GL drawing operations are then processed and sent to the GPU. This allows Skia to apply nice optimizations like merging several tasks and reducing the amount of draw operations we end up sending to the GPU. In those tests where a lot of layers are created and painted to the compositor Skia surface the internal command queue ends up being huge too. Processing and analyzing such a long queue to optimize what we send to the GPU required more CPU work than what we save by optimizing the GL draw operations. Skia provides an API that allows us to do the batching ourselves. Since the compositor already has information to decide what operations could be merged together, we could reduce the internal queue size in many cases. We can merge SkCanvas::drawImageRect() operations as long as they share the same color filter, blend modes and sampling options. In the best case scenario we could reduce the whole internal queue to just one operation. This time the change improved the results of those tests getting them to about 93% of the TextureMapper score, but still a bit behind.

Promise images

The Skia Ganesh backend requires that an SkImage backed by a texture is created for the current thread GrDirectContext, even if it’s borrowing an existing texture. In WebKit all textures are created with a sharing GL context so that they can be accessed and destroyed from different threads with the same sharing GL context. So, for a layer whose content is an image we had to create a texture in the compositing thread to upload the pixels if the image was not accelerated, or for accelerated images get the texture identifier of the image, and then create another SkImage from the compositing thread borrowing the texture for the current GrDirectContext. The Skia Ganesh backend provides an API to create promise images, which can be created from any thread but targeting a specific thread, providing a fulfill callback that will be called on the target thread when the SkImage is first used to retrieve the wrapped texture. This way we can create the SkImage from the main thread for the compositing thread without using OpenGL at creation time. For non-accelerated images we realized we don’t need to manually create the texture and upload the pixels in the compositor, we can just pass the unaccelerated SkImage to the compositor SkCanvas and Skia will handle it internally much more efficiently than we did. And this change improved those compositing tests much further than we expected. The reason turned out to be the batching from the previous section: Skia merges the entries of an image set by comparing texture proxy pointers, and until now we were wrapping the texture in a new SkImage on every frame for every layer, so hundreds of layers drawing the very same image produced hundreds of different proxies that Skia could not merge. Passing the same SkImage every time collapses all of them into a single draw operation, which is the best case we described above. With batched painting and promise images together we could beat TextureMapper significantly.

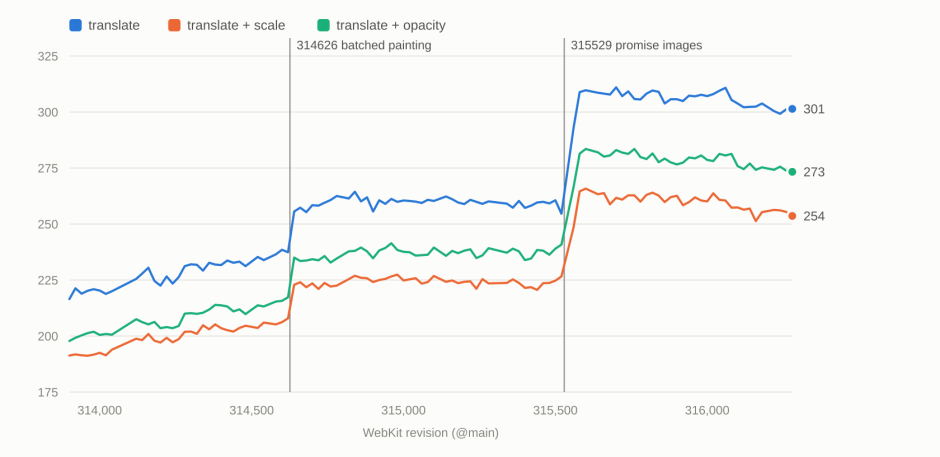

Line chart of the three MotionMark leaves subtests by WebKit revision. All three step up sharply at revision 314626 when batched painting landed, and again at revision 315529 when promise images landed.
MotionMark composition suite, leaves subtests, WPE with GPU rendering. Score per revision; higher is better. The same two steps appear with CPU rendering.

Deferred Display Lists (DDL)

When we switched to Skia for painting, we kept the threaded rendering model, just using a separate smaller queue for GPU rendering workers. The GPU workers created their own GrDirectContext to paint the layer tiles. The resulting textures were re-wrapped in the compositing thread for the compositor GrDirectContext using fences for the proper synchronization. We knew this was not the recommended way to use Skia Ganesh from multiple threads, but with TextureMapper we had no other option. However, with the Skia compositor we can do it the recommended way by using a single GrDirectContext in the compositing thread and use Deferred Display Lists (DDL) and promise images to paint the tiles. With DDL, GPU workers no longer use GL at all and they don’t need a GrDirectContext, they paint tiles into a display list that records the GL drawing operations, but without touching GL. For image drawing operations recorded into the DDL, promise images are used too. Since this is now all CPU work we can remove the smaller GPU worker queue and use a single queue with more workers. The compositor replays the DDL into an SkSurface that is then passed to the compositor SkCanvas.

This change fixed rendering glitches on Android and was performance neutral for the whole composition suite and for most of the MotionMark tests, but in MotionMark 1.3 at 15fps it cost 29% in Suits and 14% in Leaves, while improving Images by 9%. Correctness and the other benefits of DDL made us accept those regressions.

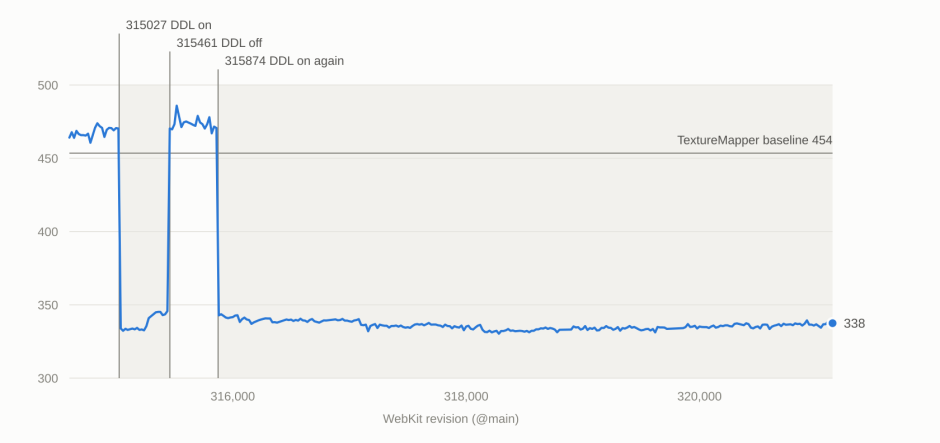

Line chart of the MotionMark suits score by WebKit revision. The score drops from about 470 to about 335 when deferred display lists are enabled, returns to 470 when they are disabled, and drops again when they are re-enabled, staying there.
MotionMark 1.3 at 15fps, suits subtest, WPE with GPU rendering on a Raspberry Pi 4. Shaded regions are where deferred display lists were enabled by default. CPU rendering moves less than 1% at all three switches, since it has no GPU worker threads for DDL to change.

Damage

TextureMapper already supported using damage information to optimize the painting while compositing, but it has always been disabled at run time because there were issues we never managed to fix. With the Skia compositor we decided to start from scratch and properly handle the damage information while compositing to render only the parts of the frame that actually changed. I’m not going to go into detail here because Nikolas Zimmermann has written an amazing blog post about it with all the details.

Current situation

The Skia compositor is finished and enabled by default in 2.54. Even though it was not the main goal, it performs better than TextureMapper in most of the benchmarks we run: the composition suite we added is 45% faster, and MotionMark 1.3.1 is 35% faster. The exception is MotionMark 1.3 at 15fps with GPU rendering, which comes out flat, because the Suits and Leaves tests are still about 26% and 10% behind due to the deferred display lists trade-off described above.

We are already working on fixing existing issues in composition that we never fixed in TextureMapper. In the main branch TextureMapper is now disabled by default at build time, and support will be removed soon for the GTK and WPE ports. In 2.54 it’s still a run-time decision so if you find any issue with 2.54, you can check if it’s a Skia compositor regression by trying TextureMapper with WEBKIT_USE_SKIA_FOR_COMPOSITION=0 environment variable.

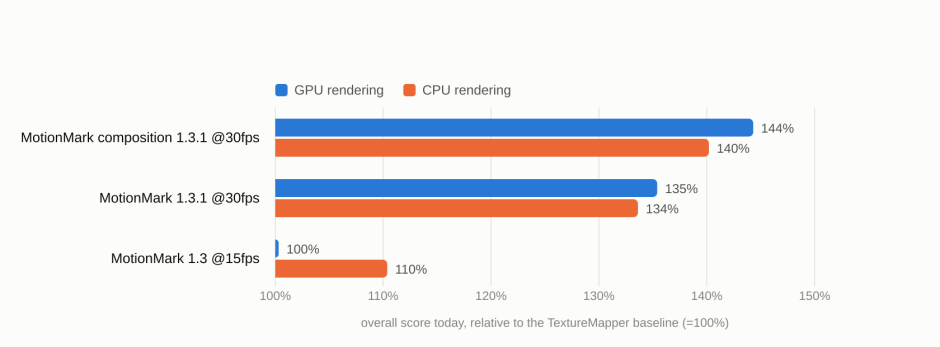

Bar chart of overall benchmark scores today relative to the TextureMapper baseline. The composition suite is 45% ahead with GPU rendering, MotionMark 1.3.1 is 35% ahead, and MotionMark 1.3 at 15fps is level with GPU rendering and 10% ahead with CPU rendering.
Overall (geometric mean) score, WPE on a Raspberry Pi 4: 320000@main and later against the TextureMapper baseline at 312400-313296@main. Bars start at the baseline. Part of the gain in the MotionMark suites is Skia rendering work rather than the compositor.

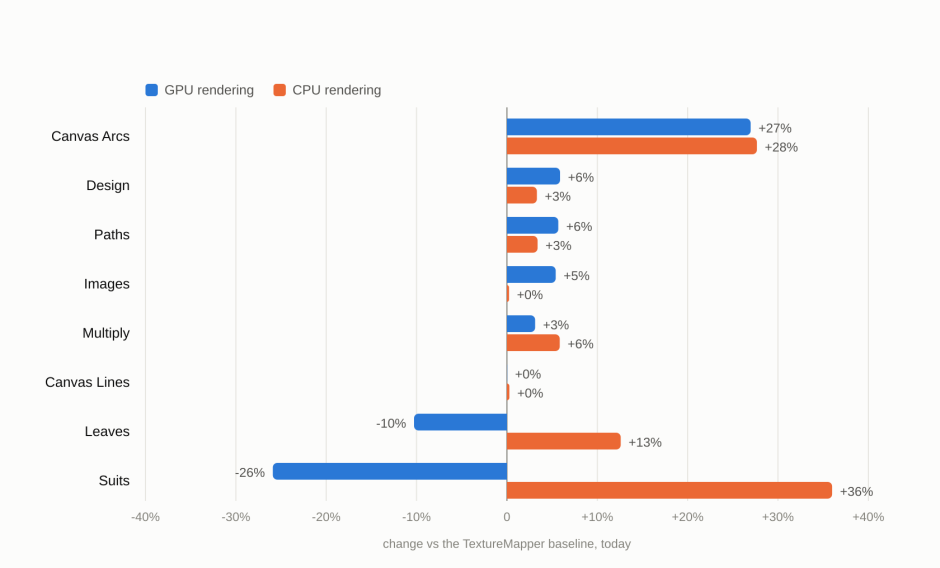

Bar chart of MotionMark 1.3 at 15fps subtests, showing the change from the TextureMapper baseline to today. Suits is 26% behind and leaves 10% behind with GPU rendering, while both are well ahead with CPU rendering; every other subtest is level or ahead.
WPE on a Raspberry Pi 4, change from the TextureMapper baseline (312400-313296@main) to 320000@main and later. Suits and leaves are the deferred display lists trade-off, not the compositor switch, which was neutral in this suite.

Future plans

We are already working on further improvements like using promise images for all external textures we have to pass to the compositor. We will explore the possibility of using Vulkan with the Ganesh backend instead of GL and eventually try the new Graphite backend. And of course we will continue fixing any existing issues related to the compositor.

Graphics improvements in WebKitGTK and WPEWebKit after the switch to Skia

Posted on by
Reply

In my previous post, when I introduced the switch to Skia for 2D rendering, I explained that we replaced Cairo with Skia keeping mostly the same architecture. This alone was an important improvement in performance, but still the graphics implementation was designed for Cairo and CPU rendering. Once we considered the switch to Skia as stable, we started to work on changes to take more advantage of Skia and GPU rendering to improve the performance even more. In this post I’m going to present some of those improvements and other not directly related to Skia and GPU rendering.

Explicit fence support

This is related to the DMA-BUF renderer used by the GTK port and WPE when using the new API. The composited buffer is shared as a DMA-BUF between the web and UI processes. Once the web process finished the composition we created a fence and waited for it, to make sure that when the UI process was notified that the composition was done the buffer was actually ready. This approach was safe, but slow. In 281640@main we introduced support for explicit fencing to the WPE port. When possible, an exportable fence is created, so that instead of waiting for it immediately, we export it as a file descriptor that is sent to the UI process as part of the message that notifies that a new frame has been composited. This unblocks the web process as soon as composition is done. When supported by the platform, for example in WPE under Wayland when the zwp_linux_explicit_synchronization_v1 protocol is available, the fence file descriptor is passed to the platform implementation. Otherwise, the UI process asynchronously waits for the fence by polling the file descriptor before passing the buffer to the platform. This is what we always do in the GTK port since 281744@main. This change improved the score of all MotionMark tests, see for example multiply.

Enable MSAA when available

In 282223@main we enabled the support for MSAA when possible in the WPE port only, because this is more important for embedded devices where we use 4 samples providing good enough quality with a better performance. This change improved the Motion Mark tests that use 2D canvas like canvas arcs, paths and canvas lines. You can see here the change in paths when run in a RaspberryPi 4 with WPE 64 bits.

Avoid textures copies in accelerated 2D canvas

As I also explained in the previous post, when 2D canvas is accelerated we now use a dedicated layer that renders into a texture that is copied to be passed to the compositor. In 283460@main we changed the implementation to use a CoordinatedPlatformLayerBufferNativeImage to handle the canvas texture and avoid the copy, directly passing the texture to the compositor. This improved the MotionMark tests that use 2D canvas. See canvas arcs, for example.

Introduce threaded GPU painting mode

In the initial implementation of the GPU rendering mode, layers were painted in the main thread. In 287060@main we moved the rendering task to a dedicated thread when using the GPU, with the same threaded rendering architecture we have always used for CPU rendering, but limited to 1 worker thread. This improved the performance of several MotionMark tests like images, suits and multiply. See images.

Update default GPU thread settings

Parallelization is not so important for GPU rendering compared to CPU, but still we realized that we got better results by increasing a bit the amount of worker threads when doing GPU rendering. In 290781@main we increased the limit of GPU worker threads to 2 for systems with at least 4 CPU cores. This improved mainly images and suits in MotionMark. See suits.

Hybrid threaded CPU+GPU rendering mode

We had either GPU or CPU worker threads for layer rendering. In systems with 4 CPU cores or more we now have 2 GPU worker threads. When those 2 threads are busy rendering, why not using the CPU to render other pending tiles? And the same applies when doing CPU rendering, when all workers are busy, could we use the GPU to render other pending tasks? We tried and turned out to be a good idea, especially in embedded devices. In 291106@main we introduced the hybrid mode, giving priority to GPU or CPU workers depending on the default rendering mode, and also taking into account special cases like on HiDPI, where we are always scaling, and we always prefer the GPU. This improved multiply, images and suits. See images.

Use Skia API for display list implementation

When rendering with Cairo and threaded rendering enabled we use our own implementation of display lists specific to Cairo. When switching to Skia we thought it was a good idea to use the WebCore display list implementation instead, since it’s cross-platform implementation shared with other ports. But we realized this implementation is not yet ready to support multiple threads, because it holds references to WebCore objects that are not thread safe. Main thread might change those objects before they have been processed by painting threads. So, we decided to try to use the Skia API (SkPicture) that supports recording in the main thread and replaying from worker threads. In 292639@main we replaced the WebCore display list usage by SkPicture. This was expected to be a neutral change in terms of performance but it surprisingly improved several MotionMark tests like leaves, multiply and suits. See leaves.

Use Damage to track the dirty region of GraphicsLayer

Every time there’s a change in a GraphicsLayer and it needs to be repainted, it’s notified and the area that changed is included so that we only render the parts of the layer that changed. That’s what we call the layer dirty region. It can happen that when there are many small updates in a layer we end up with lots of dirty regions on every layer flush. We used to have a limit of 32 dirty regions per layer, so that when more than 32 are added we just united them into the first dirty area. This limit was removed because we always unite the dirty areas for the same tiles when processing the updates to prepare the rendering tasks. However, we also tried to avoid handling the same dirty region twice, so every time a new dirty region was added we iterated the existing regions to check if it was already present. Without the 32 regions limit that means we ended up iterating a potentially very long list on every dirty region addition. The damage propagation feature uses a Damage class to efficiently handle dirty regions, so we thought we could reuse it to track the layer dirty region, bringing back the limit but uniting in a more efficient way than using always the first dirty area of the list. It also allowed to remove check for duplicated area in the list. This change was added in 292747@main and improved the performance of MotionMark leaves and multiply tests. See leaves.

Record all dirty tiles of a layer once

After the switch to use SkPicture for the display list implementation, we realized that this API would also allow to record the graphics layer once, using the bounding box of the dirty region, and then replay multiple times on worker threads for every dirty tile. Recording can be a very heavy operation, specially when there are shadows or filters, and it was always done for every tile due to the limitations of the previous display list implementation. In 292929@main we introduced the change with improvements in MotionMark leaves and multiply tests. See multiply.

MotionMark results

I’ve shown here the improvements of these changes in some of the MotionMark tests. I have to say that some of those changes also introduced small regressions in other tests, but the global improvement is still noticeable. Here is a table with the scores of all tests before these improvements and current main branch run by WPE MiniBrowser in a RaspberryPi 4 (64bit).

TestScore July 2024Score April 2025
Multiply501.17684.23
Canvas arcs140.24828.05
Canvas lines1613.933086.60
Paths375.524255.65
Leaves319.31470.78
Images162.69267.78
Suits232.91445.80
Design33.7964.06

What’s next?

There’s still quite a lot of room for improvement, so we are already working on other features and exploring ideas to continue improving the performance. Some of those are:

  • Damage tracking: this feature is already present, but disabled by default because it’s still work in progress. We currently use the damage information to only paint the areas of every layer that changed. But then we always compose a whole frame inside WebKit that is passed to the UI process to be presented on screen. It’s possible to use the damage information to improve both, the composition inside WebKit and the presentation of the composited frame on the screen. For more details about this feature read Pawel’s awesome blog post about it.
  • Use DMA-BUF for tile textures to improve pixel transfer operations: We currently use DMA-BUF buffers to share the composited frame between the web and UI process. We are now exploring the idea of using DMA-BUF also for the textures used by the WebKit compositor to generate the frame. This would allow to improve the performance of pixel transfer operations, for example when doing CPU rendering we need to upload the dirty regions from main memory to a compositor texture on every composition. With DMA-BUF backed textures we can map the buffer into main memory and paint with the CPU directly into the mapped buffer.
  • Compositor synchronization: We plan to try to improve the synchronization of the WebKit compositor with the system vblank and the different sources of composition (painted layers, video layers, CSS animations, WebGL, etc.)



Graphics improvements in WebKitGTK and WPEWebKit 2.46

Posted on by
Reply

WebKitGTK and WPEWebKit recently released a new stable version 2.46. This version includes important changes in the graphics implementation.

Skia

The most important change in 2.46 is the introduction of Skia to replace Cairo as the 2D graphics renderer. Skia supports rendering using the GPU, which is now the default, but we also use it for CPU rendering using the same threaded rendering model we had with Cairo. The architecture hasn’t changed much for GPU rendering: we use the same tiled rendering approach, but buffers for dirty regions are rendered in the main thread as textures. The compositor waits for textures to be ready using fences and copies them directly to the compositor texture. This was the simplest approach that already resulted in much better performance, specially in the desktop with more powerful GPUs. In embedded systems, where GPUs are not so powerful, it’s still better to use the CPU with several rendering threads in most of the cases. It’s still too early to announce anything, but we are already experimenting with different models to improve the performance even more and make a better usage of the GPU in embedded devices.

Skia has received several GCC specific optimizations lately, but it’s always more optimized when built with clang. The optimizations are more noticeable in performance when using the CPU for rendering. For this reason, since version 2.46 we recommend to build WebKit with clang for the best performance. GCC is still supported, of course, and performance when built with GCC is quite good too.

HiDPI

Even though there aren’t specific changes about HiDPI in 2.46, users of high resolution screens using a device scale factor bigger than 1 will notice much better performance thanks to scaling being a lot faster on the GPU.

Accelerated canvas

The 2D canvas can be accelerated independently on whether the CPU or the GPU is used for painting layers. In 2.46 there’s a new setting WebKitSettings:enable-2d-canvas-acceleration to control the 2D canvas acceleration. In some embedded devices the combination of CPU rendering for layer tiles and GPU for the canvas gives the best performance. The 2D canvas is normally rendered into an image buffer that is then painted in the layer as an image. We changed that for the accelerated case, so that the canvas is now rendered into a texture that is copied to a compositor texture to be directly composited instead of painted into the layer as an image. In 2.46 the offscreen canvas is enabled by default.

There are more cases where accelerating the canvas is not desired, for example when the canvas size is not big enough it’s faster to use the GPU. Also when there’s going to be many operations to “download” pixels from GPU. Since this is not always easy to predict, in 2.46 we added support for the willReadFrequently canvas setting, so that when set by the application when creating the canvas it causes the canvas to be always unaccelerated.

Filters

All the CSS filters are now implemented using Skia APIs, and accelerated when possible. The most noticeable change here is that sites using blur filters are no longer slow.

Color spaces

Skia brings native support for color spaces, which allows us to greatly simplify the color space handling code in WebKit. WebKit uses color spaces in many scenarios – but especially in case of SVG and filters. In case of some filters, color spaces are necessary as some operations are simpler to perform in linear sRGB. The good example of that is feDiffuseLighting filter – it yielded wrong visual results for a very long time in case of Cairo-based implementation as Cairo doesn’t have a support for color spaces. At some point, however, Cairo-based WebKit implementation has been fixed by converting pixels to linear in-place before applying the filter and converting pixels in-place back to sRGB afterwards. Such a workarounds are not necessary anymore as with Skia, all the pixel-level operations are handled in a color-space-transparent way as long as proper color space information is provided. This not only impacts the results of some filters that are now correct, but improves performance and opens new possibilities for acceleration.

Font rendering

Font rendering is probably the most noticeable visual change after the Skia switch with mixed feedback. Some people reported that several sites look much better, while others reported problems with kerning in other sites. In other cases it’s not really better or worse, it’s just that we were used to the way fonts were rendered before.

Damage tracking

WebKit already tracks the area of the layers that has changed to paint only the dirty regions. This means that we only repaint the areas that changed but the compositor incorporates them and the whole frame is always composited and passed to the system compositor. In 2.46 there’s experimental code to track the damage regions and pass them to the system compositor in addition to the frame. Since this is experimental it’s disabled by default, but can be enabled with the runtime feature PropagateDamagingInformation. There’s also UnifyDamagedRegions feature that can be used in combination with PropagateDamagingInformation to unify the damage regions into one before passing it to the system compositor. We still need to analyze the impact of damage tracking in performance before enabling it by default. We have also started an experiment to use the damage information in WebKit compositor and avoid compositing the entire frame every time.

GPU info

Working on graphics can be really hard in Linux, there are too many variables that can result in different outputs for different users: the driver version, the kernel version, the system compositor, the EGL extensions available, etc. When something doesn’t work for some people and work for others, it’s key for us to gather as much information as possible about the graphics stack. In 2.46 we have added more useful information to webkit://gpu, like the DMA-BUF buffer format and modifier used (for GTK port and WPE when using the new API). Very often the symptom is the same, nothing is rendered in the web view, even when the causes could be very different. For those cases, it’s even more difficult to gather the info because webkit://gpu doesn’t render anything either. In 2.46 it’s possible to load webkit://gpu/stdout to get the information as a JSON directly in stdout.

Sysprof

Another common symptom for people having problems is that a particular website is slow to render, while for others it works fine. In these cases, in addition to the graphics stack information, we need to figure out where we are slower and why. This is very difficult to fix when you can’t reproduce the problem. We added initial support for profiling in 2.46 using sysprof. The code already has some marks so that when run under sysprof we get useful information about timings of several parts of the graphics pipeline.

Next

This is just the beginning, we are already working on changes that will allow us to make a better use of both the GPU and CPU for the best performance. We have also plans to do other changes in the graphics architecture to improve synchronization, latency and security. Now that we have adopted sysprof for profiling, we are also working on improvements and new tools.

WebKitGTK and WPEWebKit Switching to Skia for 2D Graphics Rendering

Posted on by
1

In recent years we have had an ongoing effort to improve graphics performance of the WebKit GTK and WPE ports. As a result of this we shipped features like threaded rendering, the DMA-BUF renderer, or proper vertical retrace synchronization (VSync). While these improvements have helped keep WebKit competitive, and even perform better than other engines in some scenarios, it has been clear for a while that we were reaching the limits of what can be achieved with a CPU based 2D renderer.

There was an attempt at making Cairo support GPU rendering, which did not work particularly well due to the library being designed around stateful operation based upon the PostScript model—resulting in a convenient and familiar API, great output quality, but hard to retarget and with some particularly slow corner cases. Meanwhile, other web engines have moved more work to the GPU, including 2D rendering, where many operations are considerably faster.

We checked all the available 2D rendering libraries we could find, but none of them met all our requirements, so we decided to try writing our own library. At the beginning it worked really well, with impressive results in performance even compared to other GPU based alternatives. However, it proved challenging to find the right balance between performance and rendering quality, so we decided to try other alternatives before continuing with its development. Our next option had always been Skia. The main reason why we didn’t choose Skia from the beginning was that it didn’t provide a public library with API stability that distros can package and we can use like most of our dependencies. It still wasn’t what we wanted, but now we have more experience in WebKit maintaining third party dependencies inside the source tree like ANGLE and libwebrtc, so it was no longer a blocker either.

In December 2023 we made the decision of giving Skia a try internally and see if it would be worth the effort of maintaining the project as a third party module inside WebKit. In just one month we had implemented enough features to be able to run all MotionMark tests. The results in the desktop were quite impressive, getting double the score of MotionMark global result. We still had to do more tests in embedded devices which are the actual target of WPE, but it was clear that, at least in the desktop, with this very initial implementation that was not even optimized (we kept our current architecture that is optimized for CPU rendering) we got much better results. We decided that Skia was the option, so we continued working on it and doing more tests in embedded devices. In the boards that we tried we also got better results than CPU rendering, but the difference was not so big, which means that with less powerful GPUs and with our current architecture designed for CPU rendering we were not that far from CPU rendering. That’s the reason why we managed to keep WPE competitive in embeeded devices, but Skia will not only bring performance improvements, it will also simplify the code and will allow us to implement new features . So, we had enough data already to make the final decision of going with Skia.

In February 2024 we reached a point in which our Skia internal branch was in an “upstreamable” state, so there was no reason to continue working privately. We met with several teams from Google, Sony, Apple and Red Hat to discuss with them about our intention to switch from Cairo to Skia, upstreaming what we had as soon as possible. We got really positive feedback from all of them, so we sent an email to the WebKit developers mailing list to make it public. And again we only got positive feedback, so we started to prepare the patches to import Skia into WebKit, add the CMake integration and the initial Skia implementation for the WPE port that already landed in main.

We will continue working on the Skia implementation in upstream WebKit, and we also have plans to change our architecture to better support the GPU rendering case in a more efficient way. We don’t have a deadline, it will be ready when we have implemented everything currently supported by Cairo, we don’t plan to switch with regressions. We are focused on the WPE port for now, but at some point we will start working on GTK too and other ports using cairo will eventually start getting Skia support as well.

WebKitGTK accelerated compositing rendering

Posted on by
1

Initial accelerated compositing support

When accelerated compositing support was added to WebKitGTK, there was only X11. Our first approach was quite simple, we sent the web view widget Xwindow ID to the web process to be used as rendering target using GLX. This was very efficient, but soon we realized it broke the GTK rendering model so it was not possible to use a web view inside a GtkOverlay, for example, to show status messages on top. The solution was to use a redirected Xcomposite window in the web process, and use its ID as the render target using GLX. The pixmap ID of the redirected Xcomposite window was sent to the UI process to be painted in the web view widget using a Cairo Xlib surface. Since the rendering happens in the web process, this approach required to use Xdamage to monitor when the redirected Xcomposite window was updated to schedule a web view redraw.

Wayland support

To support accelerated compositing under Wayland we initially added a nested Wayland compositor running in the UI process. The web process connected to the nested Wayland compositor and created a surface to be used as the rendering target using EGL. The good thing about this approach compared to the X11 one, is that we can create an EGLImage from Wayland buffers and use a GDK GL context to paint the contents in the web view. This is more efficient than X11 because we can use OpenGL both in web and UI processes.
WPE, when using the fdo backend, uses the same approach of running a nested Wayland compositor, but in a more efficient way, using DMABUF instead of Wayland buffers when available. So, we decided to use libwpe in the GTK port only for rendering under Wayland, and eventually remove our Wayland compositor implementation.
Before the removal of the custom Wayland compositor we had all these possible combinations:

  • UI Process
    • X11: Cairo Xlib surface
    • Wayland: EGL
  • Web Process
    • X11: GLX using redirected Xwindow
    • Wayland (nested Wayland compositor): EGL using Wayland surface
    • Wayland (libwpe): EGL using libwpe to get the Wayland surface

To reduce a bit the differences, and to make it easier to support WebGL with ANGLE we decided to change X11 to prefer EGL if possible, falling back to GLX only if EGL failed.

GTK4

GTK4 was released and we added support for it. The fact that GTK4 uses GL by default should make the rendering more efficient in accelerated compositing mode. This is definitely true under Wayland, because we are using a GL context already, so we just keep passing a texture to GTK to paint the contents in the web view. However, in the case of X11 we still have a Cairo Xlib surface that GTK paints into a Cairo image surface to be uploaded to the GPU. With GTK4 now we have two more combinations in the UI process side X11 + GTK3, X11 + GTK4, Wayland + GTK3 and Wayland + GTK4.

Reducing all the combinations to (almost) one: DMABUF

All these combinations to support the different platforms made it quite difficult to maintain, every time we get a bug report about something not working in accelerated compositing mode we have to figure out the combination actually used by the reporter, GTK3 or GTK4? X11 or Wayland? using EGL or GLX? custom Wayland compositor or libwpe? driver? version? etc.

We are already using DMABUF in WebKit for different things like WebGL and media rendering, so we thought that we could also use it for sharing the rendered buffer between the web and UI processes. That would be a more efficient solution but it would also drastically reduce the amount of combinations to maintain. The web process always uses the surfaceless platform, so it doesn’t matter if it’s under Wayland or X11. Then we create a surfaceless context as the render target and use EGL and GBM APIs to export the contents as a DMABUF buffer. The UI process imports the DMABUF buffer using EGL and GBM too, to be passed to GTK as a texture that is painted in the web view.

This theoretically recudes all the previous combinations to just one (note that we removed GLX support entirely, making EGL a requirement for accelerated compositing), but there’s a problem under X11: GTK3 doesn’t support EGL on X11 and GTK4 defaults to EGL but falls back to GLX if it doesn’t find an EGL config that perfectly matches the screen visual. In my system it never finds that EGL config because mesa doesn’t expose any 32 bit depth config. So, in the case of GTK3 we have to manually download the buffer to CPU and paint normally using Cairo, but in the case of GTK4 + GLX, GTK uploads the buffer again to be painted using GLX. I don’t think it’s possible to force GTK to use EGL from the API, but at least you can use GDK_DEBUG=gl-egl.

WebKitGTK 2.41.1

WebKitGTK 2.41.1 is the first unstable release of this cycle and already includes the DMABUF support that is used by default. We encourage everybody to try it out and provide feedback or report any issue. Please, export the contents of webkit://gpu and attach it to the bug report when reporting any problem related to graphics. To check if the issue is a regression of the DMABUF implementation you can use WEBKIT_DISABLE_DMABUF_RENDERER=1 to use the WPE renderer or X11 instead. This environment variable and the WPE render/X11 code will be eventually removed if DMABUF works fine.

WPE

If this approach works fine we plan to use something similar for the WPE port and get rid of the nested Wayland compositor there too.

Thread safety support in libsoup3

Posted on by
1

In libsoup2 there’s some thread safety support that allows to send messages from a thread different than the one where the session is created. There are other APIs that can be used concurrently too, like accessing some of the session properties, and others that aren’t thread safe at all. It’s not clear what’s thread safe and even sending a message is not fully thread safe either, depending on the session features involved. However, several applications relay on the thread safety support and have always worked surprisingly well.

In libsoup3 we decided to remove the (broken) thread safety support and only allowed to use the API from the same thread where the session was created. This simplified the code and made easier to add the HTTP/2 implementation. Note that HTTP/2 supports multiple request over the same TCP connection, which is a lot more efficient than starting multiple requests from several threads in parallel.

When apps started to be ported to libsoup3, those that relied on the thread safety support ended up being a pain to be ported. Major refactorings where required to either stop using the sync API from secondary threads, or moving all the soup usage to the same secondary thread. We managed to make it work in several modules like gstreamer and gvfs, but others like evolution required a lot more work. The extra work was definitely worth it and resulted in much better and more efficient code. But we also understand that porting an application to a new version of a dependency is not a top priority task for maintainers.

So, in order to help with the migration to libsoup3, we decided to add thread safety support to libsoup3 again, but this time trying to cover all the APIs involved in sending a message and documenting what’s expected to be thread safe. Also, since we didn’t remove the sync APIs, it’s expected that we support sending messages synchronously from secondary threads. We still encourage to use only the async APIS from a single thread, because that’s the most efficient way, especially for HTTP/2 requests, but apps currently using threads can be easily ported first and then refactored later.

The thread safety support in libsoup3 is expected to cover only one use case: sending messages. All other APIs, including accessing session properties, are not thread safe and can only be used from the thread where the session is created.

There are a few important things to consider when using multiple threads in libsoup3:

  • In the case of HTTP/2, two messages for the same host sent from different threads will not use the same connection, so the advantage of HTTP/2 multiplexing is lost.
  • Only the API to send messages can be called concurrently from multiple threads. So, in case of using multiple threads, you must configure the session (setting network properties, features, etc.) from the thread it was created and before any request is made.
  • All signals associated to a message (SoupSession::request-queued, SoupSession::request-unqueued, and all SoupMessage signals) are emitted from the thread that started the request, and all the IO will happen there too.
  • The session can be created in any thread, but all session APIs except the methods to send messages must be called from the thread where the session was created.
  • To use the async API from a thread different than the one where the session was created, the thread must have a thread default main context where the async callbacks are dispatched.
  • The sync API doesn’t need any main context at all.

Epiphany automation mode

Posted on by
8

Last week I finally found some time to add the automation mode to Epiphany, that allows to run automated tests using WebDriver. It’s important to note that the automation mode is not expected to be used by users or applications to control the browser remotely, but only by WebDriver automated tests. For that reason, the automation mode is incompatible with a primary user profile. There are a few other things affected by the auotmation mode:

  • There’s no persistency. A private profile is created in tmp and only ephemeral web contexts are used.
  • URL entry is not editable, since users are not expected to interact with the browser.
  • An info bar is shown to notify the user that the browser is being controlled by automation.
  • The window decoration is orange to make it even clearer that the browser is running in automation mode.

So, how can I write tests to be run in Epiphany? First, you need to install a recently enough selenium. For now, only the python API is supported. Selenium doesn’t have an Epiphany driver, but the WebKitGTK driver can be used with any WebKitGTK+ based browser, by providing the browser information as part of session capabilities.

from selenium import webdriver

options = webdriver.WebKitGTKOptions()
options.binary_location = 'epiphany'
options.add_argument('--automation-mode')
options.set_capability('browserName', 'Epiphany')
options.set_capability('version', '3.31.4')

ephy = webdriver.WebKitGTK(options=options, desired_capabilities={})
ephy.get('http://www.webkitgtk.org')
ephy.quit()

This is a very simple example that just opens Epiphany in automation mode, loads http://www.webkitgtk.org and closes Epiphany. A few comments about the example:

  • Version 3.31.4 will be the first one including the automation mode.
  • The parameter desired_capabilities shouldn’t be needed, but there’s a bug in selenium that has been fixed very recently.
  • WebKitGTKOptions.set_capability was added in selenium 3.14, if you have an older version you can use the following snippet instead
from selenium import webdriver

options = webdriver.WebKitGTKOptions()
options.binary_location = 'epiphany'
options.add_argument('--automation-mode')
capabilities = options.to_capabilities()
capabilities['browserName'] = 'Epiphany'
capabilities['version'] = '3.31.4'

ephy = webdriver.WebKitGTK(desired_capabilities=capabilities)
ephy.get('http://www.webkitgtk.org')
ephy.quit()

To simplify the driver instantation you can create your own Epiphany driver derived from the WebKitGTK one:

from selenium import webdriver

class Epiphany(webdriver.WebKitGTK):
    def __init__(self):
        options = webdriver.WebKitGTKOptions()
        options.binary_location = 'epiphany'
        options.add_argument('--automation-mode')
        options.set_capability('browserName', 'Epiphany')
        options.set_capability('version', '3.31.4')

        webdriver.WebKitGTK.__init__(self, options=options, desired_capabilities={})

ephy = Epiphany()
ephy.get('http://www.webkitgtk.org')
ephy.quit()

The same for selenium < 3.14

from selenium import webdriver

class Epiphany(webdriver.WebKitGTK):
    def __init__(self):
        options = webdriver.WebKitGTKOptions()
        options.binary_location = 'epiphany'
        options.add_argument('--automation-mode')
        capabilities = options.to_capabilities()
        capabilities['browserName'] = 'Epiphany'
        capabilities['version'] = '3.31.4'

        webdriver.WebKitGTK.__init__(self, desired_capabilities=capabilities)

ephy = Epiphany()
ephy.get('http://www.webkitgtk.org')
ephy.quit()

WebDriver support in WebKitGTK+ 2.18

Posted on by
7

WebDriver is an automation API to control a web browser. It allows to create automated tests for web applications independently of the browser and platform. WebKitGTK+ 2.18, that will be released next week, includes an initial implementation of the WebDriver specification.

WebDriver in WebKitGTK+

There’s a new process (WebKitWebDriver) that works as the server, processing the clients requests to spawn and control the web browser. The WebKitGTK+ driver is not tied to any specific browser, it can be used with any WebKitGTK+ based browser, but it uses MiniBrowser as the default. The driver uses the same remote controlling protocol used by the remote inspector to communicate and control the web browser instance. The implementation is not complete yet, but it’s enough for what many users need.

The clients

The web application tests are the clients of the WebDriver server. The Selenium project provides APIs for different languages (Java, Python, Ruby, etc.) to write the tests. Python is the only language supported by WebKitGTK+ for now. It’s not yet upstream, but we hope it will be integrated soon. In the meantime you can use our fork in github. Let’s see an example to understand how it works and what we can do.

from selenium import webdriver

# Create a WebKitGTK driver instance. It spawns WebKitWebDriver
# process automatically that will launch MiniBrowser.
wkgtk = webdriver.WebKitGTK()

# Let's load the WebKitGTK+ website.
wkgtk.get("https://www.webkitgtk.org")

# Find the GNOME link.
gnome = wkgtk.find_element_by_partial_link_text("GNOME")

# Click on the link.
gnome.click()

# Find the search form.
search = wkgtk.find_element_by_id("searchform")

# Find the first input element in the search form.
text_field = search.find_element_by_tag_name("input")

# Type epiphany in the search field and submit.
text_field.send_keys("epiphany")
text_field.submit()

# Let's count the links in the contents div to check we got results.
contents = wkgtk.find_element_by_class_name("content")
links = contents.find_elements_by_tag_name("a")
assert len(links) > 0

# Quit the driver. The session is closed so MiniBrowser
# will be closed and then WebKitWebDriver process finishes.
wkgtk.quit()

Note that this is just an example to show how to write a test and what kind of things you can do, there are better ways to achieve the same results, and it depends on the current source of public websites, so it might not work in the future.

Web browsers / applications

As I said before, WebKitWebDriver process supports any WebKitGTK+ based browser, but that doesn’t mean all browsers can automatically be controlled by automation (that would be scary). WebKitGTK+ 2.18 also provides new API for applications to support automation.

  • First of all the application has to explicitly enable automation using webkit_web_context_set_automation_allowed(). It’s important to know that the WebKitGTK+ API doesn’t allow to enable automation in several WebKitWebContexts at the same time. The driver will spawn the application when a new session is requested, so the application should enable automation at startup. It’s recommended that applications add a new command line option to enable automation, and only enable it when provided.
  • After launching the application the driver will request the browser to create a new automation session. The signal “automation-started” will be emitted in the context to notify the application that a new session has been created. If automation is not allowed in the context, the session won’t be created and the signal won’t be emitted either.
  • A WebKitAutomationSession object is passed as parameter to the “automation-started” signal. This can be used to provide information about the application (name and version) to the driver that will match them with what the client requires accepting or rejecting the session request.
  • The WebKitAutomationSession will emit the signal “create-web-view” every time the driver needs to create a new web view. The application can then create a new window or tab containing the new web view that should be returned by the signal. This signal will always be emitted even if the browser has already an initial web view open, in that case it’s recommened to return the existing empty web view.
  • Web views are also automation aware, similar to ephemeral web views, web views that allow automation should be created with the constructor property “is-controlled-by-automation” enabled.

This is the new API that applications need to implement to support WebDriver, it’s designed to be as safe as possible, but there are many things that can’t be controlled by WebKitGTK+, so we have several recommendations for applications that want to support automation:

  • Add a way to enable automation in your application at startup, like a command line option, that is disabled by default. Never allow automation in a normal application instance.
  • Enabling automation is not the only thing the application should do, so add an automation mode to your application.
  • Add visual feedback when in automation mode, like changing the theme, the window title or whatever that makes clear that a window or instance of the application is controllable by automation.
  • Add a message to explain that the window is being controlled by automation and the user is not expected to use it.
  • Use ephemeral web views in automation mode.
  • Use a temporal user profile in application mode, do not allow automation to change the history, bookmarks, etc. of an existing user.
  • Do not load any homepage in automation mode, just keep an empty web view (about:blank) that can be used when a new web view is requested by automation.

The WebKitGTK client driver

Applications need to implement the new automation API to support WebDriver, but the WebKitWebDriver process doesn’t know how to launch the browsers. That information should be provided by the client using the WebKitGTKOptions object. The driver constructor can receive an instance of a WebKitGTKOptions object, with the browser information and other options. Let’s see how it works with an example to launch epiphany:

from selenium import webdriver
from selenium.webdriver import WebKitGTKOptions

options = WebKitGTKOptions()
options.browser_executable_path = "/usr/bin/epiphany"
options.add_browser_argument("--automation-mode")
epiphany = webdriver.WebKitGTK(browser_options=options)

Again, this is just an example, Epiphany doesn’t even support WebDriver yet. Browsers or applications could create their own drivers on top of the WebKitGTK one to make it more convenient to use.

from selenium import webdriver
epiphany = webdriver.Epiphany()

Plans

During the next release cycle, we plan to do the following tasks:

  • Complete the implementation: add support for all commands in the spec and complete the ones that are partially supported now.
  • Add support for running the WPT WebDriver tests in the WebKit bots.
  • Add a WebKitGTK driver implementation for other languages in Selenium.
  • Add support for automation in Epiphany.
  • Add WebDriver support to WPE/dyz.

WebKitGTK+ remote debugging in 2.18

Posted on by
3

WebKitGTK+ has supported remote debugging for a long time. The current implementation uses WebSockets for the communication between the local browser (the debugger) and the remote browser (the debug target or debuggable). This implementation was very simple and, in theory, you could use any web browser as the debugger because all inspector code was served by the WebSockets. I said in theory because in the practice this was not always so easy, since the inspector code uses newer JavaScript features that are not implemented in other browsers yet. The other major issue of this approach was that the communication between debugger and target was not bi-directional, so the target browser couldn’t notify the debugger about changes (like a new tab open, navigation or that is going to be closed).

Apple abandoned the WebSockets approach a long time ago and implemented its own remote inspector, using XPC for the communication between debugger and target. They also moved the remote inspector handling to JavaScriptCore making it available to debug JavaScript applications without a WebView too. In addition, the remote inspector is also used by Apple to implement WebDriver. We think that this approach has a lot more advantages than disadvantages compared to the WebSockets solution, so we have been working on making it possible to use this new remote inspector in the GTK+ port too. After some refactorings to the code to separate the cross-platform implementation from the Apple one, we could add our implementation on top of that. This implementation is already available in WebKitGTK+ 2.17.1, the first unstable release of this cycle.

From the user point of view there aren’t many differences, with the WebSockets we launched the target browser this way:

$ WEBKIT_INSPECTOR_SERVER=127.0.0.1:1234 browser

This hasn’t changed with the new remote inspector. To start debugging we opened any browser and loaded

http://127.0.0.1:1234

With the new remote inspector we have to use any WebKitGTK+ based browser and load

inspector://127.0.0.1:1234

As you have already noticed, it’s no longer possible to use any web browser, you need to use a recent enough WebKitGTK+ based browser as the debugger. This is because of the way the new remote inspector works. It requires a frontend implementation that knows how to communicate with the targets. In the case of Apple that frontend implementation is Safari itself, which has a menu with the list of remote debuggable targets. In WebKitGTK+ we didn’t want to force using a particular web browser as debugger, so the frontend is implemented as a builtin custom protocol of WebKitGTK+. So, loading inspector:// URLs in any WebKitGTK+ WebView will show the remote inspector page with the list of debuggable targets.

It looks quite similar to what we had, just a list of debuggable targets, but there are a few differences:

  • A new debugger window is opened when inspector button is clicked instead of reusing the same web view. Clicking on inspect again just brings the window to the front.
  • The debugger window loads faster, because the inspector code is not served by HTTP, but locally loaded like the normal local inspector.
  • The target list page is updated automatically, without having to manually reload it when a target is added, removed or modified.
  • The debugger window is automatically closed when the target web view is closed or crashed.

How does the new remote inspector work?

The web browser checks the presence of WEBKIT_INSPECTOR_SERVER environment variable at start up, the same way it was done with the WebSockets. If present, the RemoteInspectorServer is started in the UI process running a DBus service listening in the IP and port provided. The environment variable is propagated to the child web processes, that create a RemoteInspector object and connect to the RemoteInspectorServer. There’s one RemoteInspector per web process, and one debuggable target per WebView. Every RemoteInspector maintains a list of debuggable targets that is sent to the RemoteInspector server when a new target is added, removed or modified, or when explicitly requested by the RemoteInspectorServer.
When the debugger browser loads an inspector:// URL, a RemoteInspectorClient is created. The RemoteInspectorClient connects to the RemoteInspectorServer using the IP and port of the inspector:// URL and asks for the list of targets that is used by the custom protocol handler to create the web page. The RemoteInspectorServer works as a router, forwarding messages between RemoteInspector and RemoteInspectorClient objects.
