PyLatencyMap — Latency Heat Maps Visualizer

PyLatencyMap is a terminal-based visualizer for latency histograms.
It’s intended to help with performance tuning and troubleshooting.

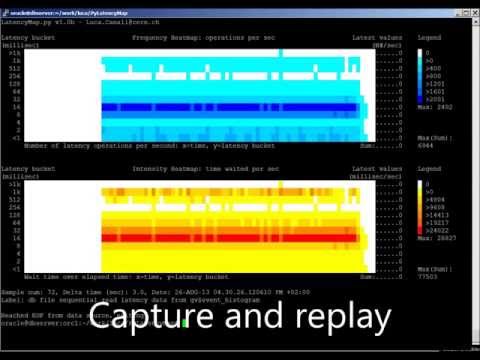

It renders two scrolling heat maps—Frequency and Intensity—so you can see how latency distributions evolve over time.
Works from the command line and plays nicely with sources that output latency histograms (Oracle wait histograms, BPF/bcc, DTrace, SystemTap, tracefiles, etc.).

From PyPI:

pip install PyLatencyMap

Check it’s on PATH (one of):

latencymap --help
# or
python -m LatencyMap --help

git clone https://github.com/LucaCanali/PyLatencyMap
cd PyLatencyMap
python LatencyMap.py --help

Requires Python 3.x and a terminal that supports ANSI colors.

Try PyLatencyMap with sample data

Sample data is provided in SampleData/. For a quick visualization:

pip install PyLatencyMap
cat SampleData/example_latency_data.txt | latencymap

Optionally slow down playback:

cat SampleData/example_latency_data.txt | latencymap --screen_delay=0.2

The following assume the visualizer is installed pip install PyLatencyMap and available as latencymap (or as python -m LatencyMap).

# Oracle troubleshooting, measure I/O random reads and sample every 3 seconds
sqlplus -S system/manager@mydb \
  @Event_histograms_oracle/ora_latency_micro.sql "db file sequential read" 3 \
| latencymap

# Oracle troubleshooting, measure commit time
sqlplus -S / as sysdba \
  @Event_histograms_oracle/ora_latency_micro.sql "log file sync" 3 \
| latencymap

# Requires bcc installed and sudo privileges
sudo bash
dnf install bcc*

python -u BPF-bcc/pylatencymap-biolatency.py -QT 3 100|python LatencyMap.py

# Parse 10046 trace, filter for "db file sequential read" waits
cat SampleData/test_10046_tracefile.trc|python 10046_trace_oracle/10046_connector.py |python LatencyMap.py

# Requires compatible kernel, debuginfo, and stap privileges
# Install SystemTap and prepare the system on Fedora/RHEL:
sudo bash
dnf install -y systemtap systemtap-runtime
stap-prep

stap -v SystemTap/blockio_rq_issue_pylatencymap.stp 3 | python LatencyMap.py

# Example with recorded data
cat SampleData/test_SystemTap_data.txt|python SystemTap/systemtap_connector.py|python LatencyMap.py

# example with a DTrace script measuring pread latency
dtrace -s DTrace/pread_latency.d |python DTrace/dtrace_connector.py |python LatencyMap.py

PyLatencyMap is pipe-friendly: a data source emits records, you may pass them through an optional connector to adapt the format, and finally pipe to the visualizer:

data_source | [optional_connector] | latencymap [options]
# or
data_source | [optional_connector] | python -m LatencyMap [options]

Rendering latency histograms over time is a 3D problem (latency × time × magnitude). Heat maps make it tractable—but you need two projections:

1. Frequency heat map — How often events land in each bucket (events/sec).
2. Intensity heat map — How much time those events consume (ms/sec or unit/sec).

A system might show a bright band < 1 ms in Frequency (most ops are fast) while a thin, hotter band around 8–20 ms in Intensity reveals a tail that dominates end-to-end time. Both views matter.

PyLatencyMap reads tagged records from stdin. Each record is delimited by <begin record> / <end record> and contains metadata plus cumulative counts per bucket (the tool computes deltas between records).

<begin record>
timestamp,microsec,<epoch_usecs>,<human_readable_ts>
latencyunit,<millisec|microsec|nanosec>
label,<free text>
datasource,<|bpf|systemtap|dtrace|oracle>
<power_of_two_value>,<cumulative_count>
<power_of_two_value>,<cumulative_count>
...
<end record>

Conventions

• latencyunit declares the unit used by bucket values; the Y-axis labels are always shown in milliseconds.
• Buckets must be powers of two (e.g., 1, 2, 4, 8, …, 2^N in the declared unit).
• Counts are cumulative within each bucket; PyLatencyMap computes per-interval deltas → rates.
• datasource influences how Intensity is approximated from counts:
  • oracle: ~ 0.75 * bucket_value * waits
  • bpf / systemtap / dtrace: ~ 1.5 * bucket_value * waits
• See SampleData/example_latency_data.txt for a concrete example.

--num_records=INT       Number of time intervals (columns). Default: 90
--min_bucket=INT        Lower bucket exponent (log2). -1 = autotune (default)
--max_bucket=INT        Upper bucket exponent (log2). 64 = autotune (default)
--frequency_maxval=F    Fix the color scale max for frequency; -1 = auto (default)
--intensity_maxval=F    Fix the color scale max for intensity; -1 = auto (default)
--screen_delay=FLOAT    Delay (s) between screens; useful for replays. Default: 0.1
--debug_level=INT       0..5 (verbosity/diagnostics). Default: 0

Notes

• Bucket “exponents” are base-2 exponents of the bucket’s upper bound in the declared unit (see Input Format).
• With microsec inputs (common), autotune sets min_bucket = 7 (i.e., 128 µs) and a compact vertical range.
• Fixing *_maxval is useful to make colors comparable across runs.

• Axes
  • X = time, newest at the right (the chart fills on the right edge and scrolls left).
  • Y = latency buckets in milliseconds:
    • sub-ms rows: .512, .256, …; bottom row is <.128
    • ≥ 1 ms rows: 1, 2, 4, 8, … (no leading dot)
• Top map (Frequency) = events/sec per bucket.
• Bottom map (Intensity) = time waited per sec (shown as (<unit>/sec); labels are still in ms).

Patterns to watch

• Two stable bands → bimodal storage (e.g., cache vs. disk)
• Thin hot streak at high ms → tail outliers dominate; check saturation/retries/throttling
• Upward drift in both maps → generalized contention; correlate with system/DB metrics

PyLatencyMap works live, but you can also record input to a file and replay it later (slower, with --screen_delay). You can record a live feed to a file using Linux's tee for later analysis or playback:

# Record
data_source | tee /tmp/latency_feed.txt | optional_connector | latencymap

# Replay later (slower)
cat /tmp/latency_feed.txt | optional_connector | latencymap --screen_delay=0.2

• Empty or all-white map: ensure your data stream contains changing cumulative counts and valid <begin/end record> tags.
• Units look off: confirm latencyunit is correct (millisec|microsec|nanosec).
• Too few/too many rows: override bucket range with --min_bucket / --max_bucket.
• Colors don’t show: use a terminal with ANSI color support; avoid piping through pagers that strip escapes.
• Normalization across runs: pin the color scales with --frequency_maxval and --intensity_maxval.

LatencyMap.py            # Main visualizer (this tool)
SampleData/              # Example recorded inputs
SystemTap/, BPF-bcc/, DTrace/
Event_histograms_oracle/, AWR_oracle/, 10046_trace_oracle/
NetApp_Cmode/
Example*.sh              # Turnkey scripts per source
tnsnames.ora             # Helper for Oracle examples
pyproject.toml           # Packaging metadata
LICENSE                  # Project license
dist/                    # Built artifacts (when present)

• v1.3.0 (September 2025) — Minor refactor and testing with Python, BPF, and Oracle versions
• v1.2.x (2014–2016) — stability updates and examples expansion
• v1.0 (September 2013) — initial release

Luca Canali — CERN
📧 [email protected]
🌐 https://cern.ch/canali

• Blog posts:
  • Blog: Troubleshoot I/O & Wait Latency with OraLatencyMap and PyLatencyMap
  • http://externaltable.blogspot.com/2013/08/pylatencymap-performance-tool-to-drill.html
  • http://externaltable.blogspot.com/2013/09/getting-started-with-pylatencymap.html
  • http://externaltable.blogspot.com/2015/03/heat-map-visualization-for-systemtap.html
  • http://externaltable.blogspot.com/2015/07/heat-map-visualization-of-latency.html
• Related project: OraLatencyMap — https://github.com/LucaCanali/OraLatencyMap
• Inspiration: Brendan Gregg, Visualizing System Latency and heat-map tooling

See LICENSE in the repository.
