AppBar shows Back Button when EndDrawer is open

Steps to Reproduce

Add an appBar with a title and endDrawer to a Scaffold in a LTR language (English in my case).
Observe the AppBar. No back button.
Open the endDrawer
Observe the AppBar. Back Button appears.

Not an end of the world bug by any means, but overall it looks a bit weird / causes a visual flash in the UI as the Drawer animates in smoothly and then the back button pops in all of a sudden. In addition, it can't be tapped because it's underneath the Drawer layer, so it appears to lack functional value for being there.

Might make sense to simply not show the back button in response to a Drawer being opened? Not sure what other ramifications that would have...

Thanks for your time :)

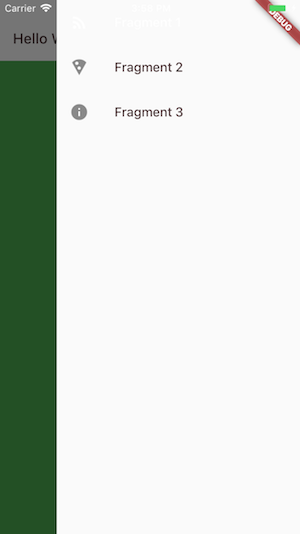

Screenshot

Flutter Doctor

[✓] Flutter (on Mac OS X 10.13.2 17C88, locale en-US, channel alpha)
    • Flutter at /Users/phillywiggins/lab/flutter
    • Framework revision 8f65fec5f5 (3 days ago), 2017-12-12 09:50:14 -0800
    • Engine revision edaecdc8b8
    • Tools Dart version 1.25.0-dev.11.0
    • Engine Dart version 2.0.0-edge.d8ae797298c3a6cf8dc9f4558707bd2672224d3e

[✓] Android toolchain - develop for Android devices (Android SDK 26.0.2)
    • Android SDK at /Users/phillywiggins/Library/Android/sdk
    • Android NDK at /Users/phillywiggins/Library/Android/sdk/ndk-bundle
    • Platform android-26, build-tools 26.0.2
    • ANDROID_HOME = /Users/phillywiggins/Library/Android/sdk
    • Java binary at: /Applications/Android Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 1.8.0_152-release-915-b08)

[✓] iOS toolchain - develop for iOS devices (Xcode 9.2)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 9.2, Build version 9C40b
    • ios-deploy 1.9.2
    • CocoaPods version 1.3.1

[✓] Android Studio (version 3.0)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Java version OpenJDK Runtime Environment (build 1.8.0_152-release-915-b08)

[✓] IntelliJ IDEA Community Edition (version 2017.3.1)
    • Flutter plugin version 20.0.3
    • Dart plugin version 173.3942.31

[✓] Connected devices
    • Android SDK built for x86 • emulator-5554 • android-x86 • Android 8.0.0 (API 26) (emulator)

Hah, that's funny. The back button is appearing because you can now go back (to close the drawer!).

We should have the back button be more aware of where it sits on the history stack so that it ignores routes put on top of it (I bet the same thing happens if you show a dialog).

i'm also have same experience, but it's done by setting up automaticallyImplyLeading to false in AppBar.

Persists with current master 1.21.0-6.0.pre.129

Back Button is shown when Drawer is open (isn't shown when dialog is open).

code sample

import 'package:flutter/material.dart';

void main() => runApp(MaterialApp(home: MyApp()));

class MyApp extends StatefulWidget {
  @override
  _MyAppState createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  @override
  Widget build(BuildContext context) {
    return SafeArea(
      child: Scaffold(
        appBar: AppBar(
          title: Text('title'),
        ),
        endDrawer: Drawer(
          child: Center(child: Text('drawer')),
        ),
        body: Center(
          child: RaisedButton(
            child: Text('show dialog'),
            onPressed: () {
              showDialog(
                  context: context,
                  builder: (BuildContext context){
                    return AlertDialog(
                      title: Text("Alert Dialog"),
                      content: Text("Dialog Content"),
                    );
                  }
              );
            },
          ),
        ),
      ),
    );
  }
}

flutter doctor -v

[✓] Flutter (Channel master, 1.21.0-6.0.pre.129, on Mac OS X 10.15.6 19G73, locale en-GB)
    • Flutter version 1.21.0-6.0.pre.129 at /Users/nevercode/dev/flutter
    • Framework revision 30aef0a3b9 (14 hours ago), 2020-07-30 14:20:21 -0700
    • Engine revision a9910e409c
    • Dart version 2.10.0 (build 2.10.0-1.0.dev 24c7666def)


[✓] Android toolchain - develop for Android devices (Android SDK version 29.0.3)
    • Android SDK at /Users/nevercode/Library/Android/sdk
    • Platform android-29, build-tools 29.0.3
    • Java binary at: /Applications/Android Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6222593)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 11.6)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 11.6, Build version 11E708
    • CocoaPods version 1.9.1

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] Android Studio (version 4.0)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin version 47.1.2
    • Dart plugin version 193.7361
    • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6222593)

[✓] VS Code (version 1.47.1)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.12.2

[✓] Connected device (6 available)
    • Redmi Note 7 (mobile)       • 6345c469                                 • android-arm64  • Android 9 (API 28)
    • Nevercode’s iPhone (mobile) • b668e524315069f3db3661ac11ff1f66afafebdb • ios            • iOS 13.6
    • iPhone 11 Pro Max (mobile)  • 55C8466B-5367-492B-8EFE-EC45D980571F     • ios            • com.apple.CoreSimulator.SimRuntime.iOS-13-6 (simulator)
    • macOS (desktop)             • macos                                    • darwin-x64     • Mac OS X 10.15.6 19G73
    • Web Server (web)            • web-server                               • web-javascript • Flutter Tools
    • Chrome (web)                • chrome                                   • web-javascript • Google Chrome 84.0.4147.105

• No issues found!

@Hixie

@Hixie PR fixing this issue was merged. I think we can close this

Fixed by #63272

Closing as fixed by #63272

Simple Way to fix that problem
-> Add Appbar Following Code

automaticallyImplyLeading: false,

Solve Your Problems

This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of flutter doctor -v and a minimal reproduction of the issue.
