Text selection vertical extent should be defined per line (not per glyph)

As reported by @_mono on Twitter, the Flutter text selection highlight rect should be computed at the line level as opposed to per glyph. To see this effect, paste the sequence (　´･‿･｀) into a Flutter text field and select it.

Example images below:

Flutter selection:

iOS OEM selection:

Android OEM selection:

@jason-simmons

/cc @jason-simmons @garymm @xster

@Hixie

The engine does this intentionally (see flutter-team-archive/engine@9f8cf7e)

Is this a bug or a feature?

@Hixie

Based on the platform-specific behaviour, it looks like a bug to me. Both Android and iOS appear to use the line height.

It seems potentially useful to expose the glyph-specific metrics (e.g. if you were interested in computing text metrics of a glyph independent from its context) but in terms of selection, I'd assume we should be using line-height.

Looks like the linked commit(s) were intended to support text spans being treated as a single block for Rich text, but is now treating each glyph as a separate block.

@GaryQian

Should've been @GaryQian

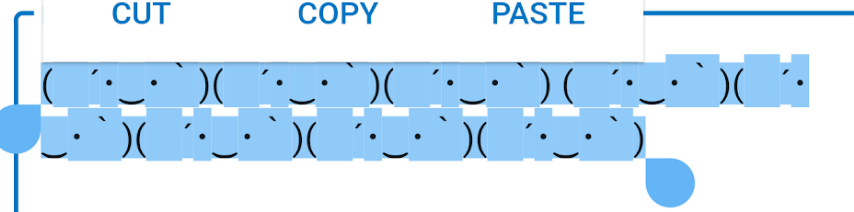

I think I originally implemented it so that the height is the max of each line to match native/blink behavior. I believe this is mainly so that multi-line highlights do not leave awkward gaps between lines due to differing heights (as seen below).

When spans of differing heights are stacked on top of each other, they always advance enough in the y direction to accommodate the tallest span

@dnfield

Also, @dnfield it seems that the (　´･‿･｀) text uses characters from different sets, so they are automatically broken into different spans. it just happens that they are alternating, making it look particularly strange.

So it sounds like we're treating it as different spans because of different sets.

I think what a user would expect (and what Android/iOS do here), is that the text runs are styled the same, so they should be treated as the same height. In other words, this text run was built from a single ParagraphBuilder.addText with no intervening pushStyle or pop - or, could be generated using a single TextSpan class.

That makes sense to me, but to match native behavior (and therefore expected), I think we still should take the max of the line heights. We could also provide the glyph/span specific heights as a separate API, but not sure if that would be particularly useful.

On native text, even if you have a font size 10 on the same line as a font size 150, the bounding boxes for that line are 150 high.

flutter-team-archive/engine#6335 begins to implement a new API for more advanced GetRectsForRange, which provides the boxes for text selection.

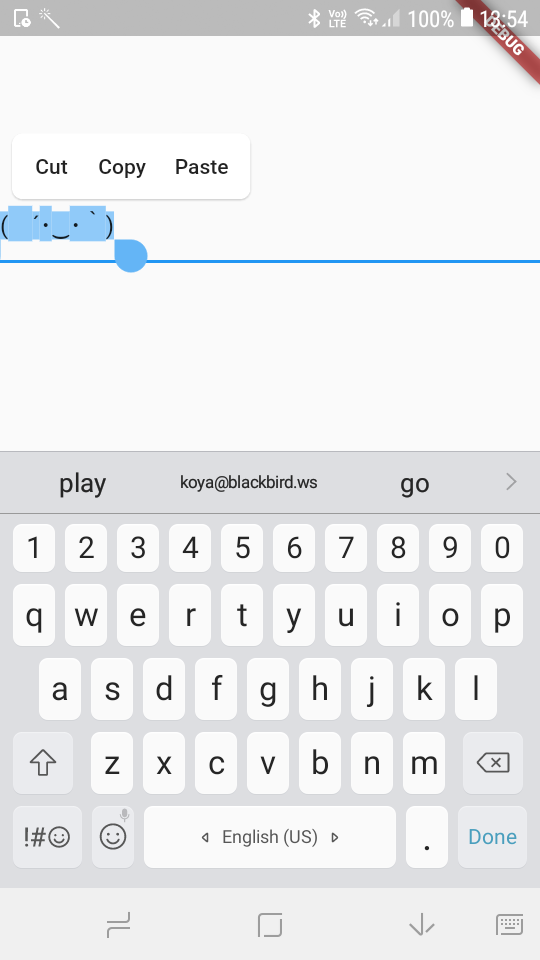

Issue replicable on latest stable (1.20.2)

flutter doctor -v

[✓] Flutter (Channel stable, 1.20.2, on Mac OS X 10.15.2 19C57, locale en-US)
    • Flutter version 1.20.2 at
      /Users/deeptibelsare/Documents/Fluttersdk/flutter
    • Framework revision bbfbf1770c (3 weeks ago), 2020-08-13 08:33:09 -0700
    • Engine revision 9d5b21729f
    • Dart version 2.9.1

[!] Android toolchain - develop for Android devices (Android SDK version 29.0.3)
    • Android SDK at /Users/deeptibelsare/Library/Android/sdk
    • Platform android-30, build-tools 29.0.3
    • ANDROID_HOME = /Users/deeptibelsare/Library/Android/sdk
    • ANDROID_SDK_ROOT = /Users/deeptibelsare/Library/Android/sdk
    • Java binary at: /Applications/Android
      Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build
      1.8.0_212-release-1586-b4-5784211)
    ✗ Android license status unknown.
      Try re-installing or updating your Android SDK Manager.
      See https://developer.android.com/studio/#downloads or visit
      https://flutter.dev/docs/get-started/install/macos#android-setup for
      detailed instructions.

[✓] Xcode - develop for iOS and macOS (Xcode 11.6)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 11.6, Build version 11E708
    • CocoaPods version 1.9.3

[✓] Android Studio (version 3.6)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin version 45.1.1
    • Dart plugin version 192.7761
    • Java version OpenJDK Runtime Environment (build
      1.8.0_212-release-1586-b4-5784211)

[✓] Connected device (1 available)
    • SM A260G (mobile) • 5200763ebcfa861f • android-arm • Android 8.1.0 (API
      27)

! Doctor found issues in 1 category.

code sample

return MaterialApp(
      home: Scaffold(
        body: Center(
          child: TextField(
            decoration: InputDecoration(
              hintText: 'Enter text'
            ),
          )
        )
      )
    );

This issue is mostly fixed. I cannot reproduce it with Android, MacOS or iOS. But when running on Linux, there is a slight vertical offset on one of the glyphs. Updating labels to reflect the same

Linux

Android

Code Sample

import 'package:flutter/material.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: const MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  final _controller = TextEditingController()..text = '(　´･‿･｀)';

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SizedBox(
          width: 300,
          child: TextField(
            controller: _controller,
            style: Theme.of(context).textTheme.headlineMedium,
          ),
        ),
      ),
    );
  }
}

Gary is no longer working on flutter issues. Removing him to correctly reflect bug status.
