BorderRadiusDirectional not supported in BorderRadiusTween #26468

Open
Open
BorderRadiusDirectional not supported in BorderRadiusTween#26468
Labels
P2Important issues not at the top of the work lista: animationAnimation APIscustomer: money (g3)found in release: 3.5Found to occur in 3.5has reproducible stepsThe issue has been confirmed reproducible and is ready to work onp: material_uimaterial_ui package in flutter/packagespackageflutter/packages repository. See also p: labels.team-designOwned by Design Languages teamtriaged-designTriaged by Design Languages team

Description

@BenWildeman
BenWildeman
opened on Jan 12, 2019
No description provided.

Activity

  1. zoechi commented on Jan 12, 2019

    @zoechi
    zoechi
    on Jan 12, 2019
    Contributor

    Looks similar to #24257

  2. zoechi
    added
    frameworkflutter/packages/flutter repository. See also f: labels.
    on Jan 12, 2019
  3. zoechi
    added this to the milestone on Jan 12, 2019

  4. BenWildeman commented on Jan 12, 2019

    @BenWildeman
    BenWildeman
    on Jan 12, 2019
    Author

    it is, I'm creating a PR to fix it

  5. kf6gpe
    added
    P2Important issues not at the top of the work list
    on May 29, 2020
  6. markusaksli-nc
    added
    a: animationAnimation APIs
    found in release: 1.21Found to occur in 1.21
    has reproducible stepsThe issue has been confirmed reproducible and is ready to work on
    on Jul 28, 2020

  7. markusaksli-nc commented on Jul 28, 2020

    @markusaksli-nc
    markusaksli-nc
    on Jul 28, 2020
    Contributor

    Still not supported on latest master 1.21.0-6.0.pre.41.

    import 'package:flutter/material.dart';
void main() {  BorderRadiusTween(begin: BorderRadiusDirectional.all(Radius.zero), end: BorderRadiusDirectional.all(Radius.elliptical(1, 4)));}
    flutter doctor -v
    [√] Flutter (Channel master, 1.21.0-6.0.pre.41, on Microsoft Windows [Version 10.0.18362.959], locale et-EE)
   • Flutter version 1.21.0-6.0.pre.41 at C:\Development\flutter_master
   • Framework revision 39fa00201d (5 hours ago), 2020-07-27 21:11:43 -0700
   • Engine revision f27729e97b
   • Dart version 2.10.0 (build 2.10.0-0.0.dev 24c7666def)


[√] Android toolchain - develop for Android devices (Android SDK version 30.0.0)
   • Android SDK at C:\Users\Isa\AppData\Local\Android\sdk
   • Platform android-30, build-tools 30.0.0
   • Java binary at: C:\Users\Isa\AppData\Local\JetBrains\Toolbox\apps\AndroidStudio\ch-0\193.6626763\jre\bin\java
   • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b01)
   • All Android licenses accepted.

[√] Chrome - develop for the web
   • Chrome at C:\Program Files (x86)\Google\Chrome\Application\chrome.exe

[√] Visual Studio - develop for Windows (Visual Studio Community 2019 16.6.4)
   • Visual Studio at C:\Program Files (x86)\Microsoft Visual Studio\2019\Community
   • Visual Studio Community 2019 version 16.6.30309.148
   • Windows 10 SDK version 10.0.18362.0

[√] Android Studio (version 4.0)
   • Android Studio at C:\Users\Isa\AppData\Local\JetBrains\Toolbox\apps\AndroidStudio\ch-0\193.6626763
   • Flutter plugin version 47.1.2
   • Dart plugin version 193.7361
   • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b01)

[√] VS Code (version 1.47.2)
   • VS Code at C:\Users\Isa\AppData\Local\Programs\Microsoft VS Code
   • Flutter extension version 3.12.2

[√] Connected device (5 available)
   • SM G950F (mobile)       • ce12171c51cc001c03 • android-arm64  • Android 9 (API 28)
   • sdk gphone x86 (mobile) • emulator-5554      • android-x86    • Android 11 (API 30) (emulator)
   • Windows (desktop)       • windows            • windows-x64    • Microsoft Windows [Version 10.0.18362.959]
   • Web Server (web)        • web-server         • web-javascript • Flutter Tools
   • Chrome (web)            • chrome             • web-javascript • Google Chrome 84.0.4147.89

• No issues found!
  8. Hixie
    removed this from the milestone on Aug 17, 2020

  9. darshankawar commented on Oct 20, 2022

    @darshankawar
    darshankawar
    on Oct 20, 2022
    Member

    This is still the case on latest stable and master versions:

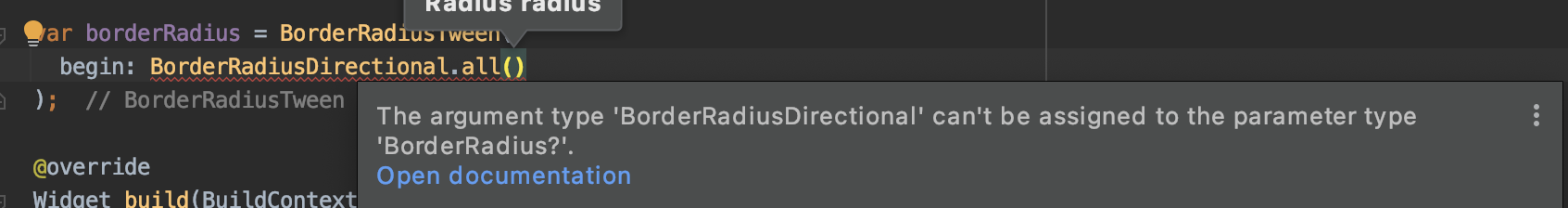

    Screenshot 2022-10-20 at 4 33 32 PM

    stable, master flutter doctor -v

[✓] Flutter (Channel stable, 3.3.5, on macOS 12.2.1 21D62 darwin-x64, locale
    en-GB)
    • Flutter version 3.3.5 on channel stable at
      /Users/dhs/documents/fluttersdk/flutter
    • Upstream repository https://github.com/flutter/flutter.git
    • Framework revision d9111f6402 (10 hours ago), 2022-10-19 12:27:13 -0700
    • Engine revision 3ad69d7be3
    • Dart version 2.18.2
    • DevTools version 2.15.0

[!] Xcode - develop for iOS and macOS (Xcode 12.3)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    ! Flutter recommends a minimum Xcode version of 13.
      Download the latest version or update via the Mac App Store.
    • CocoaPods version 1.11.2

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] VS Code (version 1.62.0)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.21.0

[✓] Connected device (5 available)
    • SM G975F (mobile)       • RZ8M802WY0X • android-arm64   • Android 11 (API 30)
    • Darshan's iphone (mobile)  • 21150b119064aecc249dfcfe05e259197461ce23 •
      ios            • iOS 14.4.1 18D61
    • iPhone 12 Pro Max (mobile) • A5473606-0213-4FD8-BA16-553433949729     •
      ios            • com.apple.CoreSimulator.SimRuntime.iOS-14-3 (simulator)
    • macOS (desktop)            • macos                                    •
      darwin-x64     • Mac OS X 10.15.4 19E2269 darwin-x64
    • Chrome (web)               • chrome                                   •
      web-javascript • Google Chrome 98.0.4758.80

[✓] HTTP Host Availability
    • All required HTTP hosts are available

! Doctor found issues in 1 category.

[✓] Flutter (Channel master, 3.5.0-6.0.pre.48, on macOS 12.2.1 21D62 darwin-x64,
    locale en-GB)
    • Flutter version 3.5.0-6.0.pre.48 on channel master at
      /Users/dhs/documents/fluttersdk/flutter
    • Upstream repository https://github.com/flutter/flutter.git
    • Framework revision 5a7224d14a (7 hours ago), 2022-10-17 12:25:57 +0800
    • Engine revision 59dea4cddd
    • Dart version 2.19.0 (build 2.19.0-312.0.dev)
    • DevTools version 2.18.0

[!] Xcode - develop for iOS and macOS (Xcode 12.3)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    ! Flutter recommends a minimum Xcode version of 13.
      Download the latest version or update via the Mac App Store.
    • CocoaPods version 1.11.2

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] VS Code (version 1.62.0)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.21.0

[✓] Connected device (5 available)
    • SM G975F (mobile)       • RZ8M802WY0X • android-arm64   • Android 11 (API 30)
    • Darshan's iphone (mobile)  • 21150b119064aecc249dfcfe05e259197461ce23 •
      ios            • iOS 14.4.1 18D61
    • iPhone 12 Pro Max (mobile) • A5473606-0213-4FD8-BA16-553433949729     •
      ios            • com.apple.CoreSimulator.SimRuntime.iOS-14-3 (simulator)
    • macOS (desktop)            • macos                                    •
      darwin-x64     • Mac OS X 10.15.4 19E2269 darwin-x64
    • Chrome (web)               • chrome                                   •
      web-javascript • Google Chrome 98.0.4758.80

[✓] HTTP Host Availability
    • All required HTTP hosts are available

! Doctor found issues in 1 category.
  10. darshankawar
    added
    found in release: 3.5Found to occur in 3.5
    p: material_uimaterial_ui package in flutter/packages
    and removed
    found in release: 1.21Found to occur in 1.21
    on Oct 20, 2022

  11. ChristianEdwardPadilla commented on Oct 30, 2022

    @ChristianEdwardPadilla
    ChristianEdwardPadilla
    on Oct 30, 2022

    Similar issue causing crashes in pay client:

    Thread 0 MAIN THREAD_CastError: type 'BorderRadiusDirectional' is not a subtype of type 'BorderRadius' in type cast
    at StadiumBorder.lerpFrom (stadium_border.dart:51)
    at ShapeBorder.lerp (borders.dart:523)
    at ShapeBorderTween.lerp (material.dart:745)
    at Tween.transform (tween.dart:356)
    at Animatable.evaluate (tween.dart:68)
    at _MaterialInteriorState.build (material.dart:861

    The code in stadium_border.dart is:
  if (a is RoundedRectangleBorder) {
      return _StadiumToRoundedRectangleBorder(
        side: BorderSide.lerp(a.side, side, t),
        borderRadius: a.borderRadius as BorderRadius,
        rectness: 1.0 - t,
      );
    }

    RoundedRectangleBorder.borderRadius has type BorderRadiusGeometype, and not necessarily BorderRadius.
    The code probably shouldn't cast to BorderRadius without checking.

  12. ChristianEdwardPadilla
    added
    customer: money (g3)
    on Oct 30, 2022
  13. flutter-triage-bot
    added
    multiteam-retriage-candidate
    team-designOwned by Design Languages team
    triaged-designTriaged by Design Languages team
    on Jul 8, 2023
  14. Hixie
    removed
    multiteam-retriage-candidate
    on Mar 6, 2024
  15. Piinks
    added
    packageflutter/packages repository. See also p: labels.
    and removed
    frameworkflutter/packages/flutter repository. See also f: labels.
    on Aug 17, 2026
