Stack not clipping Transform.rotate #75731
Description
I'm having this extremely frustrating issue:

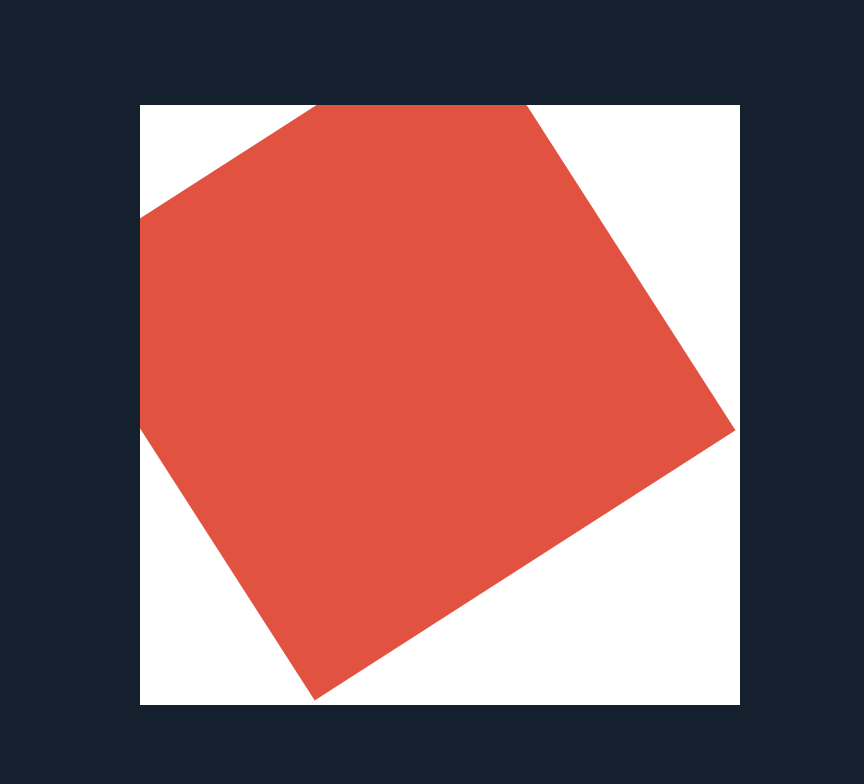

It should clip, but it doesn't. It only happens in some scenarios, I believe it is an Skia issue.
Possibly related: #38753
import 'package:flutter/material.dart';
final Color darkBlue = Color.fromARGB(255, 18, 32, 47);
void main() {
runApp(MyApp());
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
theme: ThemeData.dark().copyWith(scaffoldBackgroundColor: darkBlue),
debugShowCheckedModeBanner: false,
home: Scaffold(
body: MyWidget(),
),
);
}
}
class MyWidget extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Center(
child: Container(
width: 300,
height: 300,
color: Colors.white,
child: Stack(
children: [
Positioned(
left: 0,
top: 0,
child: Transform.rotate(
angle: 1,
child: Container(
color: Colors.red,
width: 250,
height: 250,
),
),
),
],
),
),
);
}
}Tested in Dartpad (Flutter 1.26.0-17.3.pre) and locally (1.26.0-17.2.pre) in Flutter Web.
Edit: using Clip.hardEdge in a Stack doesn't work, but wrapping a Stack in a ClipRect works 🤨 this is very buggy.
Metadata
Metadata
Assignees
Labels
Important issues not at the top of the work listIssues with https://api.flutter.dev/Found to occur in 3.7Found to occur in 3.8flutter/packages/flutter repository. See also f: labels.The issue has been confirmed reproducible and is ready to work onIssue is closed as already fixed in a newer versionOwned by Framework teamTriaged by Framework teamA fix is in flight
Activity
darshankawar commentedon Feb 10, 2021
Verified this on latest master.
Wrapping
StackwithClipRRect:flutter doctor -v
[-]Stack not clipping Transform.rotate[/-][+][Web]: Stack not clipping Transform.rotate[/+]14 remaining items
Further clarify Stack documentation on overflowing (#130776)
Further clarify Stack documentation on overflowing (flutter#130776)
github-actions commentedon Aug 7, 2023
This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of
flutter doctor -vand a minimal reproduction of the issue.
