Packages are not supported when using legacy build locations, but the current project has them enabled

I had the issue at #57083 The solution from This comment works but when I have a clean clone the problem starts again
Note: I have the changes to the file Runner.xcodeproj/project.xcworkspace/contents.xcworkspacedata committed to the codebase

Steps to Reproduce

Create a new flutter app
Add a swift package to the ios project
if xcodebuild -list fails use this solution
if you followed step 3 commit the changes of the file Runner.xcodeproj/project.xcworkspace/contents.xcworkspacedata to your codebase.
push everything and then have a clean clone and try xcodebuild -list

Expected results: The solution worked before and it should work no problem.

Actual results: You still need to change from legacy to xcode-default

`flutter run --verbose` output

output.txt

`flutter doctor -v` output

[✓] Flutter (Channel stable, 1.22.6, on Mac OS X 10.15.7 19H524 darwin-x64,
    locale en-US)
    • Flutter version 1.22.6 at /Users/ahussein/development/flutter
    • Framework revision 9b2d32b605 (5 weeks ago), 2021-01-22 14:36:39 -0800
    • Engine revision 2f0af37152
    • Dart version 2.10.5


[✓] Android toolchain - develop for Android devices (Android SDK version 30.0.3)
    • Android SDK at /Users/ahussein/Library/Android/sdk
    • Platform android-30, build-tools 30.0.3
    • Java binary at: /Applications/Android
      Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build
      1.8.0_242-release-1644-b3-6915495)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 12.4)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 12.4, Build version 12D4e
    • CocoaPods version 1.10.0

[!] Android Studio (version 4.1)
    • Android Studio at /Applications/Android Studio.app/Contents
    ✗ Flutter plugin not installed; this adds Flutter specific functionality.
    ✗ Dart plugin not installed; this adds Dart specific functionality.
    • Java version OpenJDK Runtime Environment (build
      1.8.0_242-release-1644-b3-6915495)

[✓] VS Code (version 1.53.2)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.19.0

[✓] Connected device (1 available)
    • Ammar’s iPhone (mobile) • 07e805c86df752a6bf2ccdb27e6094290a8c9cda • ios •
      iOS 14.4

! Doctor found issues in 1 category.

More docs

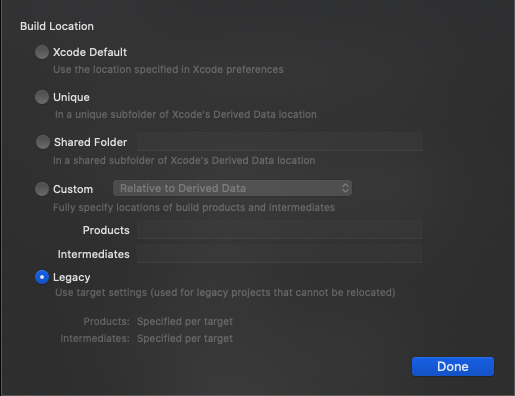

screenshot of ios/Runner.xcodeproj (not Runner.xcworkspace) > File > Project Settings > Per-User Project Settings: > Advanced. (after a clean clone)
ios/Runner.xcodeproj/project.xcworkspace/xcuserdata/USER.xcuserdatad/WorkspaceSettings.xcsetting

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>BuildLocationStyle</key>
	<string>UseTargetSettings</string>
	<key>CustomBuildLocationType</key>
	<string>RelativeToDerivedData</string>
	<key>DerivedDataLocationStyle</key>
	<string>Default</string>
	<key>IssueFilterStyle</key>
	<string>ShowActiveSchemeOnly</string>
	<key>LiveSourceIssuesEnabled</key>
	<true/>
	<key>ShowSharedSchemesAutomaticallyEnabled</key>
	<true/>
</dict>
</plist>

ios/Runner.xcodeproj/project.xcworkspace/contents.xcworkspacedata

<?xml version="1.0" encoding="UTF-8"?>
<Workspace
   version = "1.0">
   <FileRef
      location = "self:">
   </FileRef>
</Workspace>

Thanks for all the details!

Can you also attach a screenshot of ios/Runner.xcodeproj (not Runner.xcworkspace) > File > Project Settings > Per-User Project Settings: > Advanced. See Xcode 11 Swift Packages incompatible with "flutter build" #44811 (comment) for context.
Attach ios/Runner.xcodeproj/project.xcworkspace/xcuserdata/USER.xcuserdatad/WorkspaceSettings.xcsetting
Attach ios/Runner.xcodeproj/project.xcworkspace/contents.xcworkspacedata

@jmagman

@jmagman I've attached them in More docs section in the issue

	<key>BuildLocationStyle</key>
	<string>UseTargetSettings</string>
	<key>CustomBuildLocationType</key>
	<string>RelativeToDerivedData</string>

Hm yeah that's the problem. Can you attach your project's .metadata file so I can see what version of Flutter you were on when you generated the project?

@jmagman

	<key>BuildLocationStyle</key>
	<string>UseTargetSettings</string>
	<key>CustomBuildLocationType</key>
	<string>RelativeToDerivedData</string>
Hm yeah that's the problem. Can you attach your project's .metadata file so I can see what version of Flutter you were on when you generated the project?

@jmagman Where can I find that?

Where can I find that?

It should be a file named .metadata in the root of your Flutter project. If it's missing, do you happen to remember what version of Flutter you were on when you created your project?

@jmagman

@jmagman
The file is messing but most likely it was Flutter 1.22.5 • channel stable
The project was created by a co-worker and they didn't upgrade their flutter since creating it

@ammaratef45

Hi @ammaratef45
Thanks for filing the issue

Changed Advanced from Legacy to Xcode Default and WorkspaceSettings.xcsettings is as follows

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>BuildLocationStyle</key>
	<string>UseAppPreferences</string>
	<key>CustomBuildLocationType</key>
	<string>RelativeToDerivedData</string>
	<key>DerivedDataLocationStyle</key>
	<string>Default</string>
	<key>IssueFilterStyle</key>
	<string>ShowActiveSchemeOnly</string>
	<key>LiveSourceIssuesEnabled</key>
	<true/>
	<key>ShowSharedSchemesAutomaticallyEnabled</key>
	<true/>
</dict>
</plist>

The app builds and runs after the changes

It shouldn't be legacy but code default, in your project it shows legacy, #44811 (comment)

flutter doctor -v

[✓] Flutter (Channel stable, 1.22.6, on macOS 11.2.2 20D80 darwin-x64, locale en-GB)
    • Flutter version 1.22.6 at /Users/tahatesser/Code/flutter_stable
    • Framework revision 9b2d32b605 (5 weeks ago), 2021-01-22 14:36:39 -0800
    • Engine revision 2f0af37152
    • Dart version 2.10.5


[✓] Android toolchain - develop for Android devices (Android SDK version 30.0.3)
    • Android SDK at /Volumes/Extreme/SDK
    • Platform android-30, build-tools 30.0.3
    • ANDROID_HOME = /Volumes/Extreme/SDK
    • Java binary at: /Applications/Android Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6915495)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 12.4)
    • Xcode at /Volumes/Extreme/Xcode.app/Contents/Developer
    • Xcode 12.4, Build version 12D4e
    • CocoaPods version 1.10.1

[!] Android Studio (version 4.1)
    • Android Studio at /Applications/Android Studio.app/Contents
    ✗ Flutter plugin not installed; this adds Flutter specific functionality.
    ✗ Dart plugin not installed; this adds Dart specific functionality.
    • Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6915495)

[✓] VS Code (version 1.53.2)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.19.0

[✓] Connected device (1 available)
    • Taha’s iPad (mobile) • 00008020-000255113EE8402E • ios • iOS 14.4

! Doctor found issues in 1 category.

A similar issue was filed #74586

@TahaTesser

@TahaTesser As I mentioned, changing to Xcode default solves it but with a clean clone it is reverted back to legacy and I have to change it again.
That breaks my CI/CD builds as they always depend on a clean clone.

#82576 merged

This is available in 2.3.0-12.0.pre (currently dev channel)

@jmagman

thanks @jmagman 👍

Closing, legacy build locations are no longer supported by Flutter or Xcode.

This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of flutter doctor -v and a minimal reproduction of the issue.
