Pan and zoom gallery demo by justinmc · Pull Request #25164 · flutter/flutter

justinmc · 2018-12-10T19:01:03Z

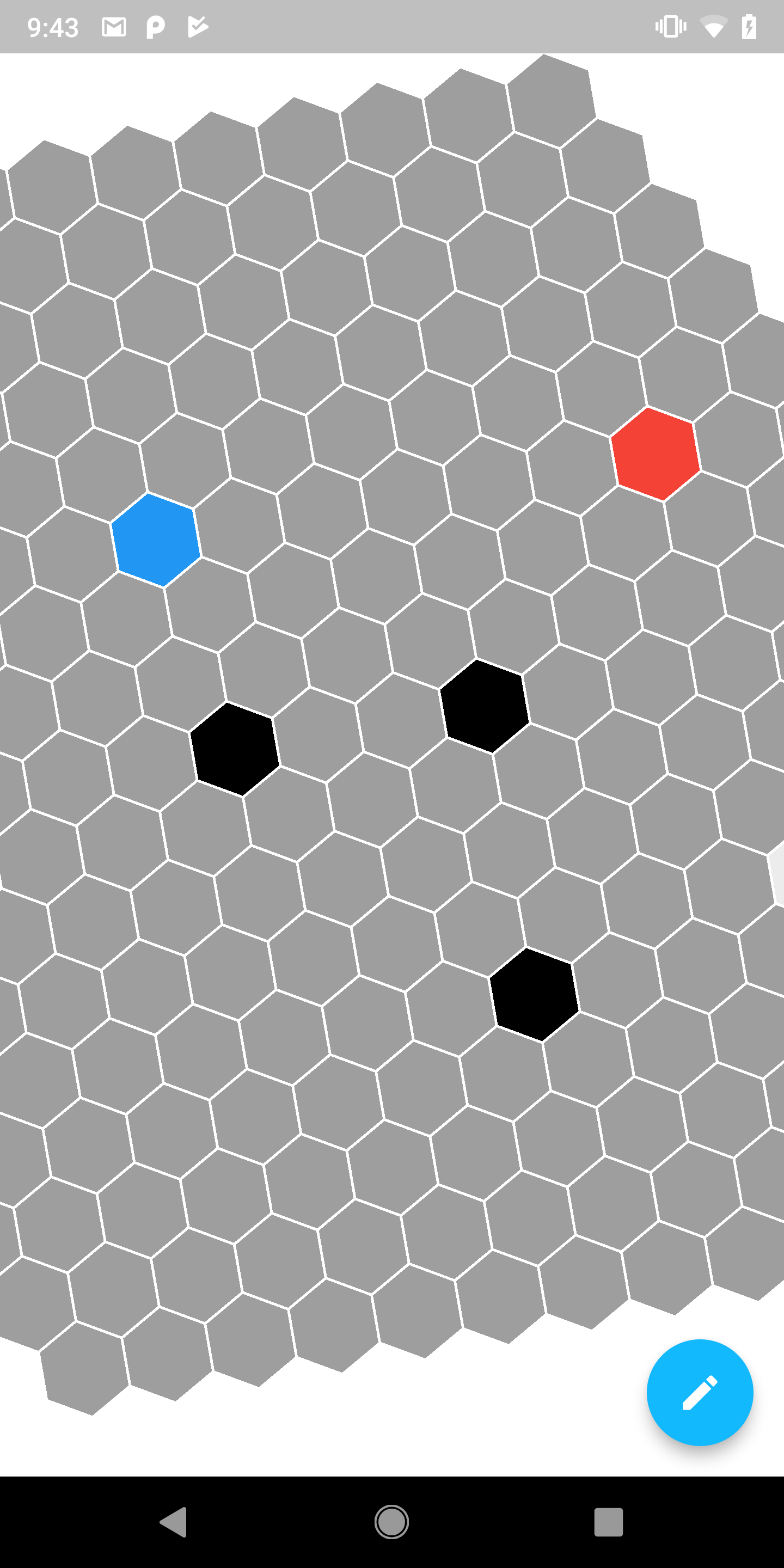

Adding a demo to the flutter_gallery app that shows how to do some basic canvas operations like panning, pinch to zoom, and hit detection.

Relevant issues: #8272, #12878

This PR won't close those issues, but after this goes in I'll open a new PR to move my code into a reusable widget that is more like what people are asking for.

justinmc · 2018-12-10T19:01:50Z

TODO:

app

HansMuller

Mostly superficial feedback about the code.

HansMuller · 2019-03-25T19:23:44Z

+import 'pan_and_zoom_demo_transform_interaction.dart';
+
+class PanAndZoomDemo extends StatefulWidget {
+  const PanAndZoomDemo({Key key}) : super(key: key);


({ Key key })

HansMuller · 2019-03-25T19:42:36Z

+    final BoardPainter painter = BoardPainter(
+      board: _board,
+    );
+    final Size screenSize = MediaQuery.of(context).size;


We need to get away from doing this kind of thing because it doesn't work on tablets or desktops. Better to use a LayoutBuilder to build this widget and then pass the "screen" size along as a parameter to this widget.

Sounds good, I wasn't aware of that pattern but I like it a lot more.

I may revisit the size and visibleRect params when I bring this widget into Flutter. It might be better if this is as big as it can be and users can constrain the size with a parent widget.

HansMuller · 2019-03-25T19:43:27Z

+
+    final FloatingActionButton floatingActionButton = _board.selected == null
+      ? FloatingActionButton(
+        onPressed: () => setState(() {


indent two spaces here and below

We usually reserve the => notation for one-liners that return a value

HansMuller · 2019-03-25T19:49:16Z

+          size: Size.infinite,
+          painter: painter,
+        ),
+        visibleRect: Rect.fromLTWH(


Maybe (someday) we should change the Rect.fromPoints parameters from Offset to OffsetBase so that you could write: visibleRect: Rect.fromPoints(-visibleSize / 2, visibleSize)

That would work for me!

HansMuller · 2019-03-25T20:00:45Z

+// CustomPainter is what is passed to CustomPaint and actually draws the scene
+// when its `paint` method is called.
+class BoardPainter extends CustomPainter {
+  BoardPainter({


Looks like should be const BorderPainter({ this.board }) etc

HansMuller · 2019-03-26T01:50:18Z

+  // Return a new matrix representing the given matrix after applying the given
+  // translation.
+  Matrix4 matrixTranslate(Matrix4 matrix, Offset translation) {
+    if (widget.disableTranslation) {


asserts that prove the parameter values aren't insane might be useful here.

HansMuller · 2019-03-26T01:51:38Z

+  }
+  void _onScaleUpdate(ScaleUpdateDetails details) {
+    widget.onScaleUpdate?.call(fromViewport(details.focalPoint, _transform));
+    double scale = _transform.getMaxScaleOnAxis();


Can scale be zero? That's not going to work below, where foo / scale

HansMuller · 2019-03-26T01:52:35Z

+  // Return a new matrix representing the given matrix after applying the given
+  // scale transform.
+  Matrix4 matrixScale(Matrix4 matrix, double scale) {
+    if (widget.disableScale) {


Are we done if scale is zero?

HansMuller · 2019-03-26T01:53:51Z

+    return matrix;
+  }
+
+  // Return the scene point underneath the viewport point given.


underneath the viewport point given. => at the given viewport point

HansMuller · 2019-03-26T02:02:05Z

+      onDoubleTap: widget.onDoubleTap,
+      onLongPress: widget.onLongPress,
+      onLongPressUp: widget.onLongPressUp,
+      onVerticalDragDown: widget.onVerticalDragDown == null ? null : (DragDownDetails details) => widget.onVerticalDragDown(fromViewport(details.globalPosition - getOffset(context), _transform)),


It might be clearer to factor out a generic method that produces these closure values:

T _callbackValue<T>(T callback) { if (callback == null) return callback; return (T details) => callback(fromViewport(details.globalPosition - getOffset(context), _transform)); }

And then:

onVerticalDragDown: callbackValue<DragDownDetails>(widget.onVerticalDragDown),

This is assuming that you can define a local generic method. Otherwise you'd have to pass along more parameters.

I can't seem to get this to work. It won't let me write details.globalPosition when details is an unknown type. Unfortunately there is no common parent class or interface for all of these different Details objects.

When I first wrote this, I was also trying things like having TransformInteraction inherit from GestureDetector, but I couldn't get anything like that working either.

Any thing else to try?

Sorry, here's a version that should work:

ValueChanged<T> _callbackValue<T>(ValueChanged<T> callback) { if (callback == null) return callback; return (T details) => callback(fromViewport(details.globalPosition - getOffset(context), _transform)); }

I need your help implementing this. These callbacks have changed a bit so it needs to be slightly different again. I'll show you later.

xster · 2019-03-27T18:39:58Z

+  static const double _kHexagonRadius = 32.0;
+  static const double _kHexagonMargin = 1.0;
+  static const int _kBorderRadius = 8;
+


add code comment for what this is

xster · 2019-03-27T18:41:13Z

+      board: _board,
+    );
+    final FloatingActionButton floatingActionButton = _board.selected == null
+      ? FloatingActionButton(


The reader can realize there are 2 alternative FABs but can't tell what the intents are. It's also a bit hard to read. Put them into small functions and give them self-documenting names that describe their purposes.

xster · 2019-03-27T18:43:10Z

+    // The scene is drawn by a CustomPaint, but user interaction is handled by
+    // the TransformInteraction parent widget.
+    return Scaffold(
+      appBar: AppBar(),


somewhat surprised you don't need a title here

I guess not. I only added this because some smoke tests look for an app bar with a back button. Maybe I should add a title...

xster · 2019-03-27T18:46:23Z

+      body: LayoutBuilder(
+        builder: (BuildContext context, BoxConstraints constraints) {
+          final Size size = Size(constraints.maxWidth, constraints.maxHeight);
+          final Size visibleSize = Size(size.width * 3, size.height * 2);


This line needs a comment. I assume this is just an arbitrary size of the board you're defining?

Yeah, this is how much the user can see beyond the size of the widget by panning around before hitting a "wall". This size just feels nice for the demo. I'll add a comment.

xster · 2019-03-27T18:47:15Z

@@ -10,6 +10,7 @@ export 'cupertino/cupertino.dart';
 export 'fortnightly/fortnightly.dart';


what's the file above? is it intentional?

Fortnightly is a news app demo in the gallery. I didn't change anything about it.

Not fortnightly, I can't comment on the file but it's default.profraw

Oh got it. Good catch! I must have accidentally added it. Will remove.

xster · 2019-03-27T19:04:48Z

+  final Widget child;
+  final Size size;
+  final bool reset;
+  final Function onTapDown;


Reuse the signatures of the recognizers instead of blank functions.

Whoops, good call.

xster · 2019-03-27T19:05:22Z

+    this.onScaleEnd,
+  }) :
+    assert(!reset || onResetEnd != null, 'Must implement onResetEnd to use reset.');
+


What does null min/max scales, disableTranslations, initialTranslations etc etc mean?

xster · 2019-03-27T19:05:57Z

+  @override TransformInteractionState createState() => TransformInteractionState();
+}
+
+enum GestureType {


Why is this public? Document what this is for.

xster · 2019-03-27T19:06:27Z

+  rotate,
+}
+
+class TransformInteractionState extends State<TransformInteraction> with TickerProviderStateMixin {


Why is this public? Who is expected to call its APIs? Document them

I just realized that I made this public so that I can access it in a unit test. Is that valid idea or is there a better way?

xster · 2019-03-27T19:14:18Z

+      }
+    });
+  }
+  void _onScaleEnd(ScaleEndDetails details) {


…ranslation at boundary (not ideal)

review fixes

justinmc · 2019-04-01T21:35:15Z

Ready for rereview.

@HansMuller one outstanding thing: I need some help using your _callbackValue function now that the surrounding code has changed.

And @xster: See comment #25164 (comment)

Hixie · 2019-04-01T21:39:01Z

You can make the State private and grab it via "dynamic". If you make the State public you are committing to that as a public API.

…

On Mon, Apr 1, 2019, 14:29 Justin McCandless ***@***.***> wrote: ***@***.**** commented on this pull request. ------------------------------ In examples/flutter_gallery/lib/demo/pan_and_zoom_demo_transform_interaction.dart <#25164 (comment)>: > + final bool disableScale; + final bool disableRotation; + final Offset initialTranslation; + final double initialScale; + final double initialRotation; + + @OverRide TransformInteractionState createState() => TransformInteractionState(); +} + +enum GestureType { + translate, + scale, + rotate, +} + +class TransformInteractionState extends State<TransformInteraction> with TickerProviderStateMixin { I just realized that I made this public so that I can access it in a unit test. Is that valid idea or is there a better way? — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub <#25164 (comment)>, or mute the thread <https://github.com/notifications/unsubscribe-auth/AAhpHNP87xt3eb7MSbWn6wCsWwb12n4Kks5vcnpKgaJpZM4ZL-pn> .

HansMuller

This is really close; just a handful of trivial feedback and a suggestion about factoring GestureTransformableState

HansMuller · 2019-04-02T16:54:14Z

+    if (q <= 0) {
+      rStart = -boardRadius - q;
+      rEnd = boardRadius;
+    } else if (q > 0) {


I think this is just "else"

HansMuller · 2019-04-02T16:59:41Z

+    @required this.selected,
+    this.onTap,
+  }) : assert(color != null),
+      assert(selected != null);


one more space

HansMuller · 2019-04-02T17:00:57Z

+    @required this.boardPoint,
+    this.onColorSelection,
+  }) : assert(boardPoint != null),
+      super(key: key);


one more space

HansMuller · 2019-04-02T17:42:42Z

+import 'transformations_demo_inertial_motion.dart';
+
+// Empty function type for the onResetEnd parameter.
+typedef _ResetEndCallback = void Function();


This isn't needed, you can use VoidCallback

Thanks, I didn't know about that.

HansMuller · 2019-04-02T17:43:55Z

+    this.onScaleStart,
+    this.onScaleUpdate,
+    this.onScaleEnd,
+  }) :


Sadly, conventional formatting for the asserts is:

.... this.onScaleEnd, }) : assert(child != null), assert(size != null), ....

I really had trouble with my assert indentation in this PR...

HansMuller · 2019-04-02T17:45:08Z

+// original position of the child.
+@immutable
+class GestureTransformable extends StatefulWidget {
+  const GestureTransformable({


Widget classes should usually start with a Key key named parameter that's passed along via super(key: key)

HansMuller · 2019-04-02T17:46:25Z

+  }
+
+  // Get the offset of the current widget from the global screen coordinates.
+  static Offset getOffset(BuildContext context) {


Eventually we'll have to explain when it's safe to call this (not at build time).

At build time you wouldn't have a context, so is that enough discouragement from calling this at the wrong time?

At build(BuildContext context) time is exactly when you might be tempted to call it.

At the moment this is just a private entry point within a demo. No need to worry about this yet.

Oh I see what you mean! I'll add a TODO so I remember this later.

HansMuller · 2019-04-02T17:51:25Z

+    // Translation is reversed (a positive translation moves the scene to the
+    // right, viewport to the left).
+    final Rect translationBoundaries = Rect.fromLTRB(
+      viewportBoundaries.right * -1 * scale,


Maybe:

-scale * viewportBoundaries.right,

etc

HansMuller · 2019-04-02T17:56:12Z

+import 'package:flutter/material.dart';
+import 'package:vector_math/vector_math.dart' show Vector2;
+
+// Provides calculations for an object moving with inertia and friction using


Eventually a version of this should probably exist in the physics library.

Now that you mention it I see we have friction_simulation.dart. I could probably reuse or extend that.

HansMuller · 2019-04-02T18:02:55Z

+
+  @override
+  Widget build (BuildContext context) {
+    if (widget.reset && _animationReset == null) {


This looks like work that should be done at initStateTime() and in didUpdateWidget() (when the widget.reset flag changes).

… these by moving function to another class

HansMuller · 2019-04-02T22:39:19Z

+    _controllerReset = AnimationController(
+      vsync: this,
+    );
+    if (widget.reset && _animationReset == null) {


This method only runs once when the State is constructed so _animationReset has to be null.

Good catch.

HansMuller

LGTM. Hooray!
