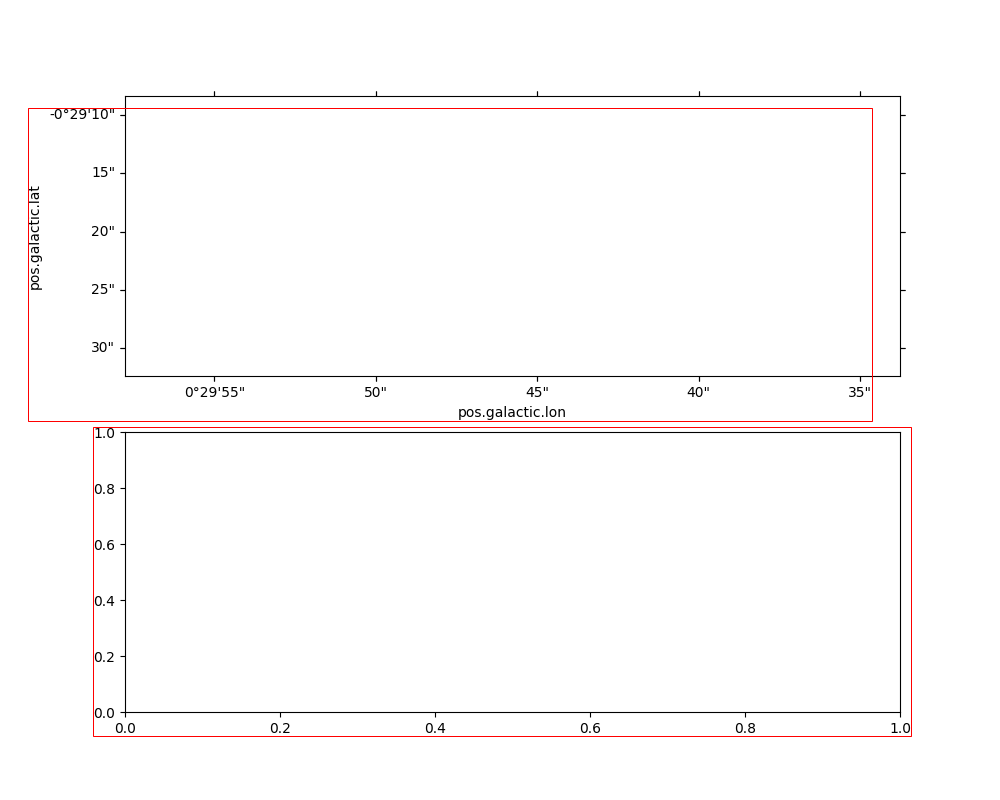

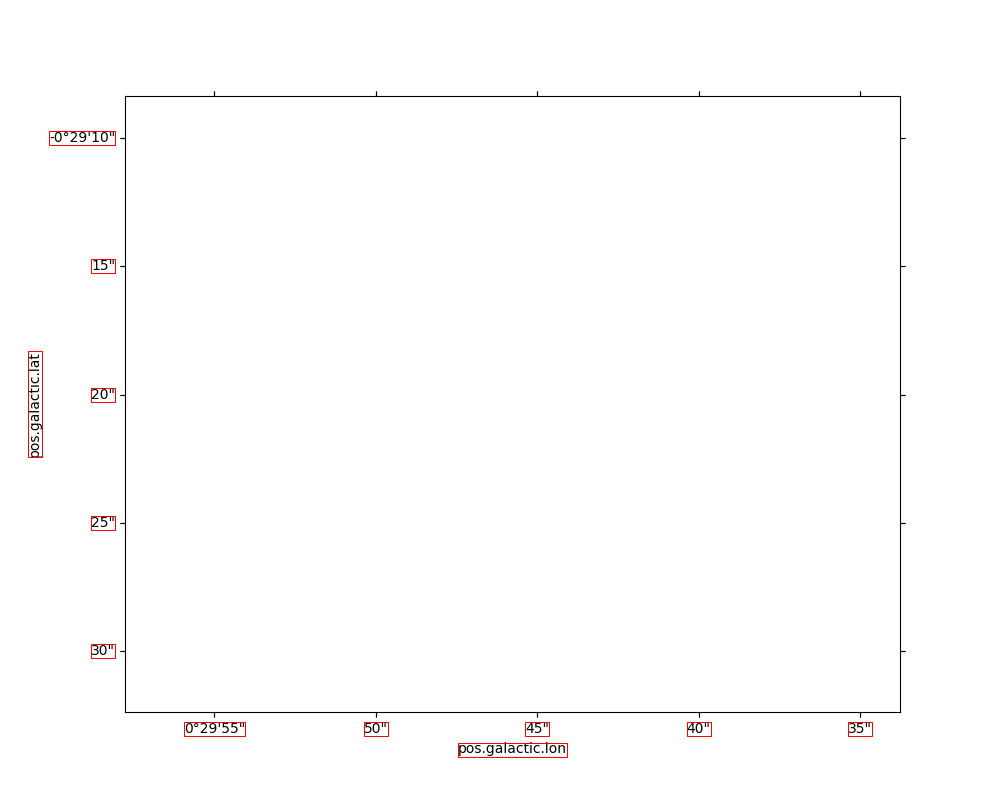

Using the below code should draw a tight bounding box round a given axes. This works correctly for normal Matplotlib axes, as can be seen in the bottom subplot, but fails for WCSAxes, as seen in the top subplot. For some reason the width/height do not seem to be calculated correctly.
I think this is the root cause of #8703
from astropy.wcs import WCS
from astropy.io import fits
from astropy.utils.data import get_pkg_data_filename
import matplotlib.pyplot as plt
filename = get_pkg_data_filename('galactic_center/gc_msx_e.fits')
hdu = fits.open(filename)[0]
wcs = WCS(hdu.header)
fig = plt.figure()
ax1 = fig.add_subplot(2, 1, 1, projection=wcs)
ax2 = fig.add_subplot(2, 1, 2)
fig.canvas.draw()
renderer = fig.canvas.renderer
for ax in [ax1, ax2]:
ax_box = ax.get_tightbbox(renderer)
rect = plt.Rectangle((ax_box.x0, ax_box.y0), width=ax_box.width, height=ax_box.height,
linewidth=72./fig.dpi, edgecolor="red", facecolor="none",
transform=None)
fig.add_artist(rect)
plt.show()
