Add MSCFormer model (multi-scale convolutional transformer for motor imagery) - #1186

Closes #721.

Summary

Adds braindecode.models.MSCFormer, the multi-scale convolutional transformer
network for motor-imagery decoding from Zhao et al. (2025)
(Scientific Reports 15:12935, 10.1038/s41598-025-96611-5).
The model was proposed by its original author in #721, who asked for it to be
integrated into braindecode; I pinged them there before starting and gave it two
weeks, with no reply, so I am opening this PR for the maintainers to judge.

The port is adapted from the author's own reference implementation
(snailpt/MSCFormer, Apache-2.0 —
compatible with the license="apache-2.0" set on the class) and follows the
conventions of the existing CTNet port in this repository (same first author,
same architecture family), so the two models are directly comparable from the
same API.

Files:

• braindecode/models/mscformer.py — the model
• braindecode/models/__init__.py, braindecode/models/util.py (registered in
  models_mandatory_parameters, which is what drives the generic model test
  suite), braindecode/models/summary.csv (150,724 parameters), docs/api.rst
• docs/whats_new.rst

No new test file is needed: test_integration.py and test_models.py are
parameterised over the registry, so registering the model picks up the existing
integration and config cases automatically — including
test_completeness__models_test_cases, which asserts the registry and the test
cases stay in sync.

The architecture is: three parallel temporal-convolution branches with kernel
widths (85, 65, 45) followed by a depth-wise spatial convolution, batch norm and
average pooling, concatenated into a 3 * n_filters_time embedding; a BERT-style
zero class token and a learnable positional encoding; a 5-layer transformer
encoder with post-norm residual connections; and a linear classifier on the
class-token position.

Deviations from the reference implementation

Everything below is deliberate, and only one item is behavioural:

1. Attention logit scaling — UPDATED after a maintainer fidelity review (see
   the "Replication (braindecode maintainers)" section below). The reference
   divides the attention logits by emb_size ** 0.5 (scaling = self.emb_size ** (1 / 2) in MSCFormer_model.py) for every head, rather than by the standard
   per-head sqrt(head_dim) (with emb_size=48, num_heads=8:
   sqrt(48) ≈ 6.93 vs sqrt(head_dim) = sqrt(6) ≈ 2.45). The port now exposes
   this through a new attention_scale parameter on
   braindecode.modules.MultiHeadAttention (mirroring MIRepNet's
   attention_scale, Add MIRepNet model #1146), and defaults to embed_dim ** -0.5, matching the
   original source exactly rather than CTNet's head_dim ** -0.5 convention.
   A state-dict-matched numerical parity check against the original
   implementation (eval mode, fixed seed, batch=3 random input) gives a max abs
   logit diff of 2.4e-7 (float32 noise) with this default, versus 0.0346 with
   the previous head_dim ** -0.5 default. attention_scale stays overridable
   for anyone who wants the other convention. This is documented in the class
   docstring and covered by a new regression test.

2. torch.zeros(...).cuda() for the class token → x.new_zeros(...), so the
   model runs on CPU/MPS. The reference hard-codes CUDA here.

3. The x * sqrt(embed_dim) rescaling before the positional encoding is kept
   as-is, since it is the standard transformer input normalisation.

4. activation_cnn/activation_ffn are exposed as class-valued parameters
   (nn.ELU/nn.GELU, matching the reference) per the interface convention for
   new models, and the classifier is named final_layer so it is picked up
   automatically.

Benchmark

Reproducible benchmark on BCI Competition IV-2a, subject-specific, 5-fold
cross-validation, all 9 subjects, following the reference implementation's
protocol (288 training trials per subject split into contiguous folds, Adam
lr=1e-3, betas=(0.5, 0.999), weight decay 0, batch size 72 concatenated with
216 segmentation-and-reconstruction-augmented trials, number_aug=3,
number_seg=8, model selection on best validation loss, test on the 288
evaluation trials).

Because a single model's number is not interpretable on its own, I ran the
already-merged braindecode.models.CTNet through the exact same harness as a
control, so the comparison is within-harness rather than against numbers copied
from papers.

Each cell is the mean accuracy over that subject's 5 folds, ± the population
standard deviation over those folds (ddof=0); κ is the mean Cohen's kappa over
the same folds, and the grand means are over all 45 fold results.

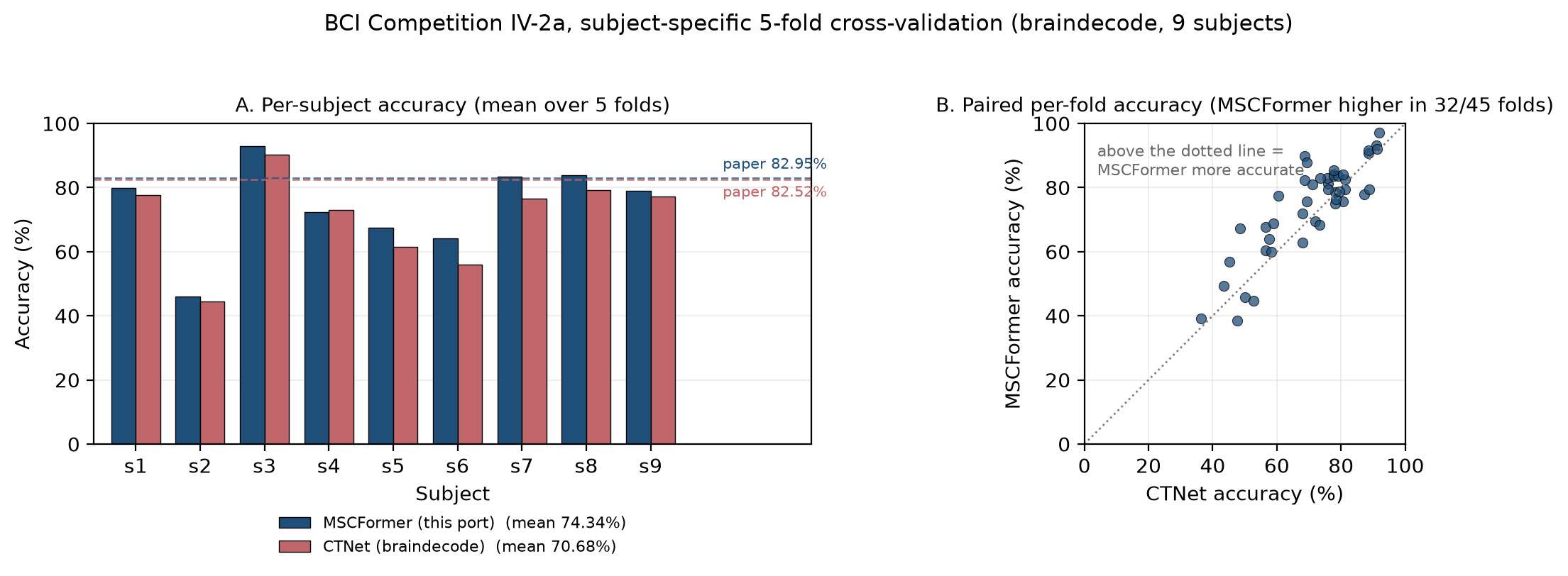

Panel A: per-subject accuracy next to the papers' reported values. Panel B: paired per-fold scatter.

How to read this — including the part that does not flatter the port.

Both models land well below the accuracies their papers report on this dataset
(MSCFormer 82.95%, CTNet 82.52%): −8.61 pp and −11.84 pp respectively. That gap
is systematic across both models rather than specific to MSCFormer, which points
at the harness rather than at the model. The likely contributors are: the
paper's preprocessing is reproduced from its description rather than from shared
code; model selection is on validation loss with an early-stopping patience of
150 epochs; and the runs are seeded and executed on Apple MPS instead of CUDA.

What the harness does reproduce is the relative ordering the paper reports:
MSCFormer outperforms CTNet, by +3.67 pp here versus the paper's own +0.43 pp,
and it does so consistently — better on 8 of 9 subjects and in 32 of 45
subject/fold pairs (panel B). The direction of the effect matches the paper; the
magnitude is larger, which I cannot fully attribute, so I would rather state it
than bury it.

Given #1156 (making model validation a more official gate) is open, I am happy
to rerun this under whatever protocol ends up being standard. The harness is a
single self-contained script that runs either model through the same code path
(same folds, same augmentation, same seed policy, same evaluation), and I am
happy to share it or to open a follow-up PR if the maintainers want it in-tree.

Replication (braindecode maintainers)

We re-audited the port against the original snailpt/MSCFormer source
(commit c627d3af, read-only clone kept at
model-replication-sources/MSCFormer/ with a MANIFEST.yaml recording every
verified line reference) and the published paper, independently of the
author's own benchmark above.

Fidelity fix. The attention-scaling divergence flagged in point 1 above was
the only behavioural difference found. We built an explicit state-dict mapping
between the original PyTorch module and the port and ran a numerical parity
check: eval mode, fixed seed, identical random input, n_chans=22, n_times=1000, pooling_size=44. Max abs logit diff was 0.0346 with the port's previous
default (head_dim ** -0.5) and 2.4e-7 (float32 noise) once MultiHeadAttention
is configured with the original's embed_dim ** -0.5 scale — which is now the
port's default, exposed as an overridable attention_scale parameter (same
pattern as MIRepNet, #1146). A regression test pins this default and the
validation of attention_scale.

Simplification audit. We reviewed the port for dead/duplicated code and for
reuse opportunities against shared braindecode modules with provably identical
output. The private _ResidualAdd / _TransformerEncoderBlock /
_TransformerEncoder / _PositionalEncoding classes duplicate CTNet's
equivalents by design (same convention as every other transformer-style model
port in this codebase — each keeps its own small private helpers rather than
sharing a cross-model base, so unifying them would be out-of-scope stylistic
churn touching unrelated models). No other dead code or needless wrappers were
found; the public API is unchanged apart from the new attention_scale
keyword.

Tests. With the fix applied: quick run (-k "mscformer and not compiled")
15 passed, 1 skipped; full local suite (test_models.py, test_integration.py,
test_return_features.py, -k "not compiled") 1558 passed, 146 skipped, 0
failed in 320 s; pre-commit clean on all touched files (ruff
format/lint/isort, codespell, mypy, sphinx-lint), no rewrites on a second run.
Environment: macOS, braindecode env Python 3.12, PYTHONPATH=. (package not
pip-installed in that env).

Independent BCI IV-2a replication. Protocol taken from the reference notebook (MSCFormer.ipynb): subject-specific, session T train / session E test, 5 contiguous folds on T (56/56/56/56/64), Adam lr=1e-3, betas=(0.5, 0.999), batch 72 + S&R augmentation (number_seg=8, number_aug=3), a fixed 1000 epochs per fold with the best-validation-accuracy checkpoint, and the mean over the 5 folds. The released code has no patience-based early stopping. It draws S&R augmentation from all of session T, including each fold's validation trials; we kept this to match the source. Both implementations ran with identical splits, batches and seeds (seed 0) on Gaudi HPU (FP32, lazy mode).

The port matches the original code (difference +0.21 pp; per-subject range −1.11 to +1.87 pp). Both are about 8 pp below the paper's 82.95 % and close to the author's 74.34 %. So the gap versus the paper comes from the released training protocol, preprocessing or seeds, not from the port. We ran one seed, and HPU-vs-CPU float32 kernels differ slightly (documented).

Validation

• pytest test/unit_tests/models/ — MSCFormer is exercised by the parametrised
  integration and config cases; the full model suite is green locally
  (2301 passed, 179 skipped, 0 failed). Like most models it is not in
  _DIRECT_TORCHSCRIPT_MODELS, so no scripting guarantee is claimed here;
  happy to add it to that list if the maintainers want the coverage.
• Forward pass smoke check: MSCFormer(n_chans=22, n_outputs=4, n_times=1000)
  on 2×22×1000 µV input returns (2, 4); parameter count 150,724 matches the
  summary.csv entry.
• pre-commit clean on the changed files (ruff format / ruff lint / codespell /
  mypy / sphinx-lint).
• Parameters registered in summary.csv and in util.py's registry
  (("MSCFormer", ["n_chans", "n_outputs", "n_times"], None)).
