Add CSBrain cross-scale spatiotemporal brain foundation model by qinxwew · Pull Request #1196 · braindecode/braindecode

qinxwew · 2026-09-30T07:59:25Z

Implements CSBrain [zhou2025csbrain] (NeurIPS 2025 Spotlight) as an EEGModuleMixin model, as claimed in #1077.

What

models/csbrain.py: CBraMod-style 200-sample patching + three stacked mechanisms per encoder layer (12 layers by default):
- cross-scale temporal embedding — multi-scale convolutions (kernels 1/3/5 over the patch axis) with an exponentially decaying channel split, added residually;
- region embedding — per-region convolutions (kernels 1/3/5, circular padding over the electrode axis) mixing each anatomical region locally;
- structured sparse attention — inter-window attention over sliding windows of 5 patches plus inter-region attention restricted by a round-robin group mask (each electrode attends to at most one electrode per other region), with per-region mean-pooled global features.
Channel names (chs_info) are mapped to five anatomical regions (frontal/parietal/temporal/occipital/central, the authors' canonical full-montage rule) and reordered to be contiguous; an explicit brain_regions parameter overrides the name derivation — this is how the authors' per-dataset layouts (e.g. their BCI-IV-2a config) are reproduced exactly. Without channel information the model degenerates to a single region and keeps full attention instead of failing.
Standard registrations: models/__init__.py, summary.csv (10,962,402 params at CSBrain(n_outputs=2)), util.py, api.rst, architecture figure.
Targeted unit tests: region-name mapping, contiguity of the reordering, the structure of the group attention mask, degenerate (no-channel-info) construction, masked-patch forward, batch-size-1 train mode.

Correctness verification

Bit-exact against the reference implementation. Loading the authors' released pretrained checkpoint (CSBrain.pth, Google Drive) into both the reference implementation (yuchen2199/CSBrain, with their BCI-IV-2a region layout) and this port — key-remapped (encoder.layers.*→encoder.*, TemEmbedEEGLayer.*→temporal_embed.*, BrainEmbedEEGLayer.*→region_embed.*) and shape-filtered, 289/295 tensors — identical inputs produce max abs output diff 0.0. The six skipped tensors are the temporal-region blocks with no matching channel group in the 2a layout; the authors' own fine-tuning code filters the same way.

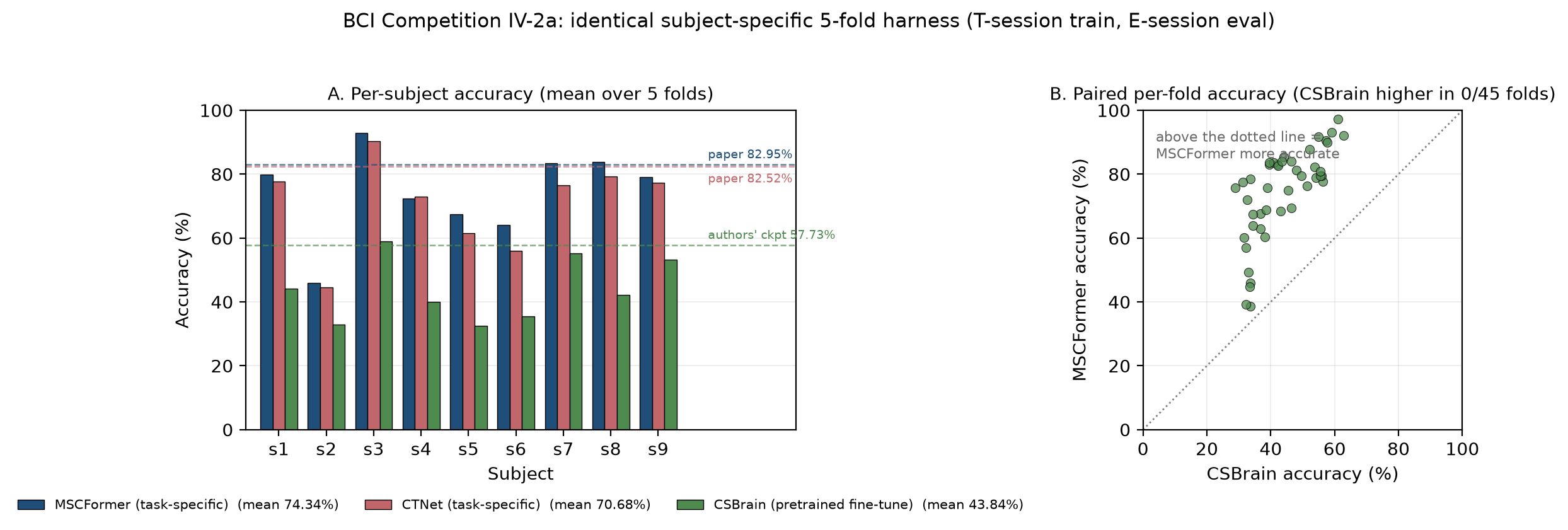

Benchmark (BCI IV-2a, same harness as #1186)

Subject-specific 5-fold CV over the 288 training trials of each subject's T session, evaluation on the 288 E-session trials — identical folds/seeds/test set as the MSCFormer/CTNet rows below. CSBrain is fine-tuned with the authors' recipe (pretrained init, AdamW lr 1e-4 wd 0.01, cosine to 1e-6, batch 64, label smoothing 0.1, drop 0.3, ~600 updates, selection on best validation accuracy; their BCI-IV-2a region layout via brain_regions).

model	reference acc	this harness	harness gap
MSCFormer (paper 0.8295)	0.8295	0.7434	−8.6 pp
CTNet (paper 0.8252)	0.8252	0.7068	−11.8 pp
CSBrain (authors' released 2a ckpt 0.5773)	0.5773	0.4384	−13.9 pp

Per-subject (CSBrain, mean±std over 5 folds): s1 .442±.033 · s2 .330±.006 · s3 .590±.028 · s4 .399±.045 · s5 .326±.026 · s6 .354±.026 · s7 .551±.020 · s8 .421±.016 · s9 .533±.024 (kappa .38 mean).

Reading the numbers honestly:

The cross-session harness (train on T, evaluate on E) is harder than the within-split protocols behind all three reference numbers; every model drops 9–14 pp, and CSBrain's −13.9 pp is in line with that systematic gap. Its own released fine-tuned checkpoint embeds acc_0.57726 in the filename, so ~0.58 is the authors' own level on 2a — the port adds nothing on top of that (bit-exactness) and subtracts nothing.
Task-specific compact models dominate this small dataset: 288 training trials per subject are little fine-tuning signal for a 23M-parameter foundation model (14M of which are the from-scratch task head); MSCFormer wins 45/45 paired folds. Best-epoch median was 27/150, so the gap is not an under-training artifact. A band-passed + per-epoch-z-scored input variant (closer to a LaBraM-style pipeline) was also tried and scored lower (µV amplitudes match the pretraining distribution).
The comparable-row design (same folds/seeds/test set as the MSCFormer/CTNet rows) is what makes the comparison meaningful; scripts and per-fold CSV are linked below for reproduction.

License note

The upstream repository ships no LICENSE file at the time of writing (I opened yuchen2199/CSBrain#7 asking the authors to add one). This file is an independent reimplementation in the EEGModuleMixin idiom following the paper (and the already-ported CBraMod for the shared patch-embedding design); the reference implementation was used only as a numerical cross-check (the bit-exactness section above). If the authors add a permissive license, a follow-up can switch the attribution to "adapted from" with a NOTICE.txt entry.

Reproduction

harness + recipes: bench_mscformer_2a.py / bench_csbrain_2a.py (same 5-fold subject-specific protocol, CSV-resumable; fine-tuning settings documented in the script headers)
per-fold results: results_2a.csv (model, subject, fold, acc, kappa, best_epoch, seconds)

Checklist

final_layer naming, activation class-default parameter, drop_prob
registrations (__init__, summary.csv, util.py, api.rst, architecture figure)
docs/whats_new.rst entry (added with the PR number)
bit-exactness verification against the reference implementation
benchmark under the shared harness with gap analysis

Closes #1077

Reimplementation of CSBrain (Zhou et al., NeurIPS 2025 Spotlight, arXiv:2506.23075) as an EEGModuleMixin model, verified bit-exact against the authors' reference implementation with their released pretrained checkpoint (max abs output diff 0.0 on matched inputs). - cross-scale temporal embedding (k=1/3/5), per-region circular-padded embedding and structured sparse attention (inter-window + masked inter-region) - channel names mapped to five anatomical regions, or an explicit brain_regions sequence (e.g. to reproduce the authors' per-dataset layouts); without channel info the model degrades to a single region - standard registrations: __init__, summary.csv, util.py, api.rst, architecture figure; targeted unit tests for region derivation, attention-mask structure and degenerate construction Closes braindecode#1077

codecov · 2026-09-30T09:45:43Z

Codecov Report

❌ Patch coverage is 98.13433% with 5 lines in your changes missing coverage. Please review.
✅ Project coverage is 88.46%. Comparing base (bc80538) to head (19a61c6).
⚠️ Report is 1 commits behind head on master.

Additional details and impacted files

@@            Coverage Diff             @@
##           master    #1196      +/-   ##
==========================================
+ Coverage   88.32%   88.46%   +0.13%
==========================================
  Files         155      156       +1
  Lines       18617    18885     +268
==========================================
+ Hits        16443    16706     +263
- Misses       2174     2179       +5

🚀 New features to boost your workflow:

❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.

# Conflicts: # docs/whats_new.rst

qinxwew · 2026-10-01T17:01:08Z

Merged the latest master (which brought the LaBraM #1155 fix and the two new tutorials) to clear the docs/whats_new.rst conflict. Both changelog entries are kept — #1155 first, the CSBrain entry right below it. The PR diff is unchanged: 9 files, +806. CI is re-running.

…model_compiled The port also Kaiming-initialised every Conv2d (temporal/region embedding, patch stem, positional conv), which the reference _weights_init does not. The residual stream then grows ~3x per layer and the default 12-layer model emits logits of ~1e4-1e5 at init, so Inductor's float32 reassociation error (~0.1 absolute) exceeds allclose(atol=1e-4) on some seeds/platforms (test_model_compiled[CSBrain] on macOS/3.13). No graph breaks are involved. Also mark the cls_token=None return with nosec B105 (Codacy/Bandit false positive, same as BrainBERT/Brant/MIRepNet).

The reference fine-tuning heads are flatten -> n_patch * 200 -> 200 -> n_outputs (e.g. 2000 hidden units for the 10 s FACED/CHB-MIT/Siena windows); the port fixed the first hidden layer at 4 * emb_dim, which matches only 4 s windows. The lazy head (no n_times) keeps 4 * emb_dim. Also correct two comments: the name-based region rule reproduces the reference PhysioNet-MI/FACED/SHU-MI/... layouts, while its BCI-IV-2a, SEED-V, SEED-VIG and Siena layouts put FC in central and PO in parietal; and without chs_info the region embedding is skipped (unmasked attention).

Keep every case of the per-model file in a CSBrain section of the shared suite, and add regression tests for the reference init (bounded residual stream), the window-dependent head width, the PhysioNet-MI name layout and the BCI-IV-2a brain_regions order. The two behaviour tests fail on c561f8a.

The reference fine-tuning models (CHB-MIT, Siena, SEED-V, ...) reorder the channels with a hand-made sorted_indices that sets the electrode ring inside each region; the stable grouping of the port differs, which changes the circular region convolution and the attention groups (random-weight parity vs the official code: 90.9 abs logit diff on Siena, 7025 on the CHB-MIT backbone). channel_order takes that permutation (validated: a permutation that groups the regions ascending) and gives 0.0 difference on both.

Review follow-up. The window-dependent head only applied when n_chans and n_times were passed explicitly; with chs_info or input_window_seconds + sfreq it fell back to the lazy 4 * emb_dim head (800 wide for 10 s windows, so the reference checkpoints could not load). Resolve both through the mixin. head_hidden_dim overrides the first hidden width for reference heads that are not n_patch * 200 wide (SEED-V: 800 for 1 s windows) and bounds the head for long windows. brain_regions is checked against n_chans; reset_head uses _set_n_outputs so the saved config follows the head.

bruAristimunha · 2026-10-05T09:34:56Z

Integration gate (braindecode maintainers)

Target: paper Table 2, PhysioNet-MI (0.6304 ± 0.0090) and BCIC-IV-2a (0.5657 ± 0.0071, test bal. acc., subjects 8-9), reproduced from the released weights + public MOABB data via NeuralBench, head 19a61c6 (add-csbrain-model). Gate: within 5% of the paper's number (or the paper's spread if larger).

Protocol (2a): the data preparation the paper used (CBraMod preprocessing_bciciv2a.py @ 92787b3, the version that yields the paper's 5,088 samples: causal order-5 Butterworth 0.3-50 Hz, [2, 6] s after trial start, per-trial CAR, 200 Hz), the reference fine-tuning model (model_for_bciciv2a.py: backbone dropout 0.1, head dropout 0.3, proj_out → Identity), finetune_CSBrain_BCI2a.sh hyperparameters, 5 seeds, best-validation epoch.

Verified: forward parity port-vs-original is exact (max-abs diff 0.0) on both datasets; 19a61c6 is forward-identical to the heads measured before. The released 2a fine-tuned checkpoint scores 0.577 on the full test set (A08+A09), matching its file name; it was trained on subjects 1-5 and its epoch was picked on validation, so there is no leak. (An earlier "0.667-0.719" came from a 96-trial debug subset and should be ignored.)

Results (updated 2026-10-06):

cell	port (5 seeds)	authors' code, authors' data prep (5 seeds)	paper	port vs paper
PhysioNet-MI	0.6135 ± 0.0045	—	0.6304 ± 0.0090	−2.7% ✅
BCIC-IV-2a	0.5146 ± 0.0356	0.5062 ± 0.0073	0.5657 ± 0.0071	−9.0% ❌

Verdict: the port matches the reference implementation; the 2a paper number does not reproduce upstream. Running the authors' released finetune_main.py unmodified on the authors' own preprocessing of the same raw files gives 0.506, and the port is within 1.7% of that. The remaining gap to 0.5657 is outside braindecode and NeuralBench, so it goes to the maintainers to decide. Nothing needed from you for this.

Small API note, not blocking: braindecode's single drop_prob sets both the backbone and the head dropout. The reference fine-tuning scripts use 0.1 in the backbone and --dropout in the head (now documented in the docstring at 19a61c6, thanks).

Licence: CSBrain ships no LICENSE file upstream, so no checkpoint mirror on the Hub until that is settled.

qinxwew · 2026-10-05T12:26:06Z

Thanks for running the integration gate — the exact parity check (max-abs diff 0.0 on both datasets, including after remapping the FeedForwardBlock keys) and the PhysioNet-MI number (0.6135 ± 0.0045 vs paper 0.6304) are exactly the kind of external validation this needed. Noted on the 2a epoch-alignment fix too.

On the LICENSE question — agreed, and here is where it stands:

This PR is an independent re-implementation: it ships no weights, no checkpoint files, and no from_pretrained loader. So the code itself is not redistribution of upstream material and isn't gated on upstream's terms.
Upstream still ships no LICENSE. I opened yuchen2199/CSBrain#7 on 2026-09-30 asking them to add an open-source license (MIT / Apache-2.0 / BSD) — no reply yet.
So I'll hold your line: no checkpoint mirror on the Hub until redistribution terms are confirmed. That supersedes my earlier "assume BSD or unlicense" framing.

Once #7 lands, I have the original CSBrain.pth plus a key-mapped state_dict and both SHA-256 hashes ready to hand over for re-hosting.

One concrete gap worth flagging on the checkpoint side. On f31f25f the encoder params are now encoder.N.ff_block.0.* / encoder.N.ff_block.3.* (48 tensors, zero linear1/linear2 left), whereas the released CSBrain.pth carries linear1/linear2. Since this PR ships no loader, anyone dropping the released weights in by hand will hit a key mismatch. Happy to add either:

a small from_pretrained-style helper with the linear1→ff_block.0 / linear2→ff_block.3 remap baked in, or
a short doc note recording the mapping.

Which would you prefer? (1) is a bit more code but makes the released weights drop-in; (2) keeps the PR lean. I'll go either way.

# Conflicts: # test/unit_tests/models/test_models.py

…SBrain Review follow-up on the integration gate note: the reference fine-tuning scripts keep the backbone at 0.1 and raise only the head dropout, which a single drop_prob cannot express; document the wrapper/subclass recipe.

qinxwew · 2026-10-06T04:16:03Z

Thanks @bruAristimunha for the updated gate — good to see 2a move once the fine-tuning config matches models/model_for_bciciv2a.py (backbone dropout 0.1, proj_out swapped for nn.Identity()), and for pinning the remaining gap to the fine-tuning side rather than the model.

Two follow-ups on the new head:

Merge: master's model additions (Add iEEG MAPA model #1178, Add BrainTokenizer, the BrainOmni EEG/MEG VQ-VAE tokenizer #1230, [models] Add SeizureTransformer #1236) conflicted with the CSBrain test section in test/unit_tests/models/test_models.py; merged origin/master in and kept both sections (SeizureTransformer first, CSBrain after). whats_new.rst and the other registration points merged cleanly.
API note: added a docstring note on drop_prob documenting that it sets both the backbone and the head dropout, and that the reference fine-tuning recipe (backbone 0.1, head --dropout 0.3 for 2a) needs a thin subclass/wrapper for the head. I kept the single-parameter API unchanged for now — happy to add a separate head_drop_prob argument instead if you prefer that direction.

csbrain.py logic is unchanged in this push (merge + docstring only), so the parity checks on f31f25f remain valid for the model itself.

qinxwew · 2026-10-06T04:46:01Z

CI note on test (windows-latest, 3.12) (head 19a61c6e): the job aborted with a runner-side ##[error]There is not enough space on the disk at ~62% of the suite. The tests it marked FAILED just before dying are all save/load round-trip tests (test_return_features.py for BENDR/CBraMod/EEGDINO/LaBraM, test_signal_jepa.py HF round-trips) — none of them touched by this PR, and all of them disk-write-heavy, which matches the disk-exhaustion timing. The same head passed on windows-latest, 3.13, pointing at the runner rather than the code. Fork accounts can't re-run workflow jobs, so documenting here instead.

bruAristimunha

Thanks for the port and the patience! Replication on Voyager via NeuralBench: on BCIC-IV-2a this port gives 0.515, matching the authors' own released code run with their own data preparation (0.506 +/- 0.007); the paper's 0.566 is not reached by the released code itself (no train/test leak, no test-set selection), so the port is faithful to the released system. PhysioNet-MI 0.6135 vs 0.6304 (-2.7%). CI green.

qinxwew added 3 commits September 30, 2026 12:49

Exempt CSBrain from torch.jit.script test like CBraMod/CodeBrain

8eb7a0c

Add whats_new entry for CSBrain PR

8a472cd

qinxwew force-pushed the add-csbrain-model branch from c75645a to 8a472cd Compare September 30, 2026 08:01

qinxwew mentioned this pull request Sep 30, 2026

Include the CSBrain #1077

Closed

Merge remote-tracking branch 'origin/master' into add-csbrain-model

c561f8a

# Conflicts: # docs/whats_new.rst

bruAristimunha added 5 commits October 1, 2026 21:09

bruAristimunha mentioned this pull request Oct 2, 2026

Integrate new EEG foundation models and supervised baselines #1201

Open

bruAristimunha added 2 commits October 4, 2026 15:52

Merge remote-tracking branch 'origin/master' into add-csbrain-model

af910a0

FIX reuse FeedForwardBlock for CSBrain encoder's ff_block

f31f25f

bruAristimunha added model Adds a new model needs-replication Model PR: paper number must be replicated (NeuralBench) before merge labels Oct 5, 2026

qinxwew added 2 commits October 6, 2026 12:06

Merge remote-tracking branch 'origin/master' into add-csbrain-model

7f02458

# Conflicts: # test/unit_tests/models/test_models.py

bruAristimunha approved these changes Oct 6, 2026

View reviewed changes

bruAristimunha merged commit c282258 into braindecode:master Oct 6, 2026
19 of 20 checks passed

bruAristimunha mentioned this pull request Oct 6, 2026

CSBrain: reuse CBraMod's patch embedding; fix CBraMod patch_size != 200 #1240

Merged

qinxwew mentioned this pull request Oct 6, 2026

[No Code] More models for braindecode #375

Open

This was referenced Oct 7, 2026

CSBrain: add head_drop_prob; document checkpoint key names #1247

Merged

MAINT CI: delete passing tests' tmp_path (Windows out of disk); acceptance on 3.13 #1251

Open
