Memory leak in LayoutInflater.Inflate method when using custom view in XML layout.

Android framework version

net10.0-android

Affected platform version

VS 18.4.11626.88 & 36.1.30/10.0.100

Description

The LayoutInflater.Inflate method can cause a memory leak if the XML layout contains a reference to a custom .net view. A regression has been observed in net10-android. The same code works correctly in net9-android.

Minimal repro in attachment. The example contains a reference counter. You can switch the project from net10-android to net9-android to see the change in behavior.

net10-android-memory-leak-on-inflate.zip

https://github.com/anton-yashin/net10-android-memory-leak-on-inflate

Steps to Reproduce

Create new net10-android application
Add custom view

internal sealed class CustomView : global::Android.Views.View
        {
            public CustomView(Context? context) : base(context) { }
            public CustomView(nint javaReference, JniHandleOwnership transfer) : base(javaReference, transfer) { }
            public CustomView(Context? context, IAttributeSet? attrs) : base(context, attrs) { }
            public CustomView(Context? context, IAttributeSet? attrs, int defStyleAttr) : base(context, attrs, defStyleAttr) { }
            public CustomView(Context? context, IAttributeSet? attrs, int defStyleAttr, int defStyleRes) : base(context, attrs, defStyleAttr, defStyleRes) { }
        }

Add layout

<FrameLayout
	xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
	>

	<AndroidApp2.CustomView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
		/>

</FrameLayout>

Inflate it's somewhere

LayoutInflater.Inflate(Resource.Layout.test, null, false);

Observe memory leak

android-memory-leak.zip

Did you find any workaround?

Nothing.

Relevant log output

maybe related to #10989

How did you "observe" the memory leak?

Was the C#/managed object leaking? or the Java one?

Moved repro in repo with dumps included. These dumps not include reference counter via ConditionalWeakTable. I am comment out ReferenceCounter.AddReferenceAndPrint(this) in CustomView before collect dump data.

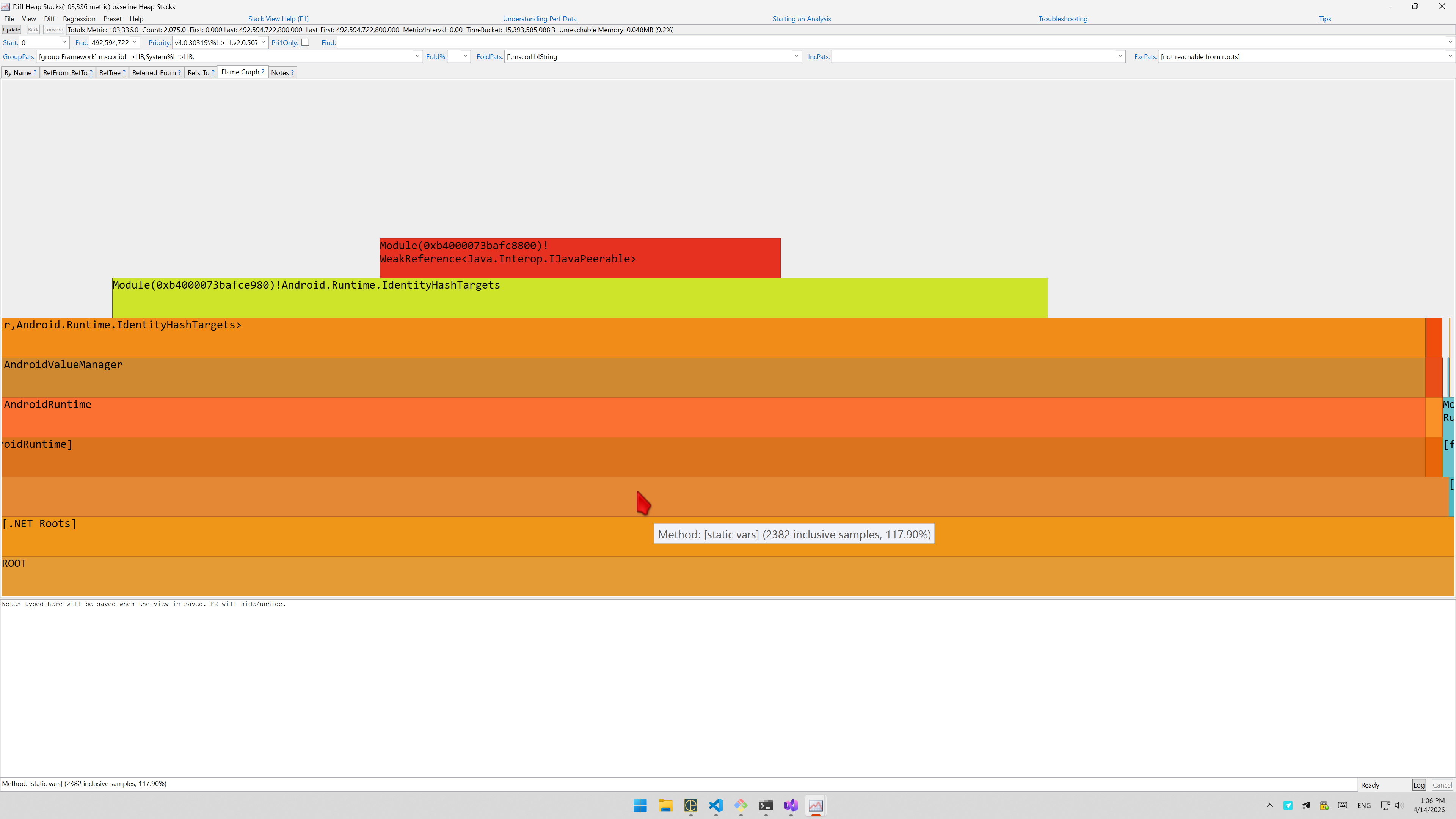

Difference between managed dotnet-gcdump show there no active references to custom view

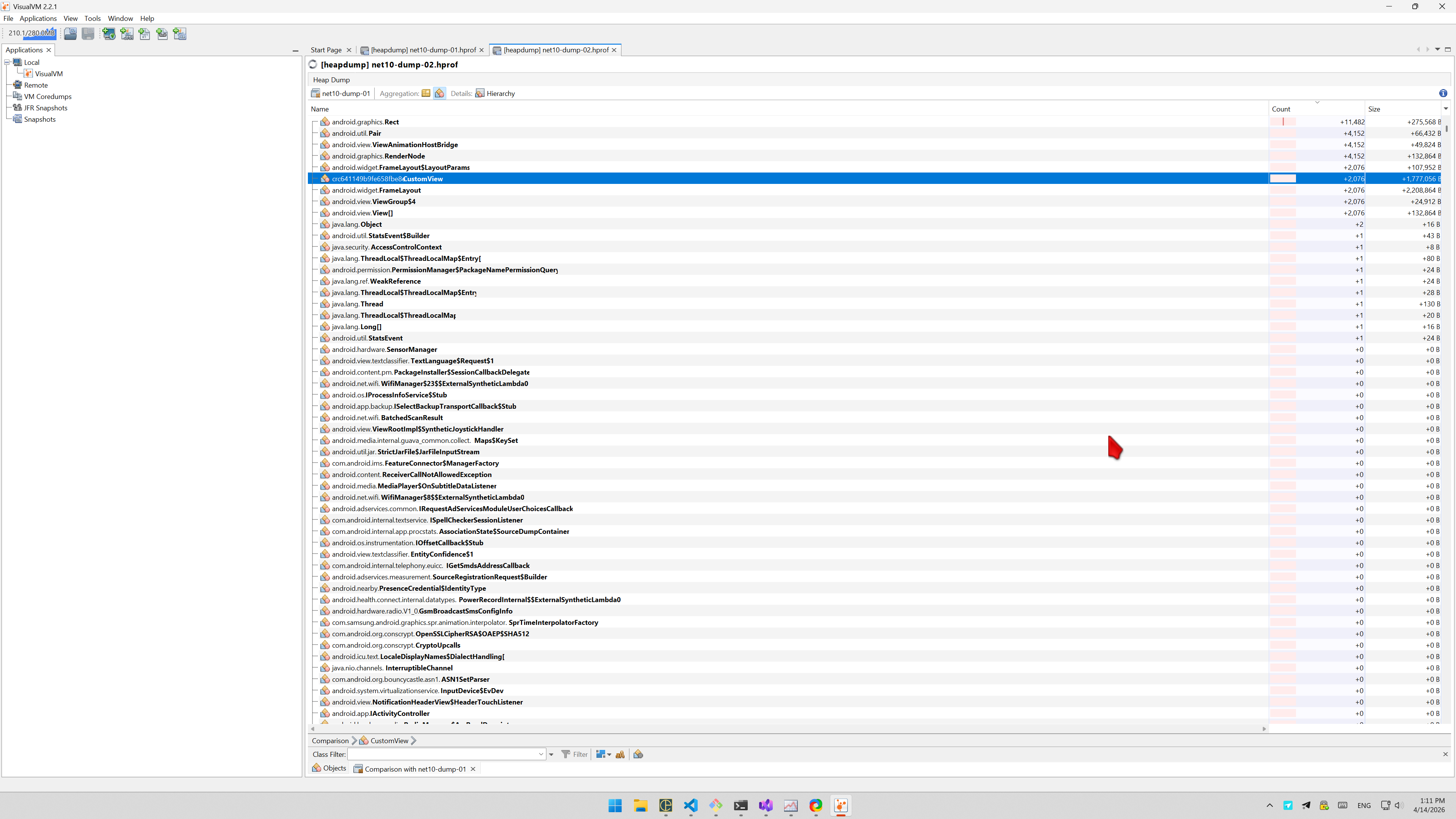

Difference between native am dumpheap shows a native references that not got disposed after GC invoke

If there an active reference counter then you can watch in TextView that count of managed references to CustomView going to increase. I don't know how it's works :(

On net9 there no leaks.

Add diagnostic logging for peer lifecycle tracing

Fix race condition: use ConstructPeer before constructor in activation

[Mono.Android] fix global ref leak in TypeManager.Activate (#11101)

[Mono.Android] fix global ref leak in TypeManager.Activate

[Java.Interop] fix global ref leak in ConstructPeer

Bump to dotnet/java-interop/dev/peppers/gref-leak; add regression test

Add regression test for global ref leak in LayoutInflater.Inflate

[tests] Add regression test for global ref leak in LayoutInflater.Inf…

[Java.Interop] fix global ref leak in ConstructPeer (dotnet#1403)

[Java.Interop] fix global ref leak in ConstructPeer (#1403)

[tests] Add regression test for global ref leak in LayoutInflater.Inf…

[Java.Interop] fix global ref leak in ConstructPeer (#1403)
