import 'package:flutter/material.dart';
enum ThemeType {
defaultFactory,
themeDataFrom,
themeDataColorSchemeSeed,
}
// A seed color for M3 ColorScheme, the M3 baseline seed color.
const Color seedColor = Color(0xFF6750A4);
// Example themes
ThemeData demoTheme(Brightness mode, bool useMaterial3, ThemeType type) {
// Make an M3 ColorScheme.from seed
final ColorScheme scheme = ColorScheme.fromSeed(
brightness: mode,
seedColor: seedColor,
);
switch (type) {
case ThemeType.defaultFactory:
return ThemeData(
colorScheme: scheme,
useMaterial3: useMaterial3,
);
case ThemeType.themeDataFrom:
return ThemeData.from(
colorScheme: scheme,
useMaterial3: useMaterial3,
);
case ThemeType.themeDataColorSchemeSeed:
return ThemeData(
brightness: mode,
colorSchemeSeed: seedColor,
useMaterial3: useMaterial3,
);
}
}
void main() {
runApp(const IssueDemoApp());
}
class IssueDemoApp extends StatefulWidget {
const IssueDemoApp({super.key});
@override
State<IssueDemoApp> createState() => _IssueDemoAppState();
}
class _IssueDemoAppState extends State<IssueDemoApp> {
bool useMaterial3 = true;
ThemeMode themeMode = ThemeMode.light;
ThemeType themeType = ThemeType.themeDataFrom;
@override
Widget build(BuildContext context) {
return MaterialApp(
debugShowCheckedModeBanner: false,
themeMode: themeMode,
theme: demoTheme(Brightness.light, useMaterial3, themeType),
darkTheme: demoTheme(Brightness.dark, useMaterial3, themeType),
home: Scaffold(
appBar: AppBar(

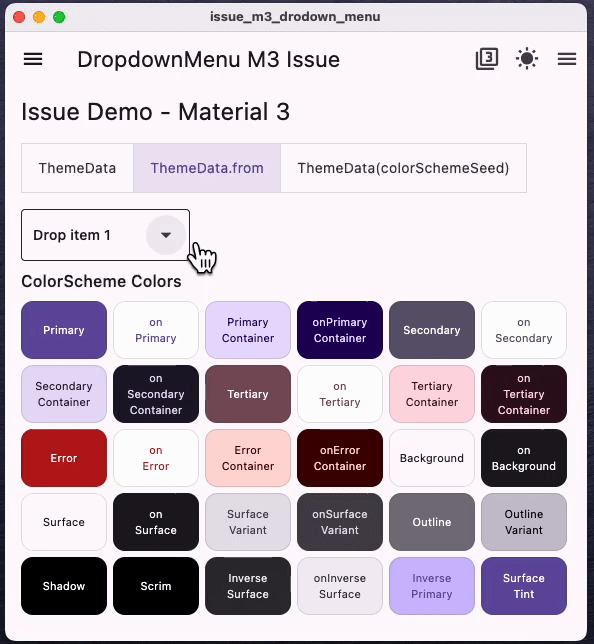

title: const Text('DropdownMenu M3 Issue'),
actions: [
IconButton(
icon: useMaterial3
? const Icon(Icons.filter_3)
: const Icon(Icons.filter_2),
onPressed: () {
setState(() {
useMaterial3 = !useMaterial3;
});
},
tooltip: "Switch to Material ${useMaterial3 ? 2 : 3}",
),
IconButton(
icon: themeMode == ThemeMode.dark
? const Icon(Icons.wb_sunny_outlined)
: const Icon(Icons.wb_sunny),
onPressed: () {
setState(() {
if (themeMode == ThemeMode.light) {
themeMode = ThemeMode.dark;
} else {
themeMode = ThemeMode.light;
}
});
},
tooltip: "Toggle brightness",
),
Builder(builder: (context) {
return IconButton(
icon: const Icon(Icons.menu),
onPressed: () {
Scaffold.of(context).openEndDrawer();
},
);
}),
],
),
body: HomePage(
themeType: themeType,
onChanged: (ThemeType value) {
setState(() {
themeType = value;
});
},
),
drawer: const Drawer(
child: Center(child: Text('Drawer')),
),
endDrawer: const Drawer(
child: Center(child: Text('End Drawer')),
),
),
);
}
}
class HomePage extends StatelessWidget {
const HomePage({super.key, this.themeType, this.onChanged});
final ThemeType? themeType;
final ValueChanged<ThemeType>? onChanged;
@override
Widget build(BuildContext context) {
final ThemeData theme = Theme.of(context);
final String materialType =
theme.useMaterial3 ? "Material 3" : "Material 2";
return ListView(
padding: const EdgeInsets.symmetric(horizontal: 16),
children: [
const SizedBox(height: 8),
Text(
'Issue Demo - $materialType',
style: theme.textTheme.headlineSmall,
),
const SizedBox(height: 16),
ThemeTypeButtons(
themeType: themeType,
onChanged: onChanged,
),
const SizedBox(height: 16),
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: const <Widget>[
DropDownMenuShowcase(),
],
),
const ShowColorSchemeColors(),
const SizedBox(height: 16),
const ShowThemeDataColors(),
],
);
}
}
class ThemeTypeButtons extends StatelessWidget {
const ThemeTypeButtons({
super.key,
this.themeType,
this.onChanged,
});
final ThemeType? themeType;
final ValueChanged<ThemeType>? onChanged;
@override
Widget build(BuildContext context) {
final List<bool> isSelected = <bool>[
themeType == ThemeType.defaultFactory,
themeType == ThemeType.themeDataFrom,
themeType == ThemeType.themeDataColorSchemeSeed,
];
return ToggleButtons(
isSelected: isSelected,
onPressed: onChanged == null
? null
: (int newIndex) {
onChanged?.call(ThemeType.values[newIndex]);
},
children: const <Widget>[
Padding(
padding: EdgeInsets.symmetric(horizontal: 16.0),
child: Text('ThemeData'),
),
Padding(
padding: EdgeInsets.symmetric(horizontal: 16.0),
child: Text('ThemeData.from'),
),
Padding(
padding: EdgeInsets.symmetric(horizontal: 16.0),
child: Text('ThemeData(colorSchemeSeed)'),
),
],
);
}
}
class DropDownMenuShowcase extends StatefulWidget {
const DropDownMenuShowcase({super.key});
@override
State<DropDownMenuShowcase> createState() => _DropDownMenuShowcaseState();
}
class _DropDownMenuShowcaseState extends State<DropDownMenuShowcase> {
String selectedItem = 'one';
@override
Widget build(BuildContext context) {
return DropdownMenu<String>(
initialSelection: selectedItem,
onSelected: (String? value) {
setState(() {
selectedItem = value ?? 'one';
});
},
dropdownMenuEntries: const <DropdownMenuEntry<String>>[
DropdownMenuEntry<String>(
label: 'Drop item 1',
value: 'one',
),
DropdownMenuEntry<String>(
label: 'Drop item 2',
value: 'two',
),
DropdownMenuEntry<String>(
label: 'Drop item 3',
value: 'three',
),
DropdownMenuEntry<String>(
label: 'Drop item 4',
value: 'four',
),
],
);
}
}
/// Draw a number of boxes showing the colors of key theme color properties
/// in the ColorScheme of the inherited ThemeData and its color properties.
class ShowColorSchemeColors extends StatelessWidget {
const ShowColorSchemeColors({super.key, this.onBackgroundColor});
/// The color of the background the color widget are being drawn on.
///
/// Some of the theme colors may have semi transparent fill color. To compute
/// a legible text color for the sum when it shown on a background color, we
/// need to alpha merge it with background and we need the exact background
/// color it is drawn on for that. If not passed in from parent, it is
/// assumed to be drawn on card color, which usually is close enough.
final Color? onBackgroundColor;
// Return true if the color is light, meaning it needs dark text for contrast.
static bool _isLight(final Color color) =>
ThemeData.estimateBrightnessForColor(color) == Brightness.light;
// On color used when a theme color property does not have a theme onColor.
static Color _onColor(final Color color, final Color bg) =>
_isLight(Color.alphaBlend(color, bg)) ? Colors.black : Colors.white;
@override
Widget build(BuildContext context) {
final ThemeData theme = Theme.of(context);
final ColorScheme colorScheme = theme.colorScheme;
final bool useMaterial3 = theme.useMaterial3;
// Grab the card border from the theme card shape
ShapeBorder? border = theme.cardTheme.shape;
// If we had one, copy in a border side to it.
if (border is RoundedRectangleBorder) {
border = border.copyWith(
side: BorderSide(
color: theme.dividerColor,
width: 1,
),
);
// If
} else {
// If border was null, make one matching Card default, but with border
// side, if it was not null, we leave it as it was.
border ??= RoundedRectangleBorder(
borderRadius: BorderRadius.all(Radius.circular(useMaterial3 ? 12 : 4)),
side: BorderSide(
color: theme.dividerColor,
width: 1,
),
);
}
// Get effective background color.
final Color background =
onBackgroundColor ?? theme.cardTheme.color ?? theme.cardColor;
// Wrap this widget branch in a custom theme where card has a border outline
// if it did not have one, but retains in ambient themed border radius.
return Theme(
data: Theme.of(context).copyWith(
cardTheme: CardTheme.of(context).copyWith(
elevation: 0,
shape: border,
),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: <Widget>[
Padding(
padding: const EdgeInsets.symmetric(vertical: 8),
child: Text(
'ColorScheme Colors',
style: theme.textTheme.titleMedium,
),
),
Wrap(
alignment: WrapAlignment.start,
crossAxisAlignment: WrapCrossAlignment.center,
spacing: 6,
runSpacing: 6,
children: <Widget>[
ColorCard(
label: 'Primary',
color: colorScheme.primary,
textColor: colorScheme.onPrimary,
),
ColorCard(
label: 'on\nPrimary',
color: colorScheme.onPrimary,
textColor: colorScheme.primary,
),
ColorCard(
label: 'Primary\nContainer',
color: colorScheme.primaryContainer,
textColor: colorScheme.onPrimaryContainer,
),
ColorCard(
label: 'onPrimary\nContainer',
color: colorScheme.onPrimaryContainer,
textColor: colorScheme.primaryContainer,
),
ColorCard(
label: 'Secondary',
color: colorScheme.secondary,
textColor: colorScheme.onSecondary,
),
ColorCard(
label: 'on\nSecondary',
color: colorScheme.onSecondary,
textColor: colorScheme.secondary,
),
ColorCard(
label: 'Secondary\nContainer',
color: colorScheme.secondaryContainer,
textColor: colorScheme.onSecondaryContainer,
),
ColorCard(
label: 'on\nSecondary\nContainer',
color: colorScheme.onSecondaryContainer,
textColor: colorScheme.secondaryContainer,
),
ColorCard(
label: 'Tertiary',
color: colorScheme.tertiary,
textColor: colorScheme.onTertiary,
),
ColorCard(
label: 'on\nTertiary',
color: colorScheme.onTertiary,
textColor: colorScheme.tertiary,
),
ColorCard(
label: 'Tertiary\nContainer',
color: colorScheme.tertiaryContainer,
textColor: colorScheme.onTertiaryContainer,
),
ColorCard(
label: 'on\nTertiary\nContainer',
color: colorScheme.onTertiaryContainer,
textColor: colorScheme.tertiaryContainer,
),
ColorCard(
label: 'Error',
color: colorScheme.error,
textColor: colorScheme.onError,
),
ColorCard(
label: 'on\nError',
color: colorScheme.onError,
textColor: colorScheme.error,
),
ColorCard(
label: 'Error\nContainer',
color: colorScheme.errorContainer,
textColor: colorScheme.onErrorContainer,
),
ColorCard(
label: 'onError\nContainer',
color: colorScheme.onErrorContainer,
textColor: colorScheme.errorContainer,
),
ColorCard(
label: 'Background',
color: colorScheme.background,
textColor: colorScheme.onBackground,
),
ColorCard(
label: 'on\nBackground',
color: colorScheme.onBackground,
textColor: colorScheme.background,
),
ColorCard(
label: 'Surface',
color: colorScheme.surface,
textColor: colorScheme.onSurface,
),
ColorCard(
label: 'on\nSurface',
color: colorScheme.onSurface,
textColor: colorScheme.surface,
),
ColorCard(
label: 'Surface\nVariant',
color: colorScheme.surfaceVariant,
textColor: colorScheme.onSurfaceVariant,
),
ColorCard(
label: 'onSurface\nVariant',
color: colorScheme.onSurfaceVariant,
textColor: colorScheme.surfaceVariant,
),
ColorCard(
label: 'Outline',
color: colorScheme.outline,
textColor: colorScheme.background,
),
ColorCard(
label: 'Outline\nVariant',
color: colorScheme.outlineVariant,
textColor: _onColor(colorScheme.outlineVariant, background),
),
ColorCard(
label: 'Shadow',
color: colorScheme.shadow,
textColor: _onColor(colorScheme.shadow, background),
),
ColorCard(
label: 'Scrim',
color: colorScheme.scrim,
textColor: _onColor(colorScheme.scrim, background),
),
ColorCard(
label: 'Inverse\nSurface',
color: colorScheme.inverseSurface,
textColor: colorScheme.onInverseSurface,
),
ColorCard(
label: 'onInverse\nSurface',
color: colorScheme.onInverseSurface,
textColor: colorScheme.inverseSurface,
),
ColorCard(
label: 'Inverse\nPrimary',
color: colorScheme.inversePrimary,
textColor: colorScheme.primary,
),
ColorCard(
label: 'Surface\nTint',
color: colorScheme.surfaceTint,
textColor: colorScheme.onPrimary,
),
],
),
],
),
);
}
}
/// Draw a number of boxes showing the colors of key theme color properties
/// in the ColorScheme of the inherited ThemeData and some of its key color
/// properties.
class ShowThemeDataColors extends StatelessWidget {
const ShowThemeDataColors({
super.key,
this.onBackgroundColor,
});
/// The color of the background the color widget are being drawn on.
///
/// Some of the theme colors may have semi-transparent fill color. To compute
/// a legible text color for the sum when it shown on a background color, we
/// need to alpha merge it with background and we need the exact background
/// color it is drawn on for that. If not passed in from parent, it is
/// assumed to be drawn on card color, which usually is close enough.
final Color? onBackgroundColor;
// Return true if the color is light, meaning it needs dark text for contrast.
static bool _isLight(final Color color) =>
ThemeData.estimateBrightnessForColor(color) == Brightness.light;
// On color used when a theme color property does not have a theme onColor.
static Color _onColor(final Color color, final Color background) =>
_isLight(Color.alphaBlend(color, background))
? Colors.black
: Colors.white;
@override
Widget build(BuildContext context) {
final ThemeData theme = Theme.of(context);
final bool useMaterial3 = theme.useMaterial3;
// Grab the card border from the theme card shape
ShapeBorder? border = theme.cardTheme.shape;
// If we had one, copy in a border side to it.
if (border is RoundedRectangleBorder) {
border = border.copyWith(
side: BorderSide(
color: theme.dividerColor,
width: 1,
),
);
} else {
// If border was null, make one matching Card default, but with border
// side, if it was not null, we leave it as it was.
border ??= RoundedRectangleBorder(
borderRadius: BorderRadius.all(Radius.circular(useMaterial3 ? 12 : 4)),
side: BorderSide(
color: theme.dividerColor,
width: 1,
),
);
}
// Get effective background color.
final Color background =
onBackgroundColor ?? theme.cardTheme.color ?? theme.cardColor;
// Wrap this widget branch in a custom theme where card has a border outline
// if it did not have one, but retains in ambient themed border radius.
return Theme(
data: Theme.of(context).copyWith(
cardTheme: CardTheme.of(context).copyWith(
elevation: 0,
shape: border,
),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: <Widget>[
Padding(
padding: const EdgeInsets.only(top: 8),
child: Text(
'ThemeData Colors',
style: theme.textTheme.titleMedium,
),
),
const SizedBox(height: 8),
Wrap(
spacing: 6,
runSpacing: 6,
crossAxisAlignment: WrapCrossAlignment.center,
children: <Widget>[
ColorCard(
label: 'Primary\nColor',
color: theme.primaryColor,
textColor: _onColor(theme.primaryColor, background),
),
ColorCard(
label: 'Primary\nDark',
color: theme.primaryColorDark,
textColor: _onColor(theme.primaryColorDark, background),
),
ColorCard(
label: 'Primary\nLight',
color: theme.primaryColorLight,
textColor: _onColor(theme.primaryColorLight, background),
),
ColorCard(
label: 'Secondary\nHeader',
color: theme.secondaryHeaderColor,
textColor: _onColor(theme.secondaryHeaderColor, background),
),
ColorCard(
label: 'Canvas',
color: theme.canvasColor,
textColor: _onColor(theme.canvasColor, background),
),
ColorCard(
label: 'Card',
color: theme.cardColor,
textColor: _onColor(theme.cardColor, background),
),
ColorCard(
label: 'Scaffold\nBackground',
color: theme.scaffoldBackgroundColor,
textColor: _onColor(theme.scaffoldBackgroundColor, background),
),
ColorCard(
label: 'Dialog',
color: theme.dialogBackgroundColor,
textColor: _onColor(theme.dialogBackgroundColor, background),
),
ColorCard(
label: 'Indicator\nColor',
color: theme.indicatorColor,
textColor: _onColor(theme.indicatorColor, background),
),
ColorCard(
label: 'Divider\nColor',
color: theme.dividerColor,
textColor: _onColor(theme.dividerColor, background),
),
ColorCard(
label: 'Disabled\nColor',
color: theme.disabledColor,
textColor: _onColor(theme.disabledColor, background),
),
ColorCard(
label: 'Hover\nColor',
color: theme.hoverColor,
textColor: _onColor(theme.hoverColor, background),
),
ColorCard(
label: 'Focus\nColor',
color: theme.focusColor,
textColor: _onColor(theme.focusColor, background),
),
ColorCard(
label: 'Highlight\nColor',
color: theme.highlightColor,
textColor: _onColor(theme.highlightColor, background),
),
ColorCard(
label: 'Splash\nColor',
color: theme.splashColor,
textColor: _onColor(theme.splashColor, background),
),
ColorCard(
label: 'Shadow\nColor',
color: theme.shadowColor,
textColor: _onColor(theme.shadowColor, background),
),
ColorCard(
label: 'Hint\nColor',
color: theme.hintColor,
textColor: _onColor(theme.hintColor, background),
),
ColorCard(
label: 'Unselected\nWidget',
color: theme.unselectedWidgetColor,
textColor: _onColor(theme.unselectedWidgetColor, background),
),
],
),
],
),
);
}
}
class ColorCard extends StatelessWidget {
const ColorCard({
super.key,
required this.label,
required this.color,
required this.textColor,
this.size,
});
final String label;
final Color color;
final Color textColor;
final Size? size;
@override
Widget build(BuildContext context) {
return SizedBox(
width: 86,
height: 58,
child: Card(
margin: EdgeInsets.zero,
clipBehavior: Clip.antiAlias,
color: color,
child: Center(
child: Text(
label,
style: TextStyle(color: textColor, fontSize: 11),
textAlign: TextAlign.center,
),
),
),
);
}
}
(M3) DropdownMenu Does Not Open Consistently via Menu Icon
The new M3 widget
DropdownMenuhas erratic or inconsistent behavior if one tries to open the menu via the default down arrow.Expected results
Expected the menu to open when clicking on the menu field OR menu icon.
Actual results
The
DropdownMenuopens nicely when the menu input field is clicked, but not when the default menu icon is clicked. If the menu icon is clicked rapidly many time, the menu may sometimes open.Issue demo code
Code sample
Used Flutter Version
Channel master, 3.7.0-16.0.pre.15
Flutter doctor
