ModalBottomSheet with isScrollControlled doesn't respect SafeArea

Steps to Reproduce

Create a modal bottom sheet with Scaffold as its child
Wrap the Scaffold into a SafeArea widget
Add a Text widget in Scaffold's body
Run the application on a device with notch
Open the modal bottom sheet and notice that the text is under the status bar

Code example

import 'package:flutter/material.dart';

class ModalBottomSheet extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(),
      body: Container(),
      floatingActionButton: FloatingActionButton(
        onPressed: () {
          showModalBottomSheet(
              context: context,
              isScrollControlled: true,
              builder: (context) {
                return SafeArea(
                  child: Scaffold(
                    backgroundColor: Colors.black45,
                    body: Text(
                      'Text in safe area',
                      style: TextStyle(backgroundColor: Colors.red),
                    ),
                  ),
                );
              });
        },
        child: Icon(Icons.add),
      ),
    );
  }
}

Screenshots

Logs

[✓] Flutter (Channel stable, v1.7.8+hotfix.4, on Mac OS X 10.14.6 18G87, locale en-US)
    • Flutter version 1.7.8+hotfix.4 at /Users/user/flutter
    • Framework revision 20e59316b8 (5 weeks ago), 2019-07-18 20:04:33 -0700
    • Engine revision fee001c93f
    • Dart version 2.4.0


[✓] Android toolchain - develop for Android devices (Android SDK version 28.0.3)
    • Android SDK at /Users/user/Library/Android/sdk
    • Android NDK location not configured (optional; useful for native profiling support)
    • Platform android-28, build-tools 28.0.3
    • Java binary at: /Applications/Android Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 1.8.0_152-release-1343-b01)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 10.3)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 10.3, Build version 10G8
    • CocoaPods version 1.7.5

[✗] iOS tools - develop for iOS devices
    ✗ libimobiledevice and ideviceinstaller are not installed. To install with Brew, run:
        brew update
        brew install --HEAD usbmuxd
        brew link usbmuxd
        brew install --HEAD libimobiledevice
        brew install ideviceinstaller
    ✗ ios-deploy not installed. To install:
        brew install ios-deploy
    ! Brew can be used to install tools for iOS device development.
      Download brew at https://brew.sh/.

[✓] Android Studio (version 3.4)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin version 37.0.1
    • Dart plugin version 183.6270
    • Java version OpenJDK Runtime Environment (build 1.8.0_152-release-1343-b01)

[✓] VS Code (version 1.37.1)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.3.0

[✓] Connected device (2 available)
    • Android SDK built for x86 • emulator-5554                        • android-x86 • Android 9 (API 28) (emulator)
    • iPhone Xs Max             • 9C9C7B29-18A5-4D3A-8F53-CE6EB58C5411 • ios         • com.apple.CoreSimulator.SimRuntime.iOS-12-4 (simulator)

! Doctor found issues in 1 category.

In bottom_sheet.dart, use MediaQuery.removePadding(removeTop: true).

  @override
  Widget buildPage(BuildContext context, Animation<double> animation, Animation<double> secondaryAnimation) {
    // By definition, the bottom sheet is aligned to the bottom of the page
    // and isn't exposed to the top padding of the MediaQuery.
    Widget bottomSheet = MediaQuery.removePadding(
      context: context,
      removeTop: true,
      child: _ModalBottomSheet<T>(
        route: this,
        backgroundColor: backgroundColor,
        elevation: elevation,
        shape: shape,
        isScrollControlled: isScrollControlled
      ),
    );

For that reason, builder's context no have paddingTop, so ModalBottomSheet doesn't respect SafeArea.

Fix it if I change the code this:

    Widget bottomSheet = SafeArea(
      top: false,
      child: _ModalBottomSheet<T>(
        route: this,
        backgroundColor: backgroundColor,
        elevation: elevation,
        shape: shape,
        isScrollControlled: isScrollControlled,
      ),
    );

But... I am not familiar with ModalBottomSheet's use case. I don't know if this can handle various cases.

Workaround:

Declare InheritedWidget that holds MediaQueryData:

class RootMediaQueryDataHolder extends InheritedWidget {
  final MediaQueryData data;

  RootMediaQueryDataHolder({
    Key key,
    @required this.data,
    @required Widget child,
  })  : assert(data != null),
        super(key: key, child: child);

  @override
  bool updateShouldNotify(InheritedWidget oldWidget) => false;

  static RootMediaQueryDataHolder of(BuildContext context) {
    return context.inheritFromWidgetOfExactType(RootMediaQueryDataHolder);
  }
}

Insert it into your MaterialApp:

    return MaterialApp(
      ...
      builder: (context, child) {
        return RootMediaQueryDataHolder(
          data: MediaQuery.of(context),
          child: child,
        );
      },
    );

Get the data in your modal bottom sheet:

final topPadding = RootMediaQueryDataHolder.of(context).data.padding.top;

@workerbee22

Has anyone tried to replicate this issue with persistent bottom sheet? Seeing this on stable Flutter 1.91. @workerbee22

has any solution??

Any news on this issue ?
Those guys have pinpointed the source of the issue and fixed it ...
jonataslaw/getx#44

any update?, I have the same issue. MediaQuery.of(context).padding.top returns 0 in this case

@cuong1112035

@cuong1112035 I had same issue, and I find the reason. the context is showModalSheet context. you can try to get the main context like this code:

Main dart file

BuildContext mainContext = context;
var res = await showModalBottomSheet(
  context: context,
  isScrollControlled: true,
  builder: (BuildContext context) {
    return CalendarAddWidget(
      context: mainContext,
    );
  },
);

and using the mainContext to set MediaQuery.of(widget.context).padding.top.

CalendarAddWidget dart file

return Container(
  padding: EdgeInsets.only(
    top: MediaQuery.of(widget.context).padding.top,
  ),
  child: ...
);

That's solve my problem. :D

Code Sample

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Material App',
      theme: ThemeData.dark(),
      home: ModalBottomSheet(),
    );
  }
}

class Home extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('Material App Bar'),
      ),
      body: Center(
        child: Container(
          child: Text('Hello World'),
        ),
      ),
      floatingActionButton: FloatingActionButton(
        child: Icon(Icons.add),
        onPressed: () {},
      ),
    );
  }
}

class ModalBottomSheet extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(),
      body: Container(),
      floatingActionButton: FloatingActionButton(
        onPressed: () {
          showModalBottomSheet(
              context: context,
              isScrollControlled: true,
              builder: (context) {
                return SafeArea(
                  child: Scaffold(
                    backgroundColor: Colors.black45,
                    body: Text(
                      'Text in safe area',
                      style: TextStyle(backgroundColor: Colors.red),
                    ),
                  ),
                );
              });
        },
        child: Icon(Icons.add),
      ),
    );
  }
}

flutter doctor -v

[✓] Flutter (Channel dev, 1.20.0-2.0.pre, on Mac OS X 10.15.5 19F101, locale
    en-GB)
    • Flutter version 1.20.0-2.0.pre at /Users/tahatesser/Code/flutter_dev
    • Framework revision 15a28159bc (8 days ago), 2020-06-23 04:52:58 -0700
    • Engine revision 91a63d6a44
    • Dart version 2.9.0 (build 2.9.0-19.0.dev 7e72c9ae7e)


[✓] Android toolchain - develop for Android devices (Android SDK version 30.0.0)
    • Android SDK at /Users/tahatesser/Code/sdk
    • Platform android-30, build-tools 30.0.0
    • ANDROID_HOME = /Users/tahatesser/Code/sdk
    • Java binary at: /Applications/Android
      Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build
      1.8.0_242-release-1644-b3-6222593)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 11.5)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Xcode 11.5, Build version 11E608c
    • CocoaPods version 1.9.3

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] Android Studio (version 4.0)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin version 47.0.2
    • Dart plugin version 193.7361
    • Java version OpenJDK Runtime Environment (build
      1.8.0_242-release-1644-b3-6222593)

[✓] VS Code (version 1.46.1)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.12.1

[✓] Connected device (4 available)
    • SM M305F      • 32003c30dc19668f • android-arm64  • Android 10 (API 29)
    • macOS desktop • macos            • darwin-x64     • Mac OS X 10.15.5
      19F101
    • Web Server    • web-server       • web-javascript • Flutter Tools
    • Chrome        • chrome           • web-javascript • Google Chrome
      83.0.4103.116

• No issues found!

Still not fixed, currently not able to create persistent bottom sheet, with correctly working SafeArea inside.

Scaffold.of(context).showBottomSheet(... is broken and SafeArea doesn't work in it
showModalBottomSheet(... works as expected and allows SafeArea to be used inside

Is anyone looking into this?

A much simpler approach, just take the Window Object from WidgetBinding instance, and use MediaQueryData.fromWindow(WidgetsBinding.instance.window).padding.top;
this gives you the padding required, now just place whatever widget you want in a container, with the margin :)

How is this 18 months old and still not fixed?

It will be fixed or not, wasting time due to searching solution but there is no solution and still using work-around.

That is my code->

showModalBottomSheet(
backgroundColor: Colors.transparent,
isScrollControlled: true,
context: context,
builder: (_) => Padding(
padding:
EdgeInsets.only(top: MediaQuery.of(context).padding.top),
child: Container(color: Colors.indigo, child: Column()),
));

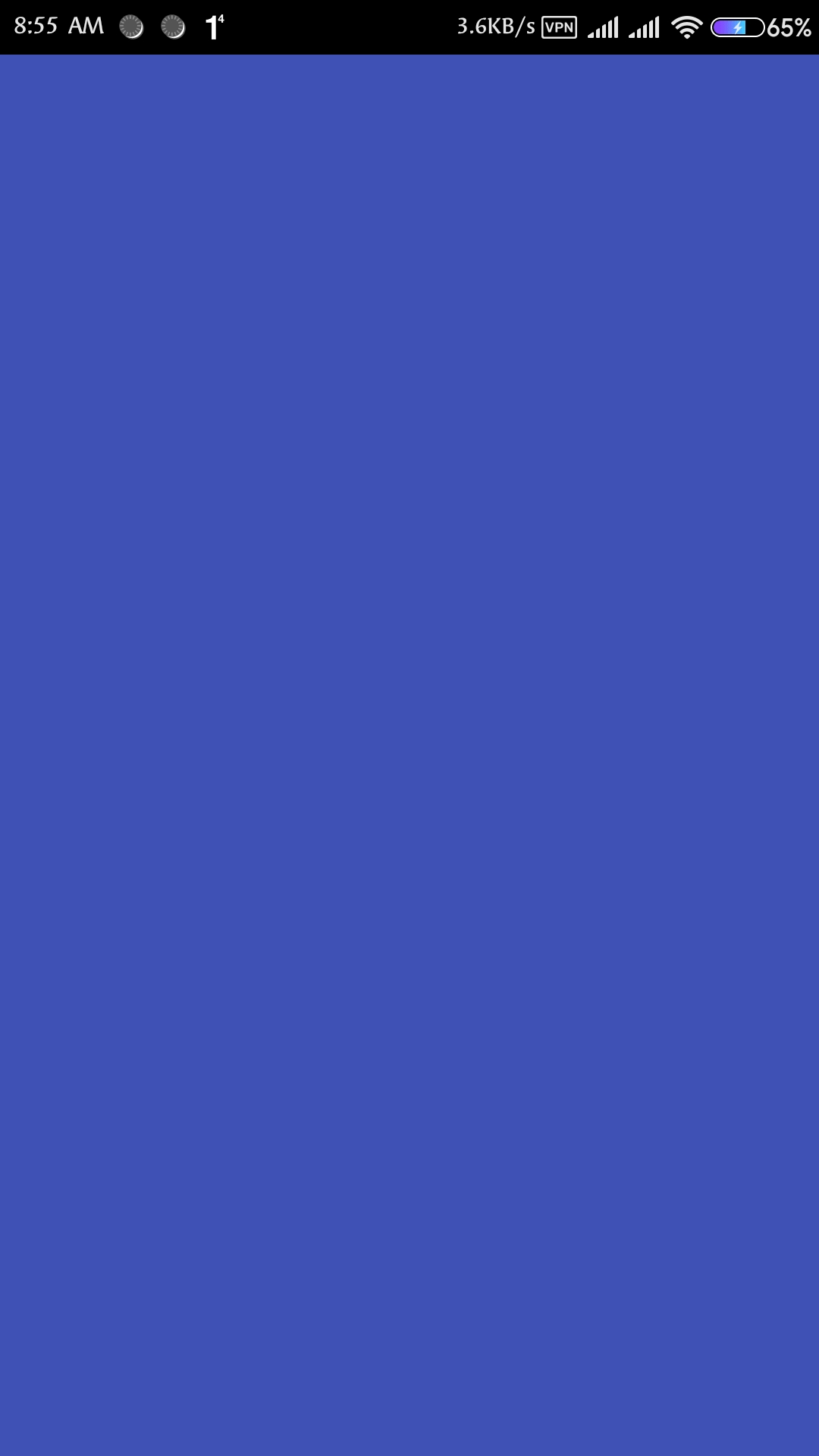

You may not actually need a scrollable bottom sheet if you want it to take up the whole screen.

Depending on your use case, this might do the trick: Ineractive Example

Naviagator.of(context).push(
  PageRouteBuilder(
    pageBuilder: (context, animation, secondaryAnimation) => Page2(),
    transitionsBuilder: (context, animation, secondaryAnimation, child) {
      var begin = Offset(0.0, 1.0);
      var end = Offset.zero;
      var curve = Curves.ease;

      var tween = Tween(begin: begin, end: end).chain(CurveTween(curve: curve));

      return SlideTransition(
        position: animation.drive(tween),
        child: YourWidget(),
      );
    },
  )
);

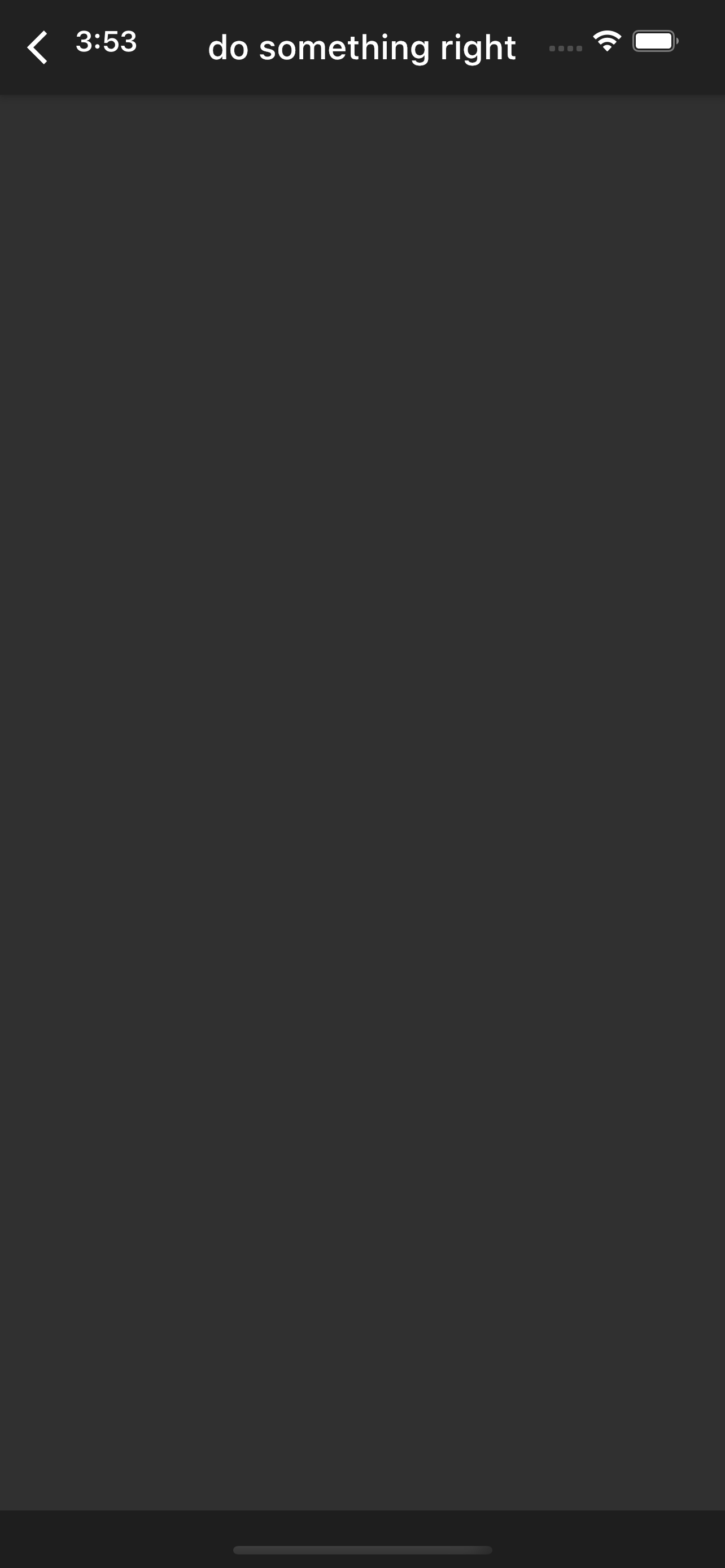

I can at least find work around for content in the body. I have found 0 work arounds for the appBar.

void _createProjectToDo(BuildContext context) {
    showModalBottomSheet(
      backgroundColor: Colors.transparent,
      isScrollControlled: true,
      enableDrag: false,
      isDismissible: false,
      context: context,
      builder: (context) => SafeArea(
        child: Scaffold(
          appBar: AppBar(
            title: Text('do something right'),
          ),
        ),
      ),
    );
  }

This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of flutter doctor -v and a minimal reproduction of the issue.
