Suggestion: CupertinoSliverNavigationBar allow forcing condensed title

Use case

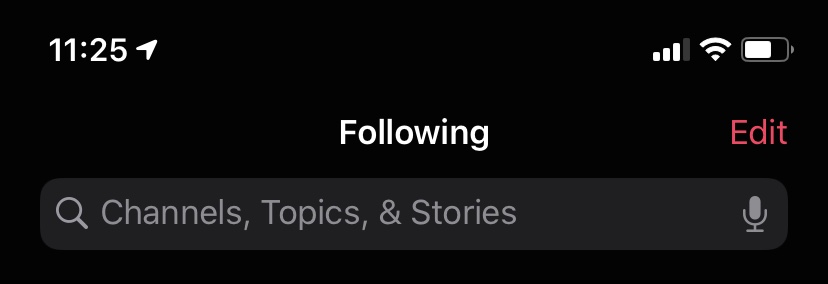

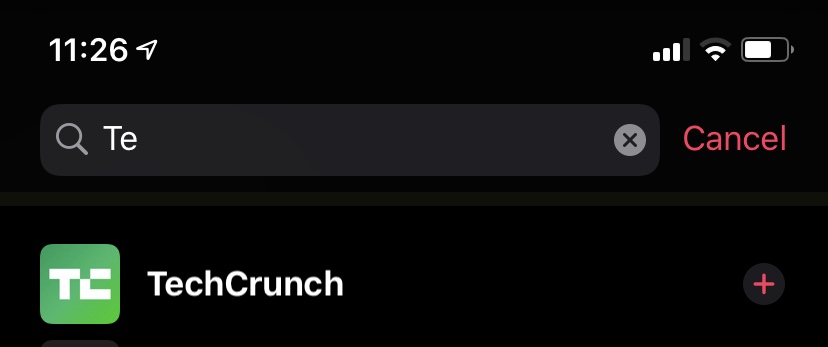

See: iOS 13 Settings app search, App Store Search, or News app's Following tab search.

While searching and viewing results, the title is hidden.

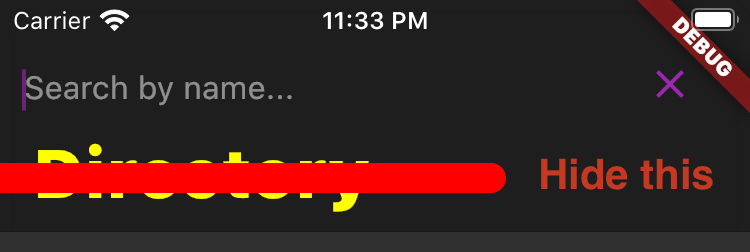

My thoughts were something like this:

  Widget _buildSliverBar(BuildContext context) {
    return CupertinoSliverNavigationBar(
      middle: _isSearching
          ? TextField(
              autofocus: true,
              controller: _filter,
              decoration: InputDecoration(
                  hintText: 'Search by name...', border: InputBorder.none),
            )
          : null,
      largeTitle: _isSearching ? null : _buildTitle(),
      trailing: IconButton(
        icon: Icon(_isSearching ? Icons.clear : Icons.search),
        onPressed: () {
          setState(() {
            _isSearching = !_isSearching;
            if (!_isSearching) {
              _resetTitle();
            }
          });
        },
      ),
    );
  }

Alternatives: The built-in iOS apps that I mentioned probably actually behave by hiding the title bar and having a separate pinned search bar, e.g. SliverPersistentHeader. SliverPersistentHeader, however, doesn't seem to be very easily extensible.

SliverAppBar has a bottom option for easily appending a widget as well as allowing flexibleSpace (analogous to largeTitle) to be set to null, while placing widgets in title (analogous to middle).

Proposal

Proposal:

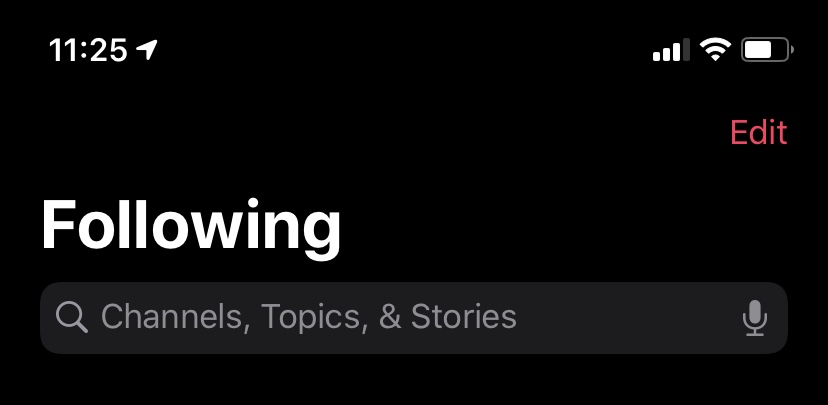

Apple News app

Perhaps a more flexible way to implement this would be to publicly expose the large bool and allow the user to specify false to force a condensed title?

As an example: cpboyd@972b591

I made some basic necessary changes to getting this to work, including those related to calculating the components.

large basically allows you to specify false to force a condensed title.

The native Messages has a good example of this. In the all messages page, the navigation bar is always collapsed. CupertinoSliverNavigationBar should have this option too. 👍

I've been investigating this behavior in stock iOS apps. So far, it looks like when the search bar is tapped/focused, it rises (or autoscrolls) to the collapsed navigation bar. The search bar becomes the middle, the 'cancel' button becomes the trailing, while there is no leading:

collapsed.search.bar.mov

I wonder if after #18103 is completed (and there is a CupertinoSliverNavigationBar.search constructor), we can internally bake in that on tap/on focused behavior and modify the collapsed navigation bar as needed.

Playing around with it a little more, I'm increasingly thinking that it is a hero animation between the route with the CupertinoSliverNavigationBar.search and a new route with a CupertinoNavigationBar (with a CupertinoSearchTextField middle and a CupertinoButton trailing). In this case, how do we bake this transition into the framework?

Made progress on the forward transition animation, but still having difficulties with the reverse:

Flutter

flutter.current.searchable.hero.mp4

Native

native.searchable.hero.mp4

Sample code

import 'package:flutter/cupertino.dart';

/// Flutter code sample for [CupertinoSliverNavigationBar].

class SliverNavBarApp extends StatelessWidget {
  const SliverNavBarApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const CupertinoApp(
      theme: CupertinoThemeData(brightness: Brightness.light),
      home: SliverNavBarExample(),
    );
  }
}

class SliverNavBarExample extends StatefulWidget {
  const SliverNavBarExample({super.key});

  @override
  State<SliverNavBarExample> createState() => _SliverNavBarExampleState();
}

class _SliverNavBarExampleState extends State<SliverNavBarExample> {
  @override
  Widget build(BuildContext context) {
    return CupertinoPageScaffold(
      child: CustomScrollView(
        slivers: <Widget>[
          CupertinoSliverNavigationBar(
            stretch: true,
            transitionBetweenRoutes: false,
            leading: const Icon(CupertinoIcons.person_2),
            largeTitle: const Text('Large Title'),
            trailing: const Icon(CupertinoIcons.add_circled),
            bottom: _NavigationBarSearchField(
              onTap: () {
                Navigator.of(context).push(
                  PageRouteBuilder(
                    pageBuilder: (context, animation1, animation2) =>
                        const NextPage(),
                    transitionsBuilder:
                        (context, animation, secondaryAnimation, child) {
                      var tween =
                          Tween(begin: const Offset(0.0, 0.1), end: Offset.zero)
                              .chain(CurveTween(curve: Curves.ease));
                      return SlideTransition(
                        position: animation.drive(tween),
                        child: child,
                      );
                    },
                    transitionDuration: const Duration(milliseconds: 500),
                    reverseTransitionDuration:
                        const Duration(milliseconds: 500),
                  ),
                );
              },
            ),
          ),
          const ItemList(),
        ],
      ),
    );
  }
}

class NextPage extends StatelessWidget {
  const NextPage({super.key});

  @override
  Widget build(BuildContext context) {
    return CupertinoPageScaffold(
      navigationBar: CupertinoNavigationBar(
        transitionBetweenRoutes: false,
        automaticallyImplyLeading: false,
        middle: _NavigationBarSearchField(onTap: () {}),
        trailing: CupertinoButton(
          padding: const EdgeInsets.all(0.0),
          child: const Text('Cancel'),
          onPressed: () {
            Navigator.pop(context);
          },
        ),
      ),
      child: const CustomScrollView(
        slivers: <Widget>[ItemList()],
      ),
    );
  }
}

class _NavigationBarSearchField extends StatelessWidget
    implements PreferredSizeWidget {
  const _NavigationBarSearchField({required this.onTap});

  static const double searchFieldHeight = 35.0;
  final VoidCallback onTap;

  @override
  Widget build(BuildContext context) {
    return Hero(
      tag: 'hero-search',
      child: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 8.0, vertical: 0.0),
        child: SizedBox(
            height: searchFieldHeight,
            child: CupertinoSearchTextField(
              onTap: onTap,
            )),
      ),
    );
  }

  @override
  Size get preferredSize => const Size.fromHeight(searchFieldHeight);
}

// A placeholder SliverList of 50 items.
class ItemList extends StatelessWidget {
  const ItemList({
    super.key,
    this.itemCount = 50,
  });

  final int itemCount;

  @override
  Widget build(BuildContext context) {
    return SliverList(
      delegate: SliverChildBuilderDelegate(
        (BuildContext context, int index) {
          return CupertinoFormRow(
            child: CupertinoListTile(
              title: Text('Item $index'),
            ),
          );
        },
        childCount: itemCount,
      ),
    );
  }
}

Support CupertinoSliverNavigationBar.search with condensed large title (

This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of flutter doctor -v and a minimal reproduction of the issue.
