Ink appears to bleed through IndexedStack #59963

Closed
Closed
Ink appears to bleed through IndexedStack#59963
Labels
P2Important issues not at the top of the work listfound in release: 3.3Found to occur in 3.3found in release: 3.7Found to occur in 3.7frameworkflutter/packages/flutter repository. See also f: labels.has reproducible stepsThe issue has been confirmed reproducible and is ready to work onp: material_uimaterial_ui package in flutter/packagesr: fixedIssue is closed as already fixed in a newer versionworkaround availableThere is a workaround available to overcome the issue

Description

@tvolkert
tvolkert
opened on Jun 22, 2020

Steps to reproduce

Run the following app:

import 'package:flutter/material.dart';

void main() {
  runApp(BugReport());
}

class BugReport extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Directionality(
      textDirection: TextDirection.ltr,
      child: Material(
        child: IndexedStack(
          index: 0,
          children: [
            Ink(width: 100, height: 100, decoration: BoxDecoration(color: Colors.black)),
            Ink(width: 50, height: 50, decoration: BoxDecoration(color: Colors.red)),
          ],
        ),
      ),
    );
  }
}

Expected behavior

Since the index of the IndexedStack is 0, you expect to only see a 100x100 black squareL

expected

Actual behavior

You see a 50x50 red square inside a 100x100 black square:

actual

This can be seen at http://dartpad.dev/b636ac9a0ba8f9f901c0ae872c785d54

Activity

  1. tvolkert
    added
    frameworkflutter/packages/flutter repository. See also f: labels.
    p: material_uimaterial_ui package in flutter/packages
    P1High-priority issues at the top of the work list
    on Jun 22, 2020

  2. tvolkert commented on Jun 22, 2020

    @tvolkert
    tvolkert
    on Jun 22, 2020
    ContributorAuthor

    @HansMuller says "It does seem like a bug. The InkDecoration that Ink creates is going to decorate it Material ancestor unconditionally, even if it's part of the tree doesn't get painted."

  3. xu-baolin commented on Jul 9, 2020

    @xu-baolin
    xu-baolin
    on Jul 9, 2020
    Member

    I would like to work on this issue and will submit a PR in a couple of days. @HansMuller

  4. HansMuller commented on Jul 9, 2020

    @HansMuller
    HansMuller
    on Jul 9, 2020
    Contributor

    @xu-baolin - sounds good, will look for your PR

  5. xu-baolin
    added 4 commits that reference this issue on Jul 10, 2020

    InkDecoration do not paint if it's part of the tree doesn't get paint…

    86fa181

    InkDecoration do not paint if it's part of the tree doesn't get paint…

    4c040ec

    InkDecoration do not paint if it's part of the tree doesn't get paint…

    be6cfb7

    InkDecoration do not paint if it's part of the tree doesn't get paint…

    1b3353d

  6. xu-baolin commented on Jul 10, 2020

    @xu-baolin
    xu-baolin
    on Jul 10, 2020
    Member

    @xu-baolin - sounds good, will look for your PR

    @HansMuller I have submitted the PR, #61216 please review it, thank you very much. ^_^

  7. xu-baolin
    added 4 commits that reference this issue on Jul 13, 2020

    Optimize the algorithm to reduce the number of loops. (flutter#59963)

    84c06a4

    Pervent child not at index of IndexedStack from painting by give it a…

    bd614da

    Perfect the test cases. (flutter#59963)

    d13bea1

    fix code style issues. (flutter#59963)

    86387e7

  8. 19 remaining items

  9. HansMuller
    added
    P2Important issues not at the top of the work list
    on Aug 18, 2022

  10. HansMuller commented on Aug 18, 2022

    @HansMuller
    HansMuller
    on Aug 18, 2022
    Contributor

    Lowering this to P4 because there's a workaround.

  11. danagbemava-nc commented on Jan 3, 2023

    @danagbemava-nc
    danagbemava-nc
    on Jan 3, 2023
    Member

    Reproducible on the latest versions of flutter.

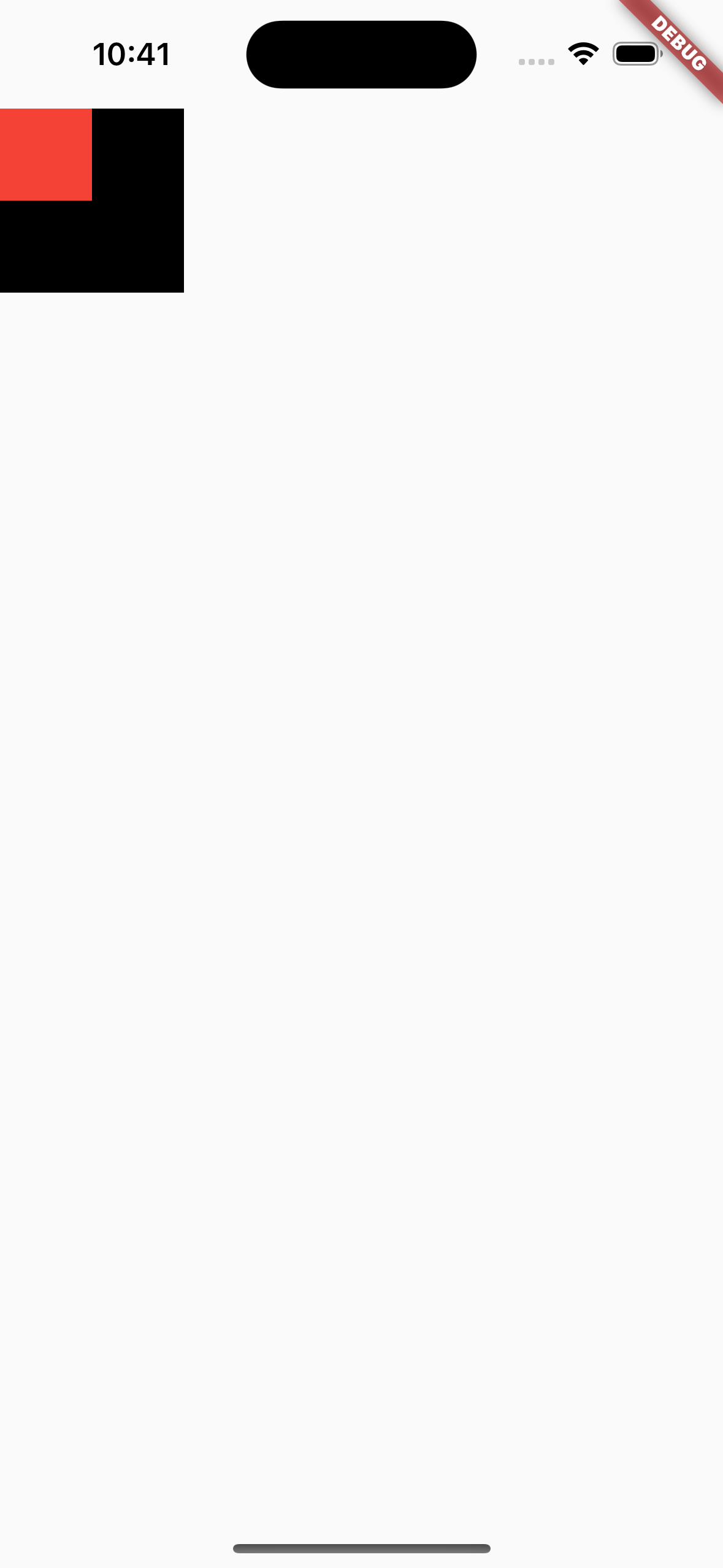

    screenshot
    updated sample
    import 'package:flutter/material.dart';

void main() {
  runApp(const BugReport());
}

class BugReport extends StatelessWidget {
  const BugReport({super.key});

  @override
  Widget build(BuildContext context) {
    return Directionality(
      textDirection: TextDirection.ltr,
      child: Material(
        child: SafeArea(
          child: IndexedStack(
            index: 0,
            children: [
              Ink(width: 100, height: 100, decoration: const BoxDecoration(color: Colors.black)),
              Ink(width: 50, height: 50, decoration: const BoxDecoration(color: Colors.red)),
            ],
          ),
        ),
      ),
    );
  }
}
    flutter doctor -v
    [✓] Flutter (Channel stable, 3.3.10, on macOS 13.1 22C65 darwin-arm, locale en-GB)
    • Flutter version 3.3.10 on channel stable at /Users/nexus/dev/sdks/flutter
    • Upstream repository https://github.com/flutter/flutter.git
    • Framework revision 135454af32 (3 weeks ago), 2022-12-15 07:36:55 -0800
    • Engine revision 3316dd8728
    • Dart version 2.18.6
    • DevTools version 2.15.0

[✓] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
    • Android SDK at /Users/nexus/Library/Android/sdk
    • Platform android-33, build-tools 33.0.0
    • Java binary at: /Applications/Android Studio.app/Contents/jre/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 11.0.13+0-b1751.21-8125866)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 14.1)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Build 14B47b
    • CocoaPods version 1.11.3

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] Android Studio (version 2021.3)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin can be installed from:
      🔨 https://plugins.jetbrains.com/plugin/9212-flutter
    • Dart plugin can be installed from:
      🔨 https://plugins.jetbrains.com/plugin/6351-dart
    • Java version OpenJDK Runtime Environment (build 11.0.13+0-b1751.21-8125866)

[✓] VS Code (version 1.74.2)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.56.0

[✓] Connected device (3 available)
    • M2007J20CG (mobile) • adb-5dd3be00-22GXB2._adb-tls-connect._tcp. • android-arm64  • Android 12 (API 31)
    • macOS (desktop)     • macos                                      • darwin-arm64   • macOS 13.1 22C65 darwin-arm
    • Chrome (web)        • chrome                                     • web-javascript • Google Chrome 108.0.5359.124

[✓] HTTP Host Availability
    • All required HTTP hosts are available

• No issues found!

    [!] Flutter (Channel master, 3.7.0-13.0.pre.138, on macOS 13.1 22C65 darwin-arm64, locale en-GB)
    • Flutter version 3.7.0-13.0.pre.138 on channel master at /Users/nexus/dev/sdks/flutters
    ! Warning: `flutter` on your path resolves to /Users/nexus/dev/sdks/flutter/bin/flutter, which is not inside your current Flutter SDK checkout at /Users/nexus/dev/sdks/flutters. Consider adding /Users/nexus/dev/sdks/flutters/bin to the front of your path.
    ! Warning: `dart` on your path resolves to /Users/nexus/dev/sdks/flutter/bin/dart, which is not inside your current Flutter SDK checkout at /Users/nexus/dev/sdks/flutters. Consider adding /Users/nexus/dev/sdks/flutters/bin to the front of your path.
    • Upstream repository https://github.com/flutter/flutter.git
    • Framework revision b938dc13df (24 hours ago), 2023-01-02 05:47:23 -0500
    • Engine revision 472e34cbbc
    • Dart version 3.0.0 (build 3.0.0-76.0.dev)
    • DevTools version 2.20.0
    • If those were intentional, you can disregard the above warnings; however it is recommended to use "git" directly to perform update checks and upgrades.

[✓] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
    • Android SDK at /Users/nexus/Library/Android/sdk
    • Platform android-33, build-tools 33.0.0
    • Java binary at: /Applications/Android Studio.app/Contents/jre/Contents/Home/bin/java
    • Java version OpenJDK Runtime Environment (build 11.0.13+0-b1751.21-8125866)
    • All Android licenses accepted.

[✓] Xcode - develop for iOS and macOS (Xcode 14.1)
    • Xcode at /Applications/Xcode.app/Contents/Developer
    • Build 14B47b
    • CocoaPods version 1.11.3

[✓] Chrome - develop for the web
    • Chrome at /Applications/Google Chrome.app/Contents/MacOS/Google Chrome

[✓] Android Studio (version 2021.3)
    • Android Studio at /Applications/Android Studio.app/Contents
    • Flutter plugin can be installed from:
      🔨 https://plugins.jetbrains.com/plugin/9212-flutter
    • Dart plugin can be installed from:
      🔨 https://plugins.jetbrains.com/plugin/6351-dart
    • Java version OpenJDK Runtime Environment (build 11.0.13+0-b1751.21-8125866)

[✓] VS Code (version 1.74.2)
    • VS Code at /Applications/Visual Studio Code.app/Contents
    • Flutter extension version 3.56.0

[✓] Connected device (3 available)
    • M2007J20CG (mobile) • adb-5dd3be00-22GXB2._adb-tls-connect._tcp. • android-arm64  • Android 12 (API 31)
    • macOS (desktop)     • macos                                      • darwin-arm64   • macOS 13.1 22C65 darwin-arm64
    • Chrome (web)        • chrome                                     • web-javascript • Google Chrome 108.0.5359.124

[✓] HTTP Host Availability
    • All required HTTP hosts are available

! Doctor found issues in 1 category.
  12. danagbemava-nc
    added
    found in release: 3.3Found to occur in 3.3
    workaround availableThere is a workaround available to overcome the issue
    found in release: 3.7Found to occur in 3.7
    and removed
    found in release: 1.21Found to occur in 1.21
    on Jan 3, 2023

  13. darkstarx commented on Mar 5, 2023

    @darkstarx
    darkstarx
    on Mar 5, 2023 · Hidden as off-topic

  14. tvolkert commented on Mar 14, 2023

    @tvolkert
    tvolkert
    on Mar 14, 2023
    ContributorAuthor

    FYI I have a prototype of how I might go about solving this -- #122585

    @xu-baolin interested in your thoughts since it's a different design than your original solution (which I just tried again and breaks dozens of tests inside Google projects).

  15. tvolkert commented on Mar 15, 2023

    @tvolkert
    tvolkert
    on Mar 15, 2023
    ContributorAuthor

    Ok, this is fixed in #122585 (still in review)

  16. tvolkert commented on Mar 25, 2023

    @tvolkert
    tvolkert
    on Mar 25, 2023
    ContributorAuthor

    Fixed

  17. tvolkert
    closed this as completedon Mar 25, 2023
  18. danagbemava-nc
    added
    r: fixedIssue is closed as already fixed in a newer version
    on Mar 27, 2023

  19. github-actions commented on Apr 10, 2023

    @github-actions
    github-actionsbot
    on Apr 10, 2023

    This thread has been automatically locked since there has not been any recent activity after it was closed. If you are still experiencing a similar issue, please open a new bug, including the output of flutter doctor -v and a minimal reproduction of the issue.

  20. github-actions
    locked as resolved and limited conversation to collaborators on Apr 10, 2023
