Remove the FocusScopeNode in the navigator by gspencergoog · Pull Request #109702 · flutter/flutter

gspencergoog · 2022-08-17T16:52:59Z

Description

There have been a number of issues over the years having to do with the FocusScopeNode that the Navigator introduces.
This PR attempts to remove that node and replace it with a focus node, and instead add one around the topmost Navigator in WidgetsApp.

Related Issues

Not able to navigate using tab key when using nested Navigators #109624

Tests

Modified some existing tests to match the new reality.

gspencergoog · 2022-08-17T22:57:01Z

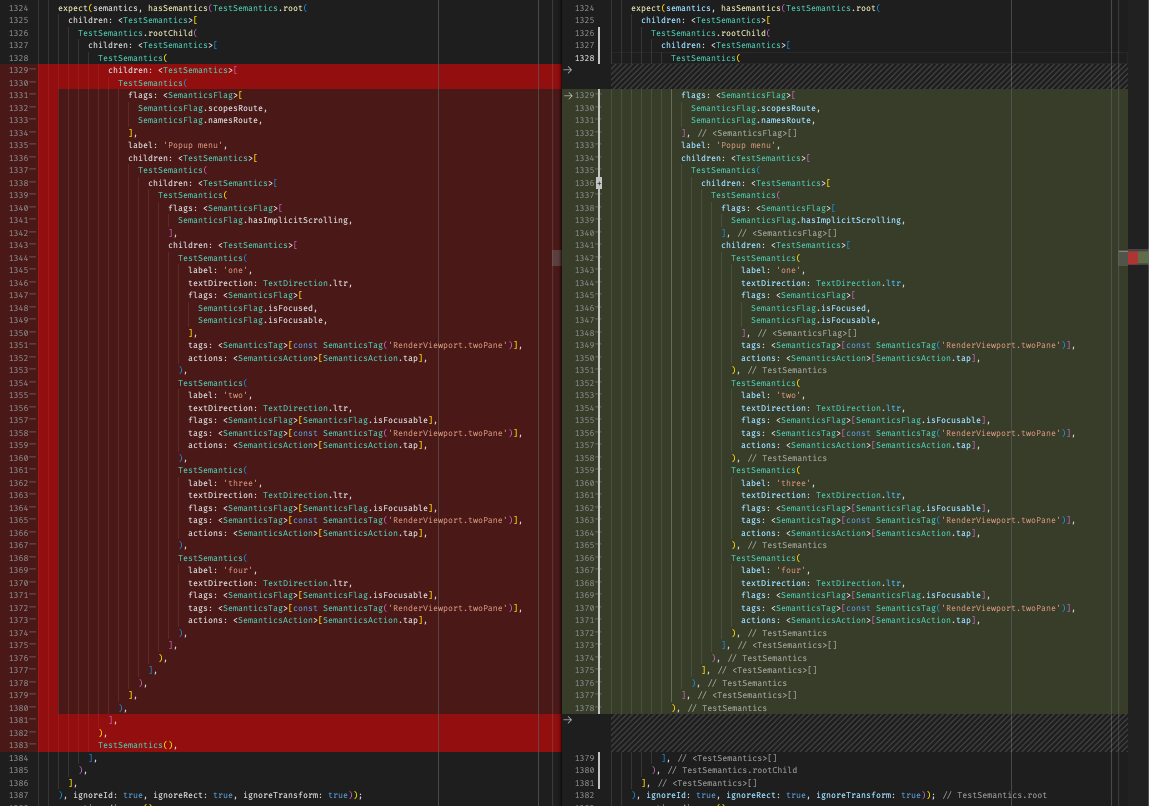

GitHub did an amazingly poor job of diffing this. It's basically removing an empty node at the end, and an empty layer in the tree.

I recommend reviewing this with githubs "Hide whitespace" option. Makes it a lot better!

gspencergoog · 2022-08-17T23:00:22Z

The huge downside (upside?) of this PR is that it will invalidate many, many, golden tests that use the Semantics Debugger.

goderbauer

/cc @chunhtai for Navigator

goderbauer · 2022-08-18T16:50:40Z

Wondering if this could now have any unintended side effects in the nested navigator case where the enclosingScope could be a distant ancestor of the Navigator?

Just requesting focus on the navigator.focusNode is not enough here?

No, because if a nested navigator pops a route and comes back, then requesting focus on the enclosing scope will refocus the previously focused item in the scope.

goderbauer · 2022-08-18T16:51:37Z

I recommend reviewing this with githubs "Hide whitespace" option. Makes it a lot better!

goderbauer · 2022-08-18T16:52:47Z

Line 239 above probably also needs updating?

gspencergoog · 2022-08-18T23:56:35Z

From what I can tell, the only tests failing in the Google tests are golden tests which use the semantics debugger. So either traversal isn't tested well enough (and it probably isn't), or this change doesn't break things.

goderbauer · 2022-08-19T17:59:27Z

Let's go with this approach then and make a note about refactoring FocusScope at some point. We discussed adding a flag to FocusTraversalGroup to keep focus inside that group and introducing a new FocusHistory widget that manage, well, focus history. Both would replace FocusScope, which we could then deprecate.

goderbauer

LGTM after that one remaining doc comment is addressed.

gspencergoog · 2022-08-20T00:52:13Z

Here's the issue I filed to address the refactor. #109896

…09702)

* e997ab8 Roll Flutter Engine from 00bb6056cb80 to e70ba6a3a32d (1 revision) (flutter/flutter#110003) * 6540ae0 Add clipBehavior to Card+InkWell example (flutter/flutter#109872) * 3dcc6ed Roll Plugins from cd586d7 to 89fe2a2 (4 revisions) (flutter/flutter#110008) * c43e44b Roll Flutter Engine from e70ba6a3a32d to 0d182ddb0d1d (1 revision) (flutter/flutter#110009) * 6a1fc9e InputDecorator iconColor/prefixIconColor/suffixIconColor (flutter/flutter#109988) * d4eaf01 Roll Flutter Engine from 0d182ddb0d1d to 60707621bf9b (1 revision) (flutter/flutter#110011) * 77b41ba Remove the FocusScopeNode in the navigator (flutter/flutter#109702) * 4b361cc Roll Flutter Engine from 60707621bf9b to ca7acb34c5bc (2 revisions) (flutter/flutter#110015) * a8d6649 Roll Flutter Engine from ca7acb34c5bc to 38d2213d99ac (1 revision) (flutter/flutter#110026) * 717d92e Roll Flutter Engine from 38d2213d99ac to 9513c34aabcd (2 revisions) (flutter/flutter#110033) * 7e12b37 Deprecate 2018 text theme parameters (flutter/flutter#109817) * ff803fd 0fd04455f deprecate pushPhysicalLayer (flutter-team-archive/engine#35566) (flutter/flutter#110036) * 484a884 Bump github/codeql-action from 2.1.19 to 2.1.20 (flutter/flutter#110044) * aa9b29b Roll Flutter Engine from 0fd04455fd77 to 7252c6406b2c (3 revisions) (flutter/flutter#110042) * d79a3d7 Remove most benchmarks of SkSL warmup (flutter/flutter#110040) * 7e33cd5 Fixed leading button size on app bar (flutter/flutter#110043) * 129fa76 Moving ios benchmark tests to prod. (flutter/flutter#110049) * 111a7d0 [platform_view]retry launch if it fails to launch for xcuitest (flutter/flutter#110030) * 2d8067e Roll Flutter Engine from 7252c6406b2c to 258c580a83c6 (3 revisions) (flutter/flutter#110051) * 328545e Roll Flutter Engine from 258c580a83c6 to ca48808d06f3 (1 revision) (flutter/flutter#110054) * 720010c Roll Flutter Engine from ca48808d06f3 to 8c29591b89a3 (10 revisions) (flutter/flutter#110078) * abfba69 Roll Flutter Engine from 8c29591b89a3 to c9d0a012817d (1 revision) (flutter/flutter#110087) * 6d65551 Roll Plugins from 89fe2a2 to 3a5e6f3 (4 revisions) (flutter/flutter#110092) * 8027842 Copy artifacts to `applicationBinaryPath` when specified for build+test separation (flutter/flutter#109879) * c865207 Document tristate value (flutter/flutter#110106) * c8569b6 Revert "Fixed leading button size on app bar (#110043)" (flutter/flutter#110103) * 9ef5017 Update open_jdk version `version:11` (flutter/flutter#110110) * c0c3874 Revert "Reland: Set IconButton.visualDensity default to VisualDensity.standard (#109432)" (flutter/flutter#110119) * 0f9206c Roll Flutter Engine from c9d0a012817d to 8cc02dc73e95 (11 revisions) (flutter/flutter#110121) * 34b4066 Roll Flutter Engine from 8cc02dc73e95 to 9dee4b9e4b8f (1 revision) (flutter/flutter#110122)

Part of #139243 Deprecated in #109702 The replacement for focusScopeNode is focusNode.enclosingScope

* e997ab8 Roll Flutter Engine from 00bb6056cb80 to e70ba6a3a32d (1 revision) (flutter/flutter#110003) * 6540ae0 Add clipBehavior to Card+InkWell example (flutter/flutter#109872) * 3dcc6ed Roll Plugins from cd586d7 to 89fe2a2 (4 revisions) (flutter/flutter#110008) * c43e44b Roll Flutter Engine from e70ba6a3a32d to 0d182ddb0d1d (1 revision) (flutter/flutter#110009) * 6a1fc9e InputDecorator iconColor/prefixIconColor/suffixIconColor (flutter/flutter#109988) * d4eaf01 Roll Flutter Engine from 0d182ddb0d1d to 60707621bf9b (1 revision) (flutter/flutter#110011) * 77b41ba Remove the FocusScopeNode in the navigator (flutter/flutter#109702) * 4b361cc Roll Flutter Engine from 60707621bf9b to ca7acb34c5bc (2 revisions) (flutter/flutter#110015) * a8d6649 Roll Flutter Engine from ca7acb34c5bc to 38d2213d99ac (1 revision) (flutter/flutter#110026) * 717d92e Roll Flutter Engine from 38d2213d99ac to 9513c34aabcd (2 revisions) (flutter/flutter#110033) * 7e12b37 Deprecate 2018 text theme parameters (flutter/flutter#109817) * ff803fd 0fd04455f deprecate pushPhysicalLayer (flutter-team-archive/engine#35566) (flutter/flutter#110036) * 484a884 Bump github/codeql-action from 2.1.19 to 2.1.20 (flutter/flutter#110044) * aa9b29b Roll Flutter Engine from 0fd04455fd77 to 7252c6406b2c (3 revisions) (flutter/flutter#110042) * d79a3d7 Remove most benchmarks of SkSL warmup (flutter/flutter#110040) * 7e33cd5 Fixed leading button size on app bar (flutter/flutter#110043) * 129fa76 Moving ios benchmark tests to prod. (flutter/flutter#110049) * 111a7d0 [platform_view]retry launch if it fails to launch for xcuitest (flutter/flutter#110030) * 2d8067e Roll Flutter Engine from 7252c6406b2c to 258c580a83c6 (3 revisions) (flutter/flutter#110051) * 328545e Roll Flutter Engine from 258c580a83c6 to ca48808d06f3 (1 revision) (flutter/flutter#110054) * 720010c Roll Flutter Engine from ca48808d06f3 to 8c29591b89a3 (10 revisions) (flutter/flutter#110078) * abfba69 Roll Flutter Engine from 8c29591b89a3 to c9d0a012817d (1 revision) (flutter/flutter#110087) * 6d65551 Roll Plugins from 89fe2a2 to 3a5e6f3 (4 revisions) (flutter/flutter#110092) * 8027842 Copy artifacts to `applicationBinaryPath` when specified for build+test separation (flutter/flutter#109879) * c865207 Document tristate value (flutter/flutter#110106) * c8569b6 Revert "Fixed leading button size on app bar (#110043)" (flutter/flutter#110103) * 9ef5017 Update open_jdk version `version:11` (flutter/flutter#110110) * c0c3874 Revert "Reland: Set IconButton.visualDensity default to VisualDensity.standard (#109432)" (flutter/flutter#110119) * 0f9206c Roll Flutter Engine from c9d0a012817d to 8cc02dc73e95 (11 revisions) (flutter/flutter#110121) * 34b4066 Roll Flutter Engine from 8cc02dc73e95 to 9dee4b9e4b8f (1 revision) (flutter/flutter#110122)

In flutter#109702, Navigator's internal `FocusScopeNode` was removed and hoisted into `WidgetsApp`, but only inside the `else if (_usesNavigator)` branch. As a result, apps using `WidgetsApp.router` (including `MaterialApp.router` and `CupertinoApp.router` with `RouterConfig` or `RouterDelegate`) lacked the enclosing `FocusScope(debugLabel: 'Navigator Scope', autofocus: true)`. On Flutter Web with semantics enabled (`ensureSemantics()`), when widgets such as `Autocomplete` show an `OverlayPortal`, the semantics compiler reparents the route node under a newly synthesized container node. Without an enclosing `FocusScope`, moving the route's semantics node detaches it from its previous DOM parent, triggering a native browser blur event on any focused `<input>`. The text field loses focus immediately after typing a single character, causing the options overlay to dismiss. This change wraps `routing` in `FocusScope` whenever `routing != null` in `WidgetsApp`, ensuring consistent focus scope hierarchy across `_usesNavigator`, `_usesRouterWithConfig`, and `_usesRouterWithDelegates`. Fixes flutter#187561 ## Pre-launch Checklist - [x] I read the [Contributor Guide] and followed the process outlined there for submitting PRs. - [x] I read the [AI contribution guidelines] and understand my responsibilities, or I am not using AI tools. - [x] I read the [Tree Hygiene] wiki page, which explains my responsibilities. - [x] I read and followed the [Flutter Style Guide], including [Features we expect every widget to implement]. - [x] I signed the [CLA]. - [x] I listed at least one issue that this PR fixes in the description above. - [x] I updated/added relevant in-code documentation (doc comments with `///`). - [x] If this PR introduces a new feature or capability, I created and linked a website documentation issue or PR in [flutter/website] (or verified none is needed). - [x] I added new tests to check the change I am making, or this PR is [test-exempt]. - [x] I followed the [breaking change policy] and added [Data Driven Fixes] where supported. - [x] All existing and new tests are passing.  [Contributor Guide]: https://github.com/flutter/flutter/blob/main/docs/contributing/Tree-hygiene.md#overview [AI contribution guidelines]: https://github.com/flutter/flutter/blob/main/docs/contributing/Tree-hygiene.md#ai-contribution-guidelines [Tree Hygiene]: https://github.com/flutter/flutter/blob/main/docs/contributing/Tree-hygiene.md [test-exempt]: https://github.com/flutter/flutter/blob/main/docs/contributing/Tree-hygiene.md#tests [Flutter Style Guide]: https://github.com/flutter/flutter/blob/main/docs/contributing/Style-guide-for-Flutter-repo.md [Features we expect every widget to implement]: https://github.com/flutter/flutter/blob/main/docs/contributing/Style-guide-for-Flutter-repo.md#features-we-expect-every-widget-to-implement [CLA]: https://cla.developers.google.com/ [flutter/tests]: https://github.com/flutter/tests [flutter/website]: https://github.com/flutter/website [breaking change policy]: https://github.com/flutter/flutter/blob/main/docs/contributing/Tree-hygiene.md#handling-breaking-changes [Discord]: https://github.com/flutter/flutter/blob/main/docs/contributing/Chat.md [Data Driven Fixes]: https://github.com/flutter/flutter/blob/main/docs/contributing/Data-driven-Fixes.md
