Editor hover: markdown links should use their own custom scheme

Robo (@deepak1556)

Steps to Reproduce:

Set "enable-browser-code-loading": "bypassHeatCheck" in ~/argv.json and restart
Clone https://github.com/svsool/vscode-memo
yarn
comment out the line that reads Image preview is currently not supported
Run
open a markdown document with a reference to a PNG in the workspace
retype it as memo notation (e.g. [[images/1_54/macOS-universal-download.png]])
hover over it

=> 🐛 it looks like the resulting image tag uses file protocol and not vscode-file protocol:

We need to make sure to use the FileAccess utility to properly convert to a URL that the browser can handle.

Slightly related: Robo (@deepak1556) expressed some interest that the generated HTML from markdown uses a custom scheme so that we can distinguish markdown content from our core content. I had to push a34297a now as a workaround.

To clarify, I am proposing to keep vscode-file only deal with resources for the core, we create a separate scheme (ex: vscode-hover) to load resources for the hover html. That way we can keep the restrictions around vscode-file stricter and additionally there is no added cost to having multiple schemes in an app, offering cleaner separation for resource loading.

After looking a bit closer into what the extension does, I realised that the extension is actually returning file:// URIs as hover contents from here:

https://github.com/svsool/vscode-memo/blob/5dc4fe035b7c4474d29c6cd24afd33f5e13a1a6e/src/features/ReferenceHoverProvider.ts#L56

As such, we probably just take the contents as is and rely on the fact that we currently still support to embedd file URIs for rendering.

But going forward this will not be possible anymore, because once we set our origin to vscode-file://, Chrome disallows any file:// URIs to be loaded.

I think we almost have to detect absolute URIs that are file based and rewrite them to a custom scheme like Deepak suggests to resolve this going forward.

We already use the FileAccess-util for uris that have been transformed and it should be easy to use them for all, tho I am unsure how a unified scheme can be achieved because some need the special "this is from a remote" scheme already

roblourens

// roblourens unsure what the snippet below is for but it will be broken once we don't use the file-scheme anymore

vscode/src/vs/base/browser/markdownRenderer.ts

Lines 105 to 108 in 5539322


           const hrefAsUri = URI.parse(href);

           if (options.baseUrl && hrefAsUri.scheme === Schemas.file) { // absolute or relative local path, or file: uri

           	href = resolvePath(options.baseUrl, href).toString();

           }

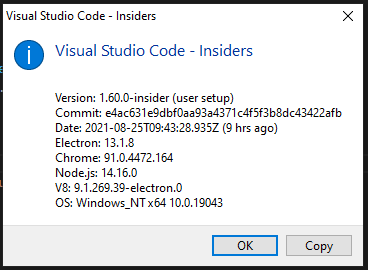

I migrated from Vs Code to Vs Code Insiders in build 1.60 with all extensions updated and the problem remains.

Matt Bierner (@mjbvz)

This has likely regressed with 1888070 (which undoes the original fix). Matt Bierner (@mjbvz) I am leaving this up to you since you did the inital fix

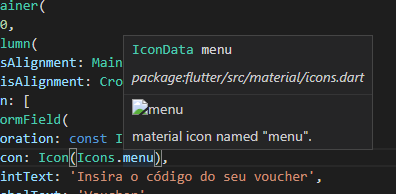

Mistakenly checked in a revert of the original fix while fixing another bug. Should be fixed again now. Just tested with Flutter and confirmed the icons show up

Make sure we always try rewriting domUris in markdown strings

Fix microsoft#119786
