[Material] Expand BottomNavigationBar API (reprise) by HansMuller · Pull Request #28159 · flutter/flutter

HansMuller · 2019-02-19T19:45:28Z

These changes come from @johnsonmh in #27698.
This PR also incorporates work done by @hyochan in #22956.

Expand the BottomNavigationBar API.

Add the ability to customize the following fields on BottomNavigationBars:

backgroundColor
elevation
selectedItemColor
unselectedItemColor
selectedFontSize
unselectedFontSize
showSelectedLabels
showUnselectedLabels

Combining these fields allows users to create BottomNavigationBars that match the current Material Design specifications, as well as support other requested features.

The default behavior of BottomNavigationBar is still the same:

`Fixed`	`Shifting`

Custom font size

Using custom selectedFontSize and unselectedFontSize, the BottomNavigationBar now still animates properly.

`Fixed`	`Shifting`

Custom Coloring

Using custom backgroundColor,selectedItemColor, and unselectedItemColor, the BottomNavigationBar can be customized.

Note: shifting BottomNavigationBars respect the color of their BottomNavigationBarItems rather than use the BottomNavigationBar's backgroundColor, this preserves the "ripple" behavior.

`Fixed`	`Shifting`

Hide/Show labels

Being able to optionally hide/show selected and unselected labels on fixed BottomNavigationBars allows us to get behavior described in the Material spec.


`showSelectedLabels && showUnselectedLabels`
`showSelectedLabels && !showUnselectedLabels`
`!showSelectedLabels && !showUnselectedLabels`

Closes #23178
Closes #27414
Closes #17099
Closes #25895
Closes #22882
Closes #27739
Closes #27651

googlebot · 2019-02-19T19:45:31Z

So there's good news and bad news.

👍 The good news is that everyone that needs to sign a CLA (the pull request submitter and all commit authors) have done so. Everything is all good there.

😕 The bad news is that it appears that one or more commits were authored or co-authored by someone other than the pull request submitter. We need to confirm that all authors are ok with their commits being contributed to this project. Please have them confirm that here in the pull request.

Note to project maintainer: This is a terminal state, meaning the cla/google commit status will not change from this state. It's up to you to confirm consent of all the commit author(s), set the cla label to yes (if enabled on your project), and then merge this pull request when appropriate.

Googlers can find more info about SignCLA and this PR by following this link.

gspencergoog · 2019-02-19T21:36:50Z

Couldn't you wrap this in a ReverseAnimation instead?

I think so, however I find this (I didn't write this) easier to understand.

Really? Because this seems a lot clearer to me (at least it would be to a newbie):

Suggested change

opacity: Tween<double>(begin: 1.0, end: 0.0).animate(animation),

opacity: ReverseAnimation(animation),

The documentation for ReverseAnimation says:

Using a ReverseAnimation is different from simply using a Tween with a begin of 1.0 and an end of 0.0 because the tween does not change the status or direction of the animation.

So what are the implications of changing the animation's direction or status (he asked rhetorically). While I'm scratching my head the person reading Tween<double>(begin: 1.0, end: 0.0) has already moved on.

Well, but you could just as well scratch your head about what the .animate on the Tween does. Or the fact that a Tween isn't an animation, but you're assigning to one.

It's OK to keep it as a Tween, it's not a big deal, but I disagree that it's clearer.

Co-authored-by: MH Johnson <[email protected]> Co-authored-by: Hyo Chan Jang <[email protected]>

DeRealMorgan · 2019-03-07T18:12:26Z

How can I get this update to my flutter regularly ? I am running the newest version of the flutter plugin.

gisinator · 2019-05-15T10:01:18Z

Thank you guys for these new features, they look very promising. According to the docs:
https://docs.flutter.io/flutter/material/BottomNavigationBar-class.html
I can already use those, e.g. showSelectedLabels.

But when I try them in my AndroidStudio, I get "isnt defined" error. So, to me it looks like I cannot use them yet.

What am I missing? :)

frey1esm · 2019-05-16T14:25:09Z

Thank you guys for these new features, they look very promising. According to the docs:
https://docs.flutter.io/flutter/material/BottomNavigationBar-class.html
I can already use those, e.g. showSelectedLabels.

But when I try them in my AndroidStudio, I get "isnt defined" error. So, to me it looks like I cannot use them yet.

What am I missing? :)

@gisinator Make sure your settings are under BottomNavigationBar and not BottomNavigationBarItem.

gisinator · 2019-05-16T14:34:52Z

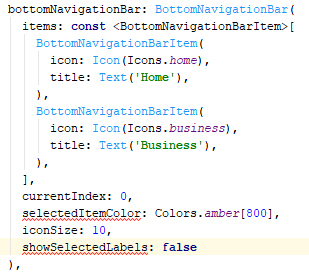

thank you, @frey1esm , but I am afraid that's exactly what I did:

Or did I do anything wrong? :)

frey1esm · 2019-05-16T14:44:49Z

Or did I do anything wrong? :)

Looks good from here. What is your Flutter version?

Also, this won't work with the CupertinoTabBar theme AFAIK.

gisinator · 2019-05-16T14:53:33Z

Thank you sir, looks like this was the issue :)

Until now I thought that Android Studio took care of updating the whole stuff. Every now and then I agreed on upating AndroidStudio, Dart, Emulator and so on.

Didnt know I had to update Flutter version by myself and just went from 1.21 to 1.54-hotfix.2
Now those parameters work as expected.

Thank you @frey1esm , your help was appreciated :)
